Many facilities can upgrade an electron beam accelerator for higher power, but not every system will support this change. The potential for improving electron beam irradiation equipment depends on several factors, including the original design, equipment age, and manufacturer support. Engineers often examine state-of-the-art electron beam systems to guide decisions about possible upgrades.
Key Takeaways
- Assess the original design and condition of your electron beam accelerator to determine upgrade feasibility.
- Consult with manufacturers for technical support and guidance to ensure safe and effective upgrades.
- Prioritize maintenance of key components to extend the lifespan of your equipment before pursuing upgrades.
- Implement structured planning and expert consultation to navigate the complexities of high-energy upgrades.
- Understand the financial implications of upgrades, including capital and operational costs, to make informed decisions.
Upgrade Feasibility Factors
Design Specifications

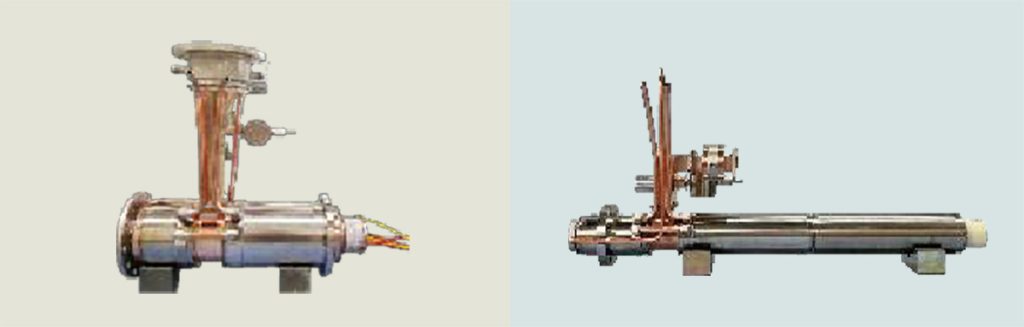

The original design of an electron beam accelerator determines the possibility of a high-energy upgrade. Engineers examine the maximum voltage, current, and beam power that the equipment can handle. Some accelerators feature modular designs, which allow for easier upgrades. Others have fixed configurations that limit changes. Facilities often compare their systems to advanced models, such as the Continuous Electron Beam Accelerator Facility (CEBAF), which has undergone several upgrades to reach higher power levels. Electron beam irradiation equipment with robust structural components and flexible electronics can support more ambitious upgrades. In contrast, older designs may require significant modifications or replacement of core parts.
Note: Systems built with future expansion in mind offer greater flexibility for upgrades. Designs that include extra cooling capacity or oversized power supplies can simplify the process.
Equipment Age and Condition
The age and condition of an electron beam accelerator play a critical role in upgrade feasibility. Older machines may need extensive maintenance before any high-energy upgrade. Engineers inspect wear and tear on components, especially those exposed to high voltages and radiation. Refurbishment often includes replacing parts that degrade over time. The table below shows typical maintenance requirements for electron beam irradiation equipment:
| Component | Maintenance Requirement |
|---|---|
| Titanium foil beam window | Change after more than six months of in-service use. |
| Rubber gasket O-rings | Routine replacement required in user serviceable designs. |
| Accelerator filaments | Estimated 10,000 hours of service use under normal conditions. |
| Sealed tube systems | Must be returned to the manufacturer periodically for refurbishment. |
Facilities must address these needs before pursuing a high-energy upgrade. Clinical linear accelerators, used in hospitals, often undergo regular maintenance and refurbishment. This practice extends their lifespan and prepares them for future upgrades. Plasma accelerator technology, although newer, also requires careful assessment of component durability.
Manufacturer Support
Manufacturer support is essential for any upgrade. Companies that build electron beam accelerators and electron beam irradiation equipment provide technical guidance, spare parts, and software updates. Some manufacturers actively participate in upgrade projects. For example, Motion Solutions contributed high-tech undulators for the LCLS-II upgrade, which improved the Linac Coherent Light Source. Manufacturer involvement ensures that upgrades meet safety standards and maintain system reliability. Facilities benefit from access to original documentation and engineering expertise. Without manufacturer support, upgrades become riskier and may void warranties.
- Manufacturers often offer:
- Engineering consultations
- Custom upgrade kits
- Software compatibility checks
- Safety certification assistance
Facilities should always consult the manufacturer before planning a high-energy upgrade. This step helps avoid technical pitfalls and ensures compliance with regulatory requirements.
Upgrade Paths for Electron Beam Accelerator
Power Supply and Cavities

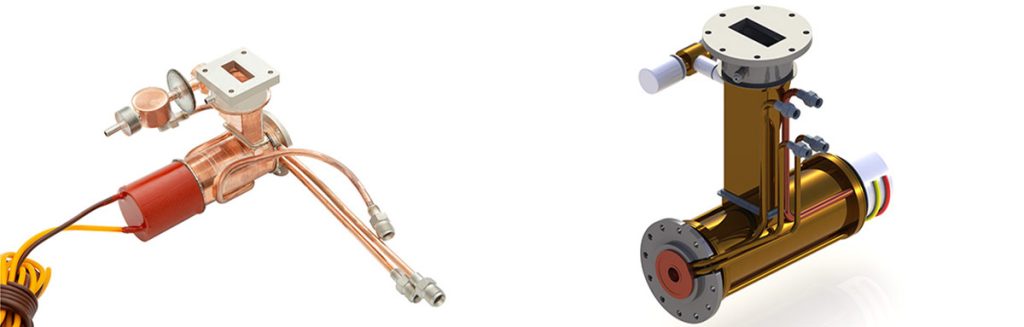

Facilities often pursue a high-energy upgrade by improving power supplies and accelerator cavities. Engineers replace older systems with solid-state power supplies, which enhance efficiency and reduce costs. Multiple beam klystrons and confined flow multiple electron beam guns allow for higher power extraction while lowering voltage requirements. These upgrades support performance increase in both research and clinical settings. The table below shows how these improvements impact power output:
| Upgrade Description | Impact on Power Output |
|---|---|
| Multiple beam klystrons | Higher power extraction, lower current density |
| Confined flow multiple beam guns | Operation below 200 kV, enables solid-state supplies |
| Solid-state power supplies | Lower costs, improved efficiency |
Energy recovery linacs (ERLs) represent a significant upgrade path. They recycle energy, allowing electrons to gain energy multiple times and enabling higher luminosities with less power consumption.
Cooling and Beamline Components
A high-energy upgrade requires advanced cooling and beamline components. Engineers develop innovative cooling methods, such as using electron beams to extract heat from ion beams. Compact radiofrequency acceleration technology replaces standard direct-current methods, improving efficiency. Precision alignment and monitoring maintain low energy spread in ions. Electron beam irradiation equipment benefits from these upgrades, which support higher power and reliability.
- Cooling upgrades include:
- Matching electron pulses to ion bunches
- Cooling two beams moving in opposite directions
- Maintaining precision alignment
Injector and Electron Source Improvements

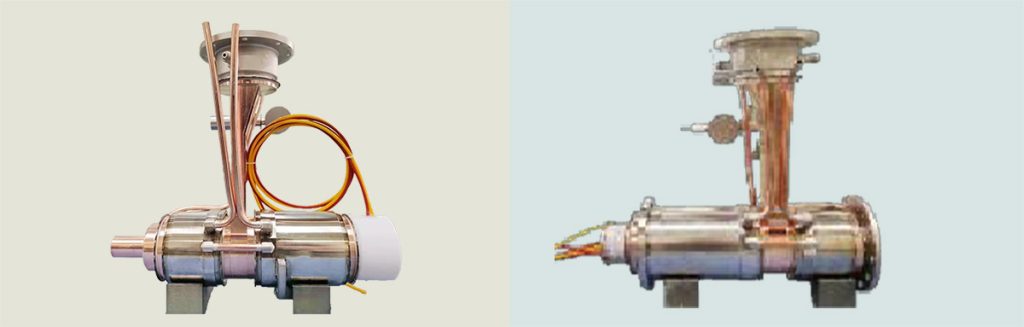

Injector optimization plays a key role in upgrades. Engineers focus on improving beam phase space rather than simply increasing current. Independent settings for injector sections ensure 100% transmission. High-quality electron beams with femtosecond pulse duration and kilo-amp peak current advance technologies like Thomson x-ray sources. Plasma accelerator advancements produce high-energy and high-brightness electron bunches, supporting compact and efficient upgrades.
Control System Updates
Modern control systems drive upgrades in electron beam accelerator. Digital and automated systems enhance control and monitoring. Innovations such as chicanes with deflection magnets improve beam quality and energy distribution. These updates increase efficiency and productivity in electron beam irradiation equipment. Research teams, like those at DESY, use two-step correction processes to align energy and lengthen pulse duration, supporting high-energy upgrade goals.
Upgrades in research and clinical settings enable higher doses for cancer treatment, more precise radiation delivery, and improved treatment efficiency.
Upgrade Limitations and Risks
Technical Constraints
Technical constraints often limit the potential for an upgrade. Radiation effects on electronic and magnetic systems present critical challenges. Ionizing radiation can damage accelerator components, especially electronic systems. Engineers must design effective shielding and carefully place components to protect them. Facilities require specialized knowledge for operation and maintenance. Highly trained personnel increase operational costs. The substantial footprint of electron beam facilities, including radiation shielding, creates space challenges for manufacturers. Regulatory requirements for radiation safety demand specialized building designs, which complicate installation and raise costs.
- Key technical constraints include:
- Radiation protection and shielding design
- Increased operational costs due to specialized workforce
- Space limitations for facility expansion
- Component vulnerability to ionizing radiation
Safety and Compliance
Safety and compliance requirements impact every upgrade project. Teams develop transition roadmaps to address operational disruptions and delays during the shift to modern electron beam accelerators. Collaboration with industry and government stakeholders ensures compliance and operational efficiency. Facilities benefit from business plans that provide resources for regulatory compliance assistance and workforce training. Regulatory standards require strict adherence to safety protocols, which can delay or restrict a high-energy upgrade.
Safety and compliance remain top priorities for any facility planning an upgrade. Failure to meet regulatory standards can result in fines or shutdowns.
Cost Factors
Cost factors play a major role in upgrade decisions. Capital costs for an accelerator plant can reach USD 4M. Operational costs may amount to USD 1M per year at full capacity. For a Rhodotron with 700 kW beam power, capital costs rise to USD 10M, with annual operational costs around USD 5M. An EBWT accelerator has a capital cost of approximately USD 8M and treatment costs of 0.14 USD per cubic meter per kilogray. Facilities must weigh these expenses against the expected benefits of an upgrade.
- Typical cost factors:
- High capital investment for new equipment
- Ongoing operational expenses
- Specialized treatment costs
Facilities must carefully assess technical, safety, and financial risks before pursuing an upgrade.
Upgrade Assessment Steps
Initial Evaluation
Facilities begin the upgrade process with a thorough initial evaluation. Teams review the current performance of the electron beam accelerator and identify any limitations. They check the age and condition of major components. Staff members collect data on power output, cooling efficiency, and control system reliability. They also examine maintenance records to spot recurring issues. This evaluation helps facilities decide if a high-energy upgrade is possible or if replacement offers a better solution.
Tip: Accurate records and clear documentation make the evaluation process faster and more reliable.
Expert Consultation
After the initial evaluation, facilities consult with experts who bring specialized knowledge to the project. These professionals help identify technical challenges and recommend solutions. When selecting experts, facilities consider several important qualifications:
- Experience in medical device sterilization
- Expertise in accelerator physics
- Knowledge in economic analysis
- Current private sector experience in medical device sterilization technologies
- Background in polymer chemistry and materials science
- Understanding of regulatory compliance and international regulatory issues
A team with these skills can guide facilities through complex upgrade decisions and ensure compliance with safety standards.
Planning and Execution
Once experts provide recommendations, facilities move to the planning and execution stage. Teams develop a detailed roadmap for the upgrade. They set clear goals, timelines, and budgets. Staff members coordinate with manufacturers to secure parts and technical support. During execution, they monitor progress and address any unexpected challenges. Regular communication between engineers, safety officers, and management keeps the project on track. After completing the upgrade, teams test the system to confirm improved performance and safety.
Facilities that follow a structured assessment process increase their chances of a successful upgrade and minimize risks.
Conclusion
- Many electron beam accelerators and electron beam irradiation equipment support upgrades for higher power.
- Careful assessment helps facilities avoid technical and safety risks.
- Professional consultation provides tailored advice and ensures compliance with regulations.
Facilities benefit from expert guidance and thorough planning. Safety and reliability remain top priorities during any upgrade process.
FAQ
Can Facilities Upgrade Any Electron Beam Accelerator for Higher Power?
Not every accelerator supports a power upgrade. The original design, age, and manufacturer support determine upgrade potential. Facilities should review technical documentation and consult experts before planning any changes.
What Are the Main Risks of Upgrading Electron Beam Equipment?
Upgrades can introduce technical challenges, safety risks, and compliance issues. Facilities may face increased costs and downtime. Proper planning and expert consultation help reduce these risks.
How Long Does an Upgrade Typically Take?
Upgrade timelines vary. Simple component swaps may take weeks. Major system overhauls can require several months. Manufacturer support and part availability affect the schedule.
Does Upgrading Affect Regulatory Compliance?
Yes. Any upgrade may require new safety certifications and regulatory reviews. Facilities must follow local and international standards to maintain compliance.
What Benefits Can a Successful Upgrade Provide?
A successful upgrade can increase beam power, improve efficiency, and extend equipment lifespan. Facilities may achieve higher throughput and better treatment results.
