This guide helps readers quickly spot and fix problems in electron beam irradiator dose mapping. Accurate dose delivery ensures effective sterilization by targeting harmful microbes while protecting product quality. Studies show that the total dose is the main factor for successful microbial inactivation. Lower doses can still achieve strong sterilization results if delivered precisely. Dose accuracy also preserves important chemical properties in products. Routine calibration and systematic checks help maintain the right dose every time.
Key Takeaways
- Accurate dose mapping ensures effective sterilization and product quality.
- Routine calibration and checks prevent dose mapping issues.
- Proper dosimeter placement is crucial for accurate dose readings.
- Monitoring the dose uniformity ratio helps maintain sterilization quality.
- Staff training and checklists improve dose mapping accuracy.
Electron Beam Irradiator and Dose Mapping
Dose Mapping Basics

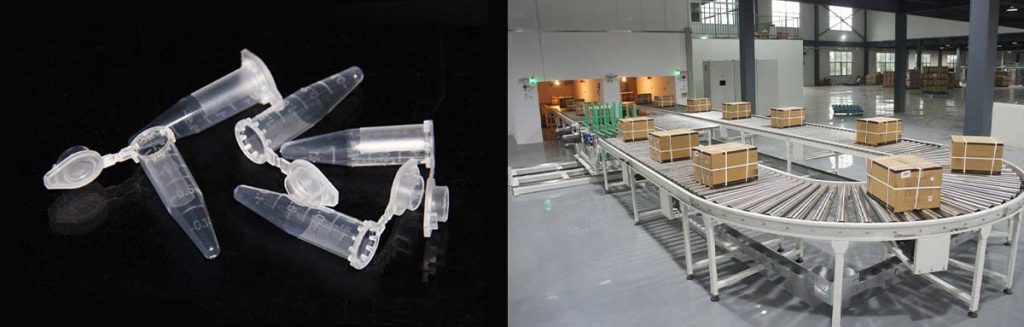

Dose mapping forms the foundation of quality assurance in electron beam irradiator. Operators use electron beam irradiation equipment to deliver a precise dose to products. They place dosimeters at strategic points to identify minimum and maximum dose zones. This process checks that the minimum sterilization dose is achieved while protecting the product from excessive exposure. The mapping process must follow standards such as ISO 11137 and FDA requirements. These standards ensure that the dose mapping process validates the sterilization method and maintains safety. Operators repeat mapping after any major change in equipment or process to confirm reproducibility. The choice of dosimeter and proper calibration of equipment play a critical role in accurate dose measurement. Product and packaging configuration also affect dose distribution and uniformity, so operators must assess factors like density and depth of penetration.
Tip: Strong process controls and routine calibration of electron beam irradiation equipment help prevent dose mapping issues and maintain consistent results.
Importance in Sterilization

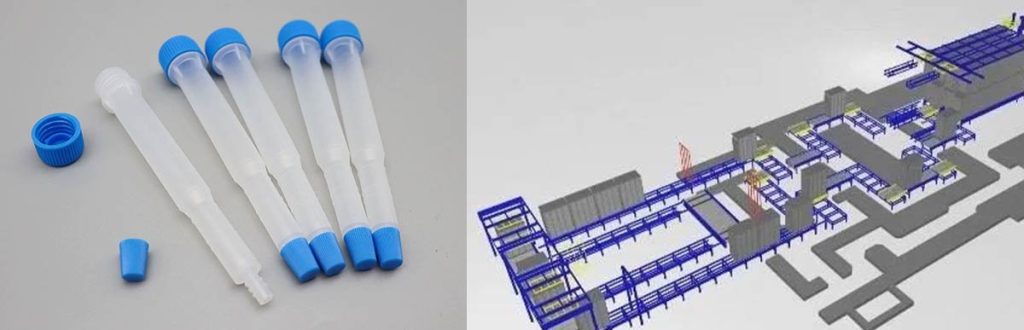

Sterilization relies on accurate dose mapping to ensure safety and product quality. The minimum dose must reach the target sterility assurance level, while the maximum dose must not damage the product. Regulatory bodies require manufacturers to establish and communicate both minimum and maximum dose values. They also require dose audits before production and at regular intervals. Dose mapping verifies that the electron beam irradiator delivers the correct dose distribution throughout the product load. Uniformity in dose delivery prevents under- or over-processing, which can lead to ineffective sterilization or product degradation. E-beam sterilization depends on mapping to maintain compliance and protect consumers.
Key Terms and Concepts
Understanding key terms helps operators manage dose mapping and troubleshoot uniformity issues. The table below defines important concepts:
| Term | Definition |
|---|---|
| Dose Uniformity Ratio | The ratio of the maximum dose (Dmax) to the minimum dose (Dmin), indicating the permissible dose range for a product. |
| Minimum Dose (Dmin) | The least amount of radiation required to ensure the target sterility assurance level (SAL) is met, determined by factors such as the desired SAL and the microbiological cleanliness of the product. |
| Maximum Dose (Dmax) | The highest amount of radiation that can be applied without damaging the product, established through destructive testing to find a safe maximum value. |
Operators use the dose uniformity ratio to monitor the effectiveness of electron beam irradiation equipment. A low ratio means better uniformity and safer sterilization. E-beam processes require careful mapping and regular checks of this ratio to avoid dose mapping issues. Equipment calibration, proper dosimeter placement, and understanding of dose distribution all contribute to successful sterilization.
Identifying Dose Mapping Issues
Signs of Out-of-Spec Dose
Operators often notice dose mapping problems when dose readings fall outside the validated range. Inconsistent dose readings signal that the electron beam irradiator may not deliver the correct dose for effective sterilization. These signs include minimum dose values below the required threshold or maximum dose values above product safety limits. When the dose uniformity ratio exceeds acceptable limits, uniformity suffers and product quality may decline. Operators should watch for unexpected variations in dose distribution, as these can indicate mapping challenges or equipment malfunctions. Regular review of mapping data helps catch anomalies early and maintain dose accuracy.
Dose Uniformity Ratio Problems
The dose uniformity ratio plays a key role in dose mapping. This ratio compares the highest and lowest dose values within a product load. A high ratio means poor uniformity, which can lead to under- or over-sterilization. E-beam processes require a low ratio to ensure even dose distribution and consistent sterilization. Operators must monitor the ratio during each mapping cycle. If the ratio rises, they should check equipment calibration, dosimeter placement, and product configuration. Dose mapping issues often stem from changes in equipment parameters or product arrangement. Maintaining a stable ratio supports effective sterilization and product safety.
Early Warning Indicators
Early detection of dose mapping issues prevents process failures. Operators can track several indicators to spot problems before they affect sterilization. The following table shows key early warning signs and how far in advance they may appear:
| Indicator Type | Description | Days Prior to Failure |
|---|---|---|
| Low-alarm (5) | Two out of three points greater than two standard deviations | 104 days (6 MV) |
| Low-alarm (5) | Two out of three points greater than two standard deviations | 116 days (15 MV) |
| Radial angle and position | Early warnings | 124 days |
Operators identified 46 potential failure modes in dose mapping. Five of these had a risk priority number above 100, showing higher risk. To reduce these risks, teams use checklists after equipment changes, robust radiation detectors, and automated quality assurance checks. Surface guidance during e-beam delivery also improves dose uniformity. The FMEA process helps teams prioritize which parameters to monitor by assigning risk scores to each failure mode. By acting on these early indicators, operators can address anomalies and maintain high sterilization quality.
Root Causes in Electron Beam Irradiator
Equipment Alignment and Calibration
Operators often encounter dose mapping challenges when equipment alignment and calibration fall short. The electron beam irradiator relies on precise cathode alignment and undamaged screen grids to maintain accurate dose delivery. Misalignment or lack of calibration can disrupt dose distribution and uniformity, leading to inconsistent dose readings and unexpected variations. The table below highlights how these factors affect dose accuracy:
| Evidence Point | Description |
|---|---|
| Loss of Lateral Charged Particle Equilibrium | Field dimensions smaller than electron range increase penumbra and cause dose deviations. |
| Volume Averaging Effect | Dosimeter readings may underestimate dose at the beam axis and overestimate at field edges. |
| Calibration Errors | Positioning inaccuracies can propagate errors up to 57.7%, especially near field edges. |
Operators must check equipment parameters regularly. Even a 1-cm positioning error can escalate calibration errors, affecting the dose uniformity ratio and overall sterilization quality.
Dosimeter Placement Errors
Incorrect dosimeter placement remains a leading cause of inaccurate dose mapping. Operators must avoid geometric misses and improper setup, which can introduce anomalies in dose readings and compromise effective sterilization. Common errors include:
- Incorrect wedge orientation
- Incorrect source-to-surface distance
- Incorrect photon energy
- Geometric misses due to setup errors
These mistakes can distort dose distribution and raise the dose uniformity ratio. Routine checks and staff training help prevent mapping issues and maintain product quality.
Product Configuration Effects
Product configuration plays a critical role in dose uniformity. Variations in product arrangement or density can cause inconsistent dose readings and complicate mapping. When individual products receive different doses, the dose uniformity ratio increases, making it harder to ensure effective sterilization. Operators should consider the full range of doses that maintain product functionality, not just the minimum passing dose. Adjusting product configuration can reduce mapping challenges and improve dose distribution.
Environmental and Operator Factors
Environmental conditions and operator actions also influence dose mapping. Temperature, humidity, and operator technique can affect dosimeter response and dose uniformity. Inadequate staff training or lack of process controls may introduce anomalies and mapping errors. Teams should monitor environmental parameters and follow strict protocols to support consistent dose delivery and maintain high sterilization standards.
Troubleshooting and Calibration Steps
Initial Assessment and Documentation
Operators begin troubleshooting by performing a thorough initial assessment. They review recent dose mapping data and compare it to validated dose ranges. They check for deviations in dose uniformity ratio and look for anomalies in dose distribution. Staff document all findings, including equipment settings, dosimeter placement, and product configuration. This documentation helps teams identify patterns and recurring issues. Operators also record environmental parameters and operator actions that may affect dose measurements. Accurate records support consistency and make it easier to address mapping challenges.
Note: Consistent documentation allows teams to track dose mapping trends and quickly spot changes that could impact product quality and sterility.
Calibration Procedures
Routine calibration remains essential for maintaining dose accuracy in electron beam irradiator. Operators follow best practices to ensure calibration accuracy and reliable dose measurements. They focus on achieving electronic equilibrium during calibration, which stabilizes dose delivery and supports uniformity. For low-energy beams below 40 keV, operators use PMMA layers to meet ISO 4037-3 standards. These layers play a crucial role in calibration for low-energy scenarios, while higher-energy beams require less adjustment. Teams calibrate equipment after any major change or maintenance to maintain dose mapping consistency.
- Operators verify calibration by:
- Checking cathode alignment and screen grid integrity
- Using PMMA layers for low-energy beams
- Confirming dosimeter placement and orientation
- Reviewing dose uniformity ratio after calibration
- Comparing dose mapping results with previous cycles
Routine calibration and maintenance help prevent dose mapping issues and support effective sterilization. Operators also verify dose at alternative radiation sources if primary equipment shows persistent anomalies.
Corrective Actions for Dose Issues
When dose mapping reveals out-of-spec results, operators take corrective actions to restore dose accuracy. They adjust equipment parameters, such as beam energy and alignment, to improve dose uniformity. Staff reposition dosimeters to eliminate placement errors and ensure accurate dose measurements. Teams may reconfigure product arrangement to optimize dose distribution and reduce the dose uniformity ratio. Operators address environmental factors by controlling temperature and humidity in the irradiation area. Staff receive additional training to reinforce proper mapping techniques and prevent future challenges.
Tip: Addressing anomalies quickly helps maintain product quality and sterility, reducing the risk of ineffective sterilization.
Re-Testing and Validation
After implementing corrective actions, operators re-test dose mapping to validate improvements. They follow protocols from Task Group 25 for clinical electron beam dosimetry, especially in the energy range of 5-25 MeV. Teams conduct acceptance testing and treatment planning for new accelerators. Operators compare ferrous sulphate dosimetry with ionization chambers to ensure reference dosimetry accuracy. The mean percentage difference between these methods is -0.5%, with a dispersion of 3.9%. Parallel-plate ionization chambers can substitute ferrous sulphate detectors for reliable dose measurements.
| Aspect | Details |
|---|---|
| Methodology | Comparison of ferrous sulphate dosimetry with ionization chambers for reference dosimetry |
| Findings | Mean percentage difference of -0.5% between dosimetry methods with a dispersion of 3.9% |
| Conclusion | Parallel-plate ionization chambers can accurately substitute ferrous sulphate detectors |
Operators validate dose mapping corrections by confirming that the dose uniformity ratio falls within acceptable limits. They document all re-testing results and update calibration records. Routine validation ensures ongoing consistency and supports effective sterilization.
Callout: Regular calibration, prompt corrective actions, and thorough validation help maintain high standards in electron beam irradiator. These steps protect product quality and sterility while minimizing mapping challenges.
Ensuring Dose Uniformity and Prevention
Routine Equipment Checks
Operators maintain dose uniformity by performing regular equipment checks. They inspect electron beam irradiator for alignment and calibration. These checks help prevent dose mapping issues and support consistent sterilization. Teams verify cathode position and screen grid condition. They also confirm that equipment parameters match validated settings. Routine inspections catch problems early and reduce the risk of uneven dose distribution. Operators use simulation tools to analyze dose mapping and identify areas with poor uniformity. These tools measure absorbed energy in different layers, showing that uniformity can reach 85% over the total sample volume. Regular monitoring ensures that equipment delivers the correct dose for effective sterilization.
Staff Training and Checklists
Staff training plays a key role in maintaining dose mapping accuracy. Operators learn how to place dosimeters correctly and follow established protocols. Training covers the characteristics of e-beam processes and how electron scattering affects dose distribution. Teams use checklists to guide each step of the mapping process. These checklists include equipment setup, dosimeter placement, and environmental controls. Staff review mapping results and address any issues that arise. Training and checklists help prevent errors and improve dose uniformity. Operators understand how geometry, density, and atomic composition influence dose mapping outcomes.
Monitoring Dose Uniformity Ratio
Monitoring the dose uniformity ratio is essential for ongoing compliance. Operators use simulation and statistical tools to track dose distribution. They analyze dose mapping data and compare ratios across different irradiation contexts. The following table shows typical dose uniformity ratio values in well-maintained e-beam processes:
| Context | Dose Uniformity Ratio (DUR) |
|---|---|
| Average DUR (e-beam) | 1.73 |
| Average DUR (acceptable for product) | 1.52 |
| Average DUR (not acceptable) | 2.40 |
| Average DUR (PQ dose mapping) | 1.80 |
| Average DUR (gamma radiation comparison) | 2.04 |
Operators aim for a ratio below 2.0 to ensure uniformity and product quality. They use statistical tolerance limits to estimate expected dose extremes and set process targets. The chart below compares dose uniformity ratios for various irradiation methods:
Effective monitoring of the dose uniformity ratio supports reliable sterilization and high product quality.
Conclusion
Operators address electron beam irradiator dose mapping challenges by following essential troubleshooting steps. They perform calibration, visualize dose mapping, optimize product arrangement, and conduct routine checks to maintain effective sterilization. Teams implement robust training programs and conduct regular audits to prevent dose accuracy problems. Staff ensure traceability and validate sterilization processes for every product. These actions help maintain consistent dose delivery and prevent sterilization failures. Operators who encounter persistent issues should consult experts for advanced support.
Expert consultation provides valuable guidance for complex dose mapping and sterilization problems.
FAQ
What Causes Dose Mapping Inaccuracies in Electron Beam Irradiator?
Several factors can cause dose mapping inaccuracies. Equipment misalignment, calibration errors, incorrect dosimeter placement, and changes in product configuration often lead to inconsistent dose readings. Environmental conditions and operator mistakes also contribute to mapping challenges.
How Often Should Operators Calibrate Electron Beam Irradiator?
Operators should calibrate electron beam irradiator routinely. Calibration is necessary after any major equipment change, maintenance, or process adjustment. Regular calibration ensures accurate dose delivery and supports effective sterilization.
Why Is the Dose Uniformity Ratio Important?
The dose uniformity ratio shows the difference between the highest and lowest dose in a product load. A low ratio means even dose distribution. This ratio helps operators ensure safe, effective sterilization without damaging products.
Can Operators Use Different Dosimeters for Dose Mapping?
Operators can use different dosimeters, but they must choose types that match the energy range and product characteristics. Proper calibration and placement are essential for accurate dose mapping results.
What Should Operators Do If Dose Mapping Results Are out of Spec?
Operators should review equipment settings, check dosimeter placement, and assess product configuration. They must correct any errors, recalibrate the system, and repeat dose mapping. Documentation of all actions supports process improvement.
