Electron Beam Sterilizer
EBM provide low energy, high energy and tailor-made electron beam sterilizer
Catalog: Electron Beam Sterilizer
What is electron beam sterilizer?
Electron beam sterilizer (also named as electron beam irradiation equipment ) is a system that uses high-energy electron beams or X-rays generated by electron accelerators to irradiate objects. This e beam sterilization equipment produces physical, chemical and biological effects on materials through irradiation with high-energy electron beams or X-rays to achieve the purpose of application processing.
Electron beam sterilizer application
Electron beam sterilizer has been widely used in many sectors for irradiation sterilization, such as:
Medical device
Food processing
Cosmetic product
Pharmaceutical
Health product
Waste water treatment
Scientific research
New material R&D

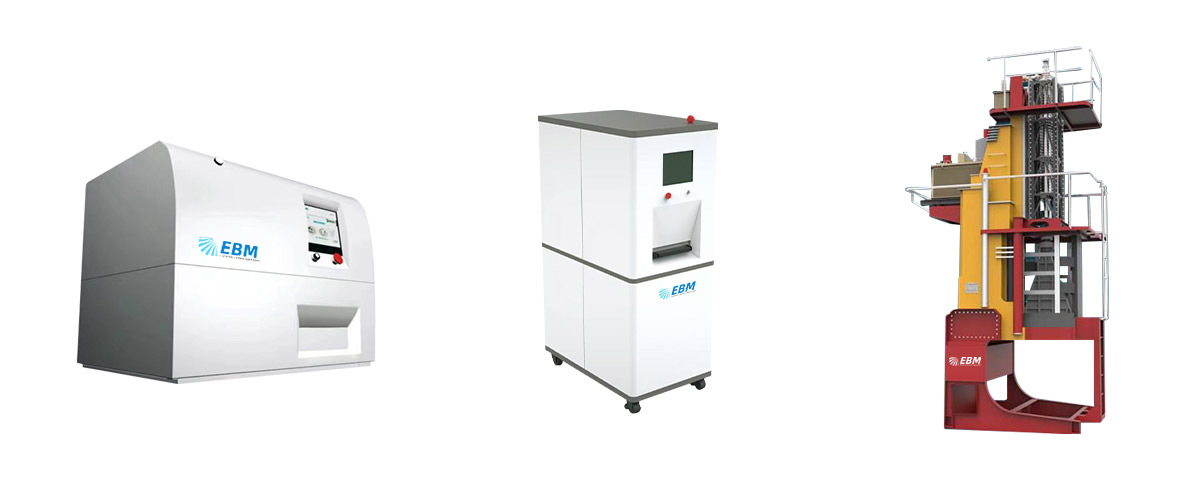

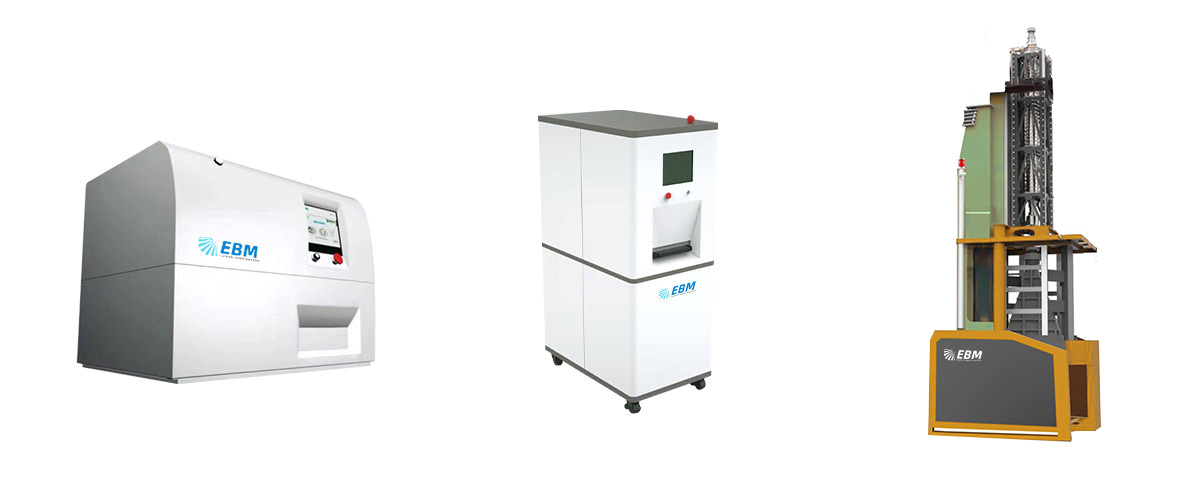

Type of electron beam sterilizer
Tabletop electron beam sterilizer
| Model | TMEB-120 | TMEB-160 | TMEB-200 |
| Voltage | 110V/220V, 50Hz | 110V/220V, 50Hz | 110V/220V, 50Hz |
| Power | 2000 W | 2000 W | 2000 W |
| Energy | 80 ~ 120 keV | 100 ~ 160 keV | 160 ~ 200 keV |
| Irradiation source | Electron beam | Electron beam | Electron beam |
| Chamber size | 300*210mm | 300*210mm | 300*210mm |
| Beam accuracy | 99% | 99% | 99% |
| Irradiation dose | 5-150kGy (adjustable) | 5-150kGy (adjustable) | 5-150kGy (adjustable) |
| Inhomogeneity | ≤3% | ≤3% | ≤3% |
| Irradiation security | Fully shielded, <1uSv/h | Fully shielded, <1uSv/h | Fully shielded, <1uSv/h |

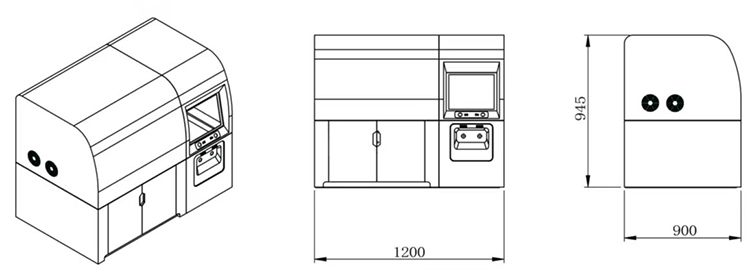

| Dimension(L*W*H) | 1200*900*945mm | 1200*900*945mm | 1200*900*945mm |
| Weight | 1,000kg | 1,000kg | 1,000kg |
| Penetration | 100um | 150um | 200um |
| Lead time | 3 -4 weeks | 3 -4 weeks | 3 -4 weeks |
Above data only for reference, maybe change according to final design and without notice.
Floor standing electron beam sterilizer
| Model | FMEB-120 | FMEB-160 | FMEB-200 |
| Voltage | 110V/220V, 50Hz | 110V/220V, 50Hz | 110V/220V, 50Hz |
| Power | 2000 W | 2000 W | 2000 W |
| Energy | 80 ~ 120 keV | 100 ~ 160 keV | 160 ~ 200 keV |
| Irradiation source | Electron beam | Electron beam | Electron beam |
| Chamber size | 300*210mm | 300*210mm | 300*210mm |
| Beam accuracy | 99% | 99% | 99% |
| Irradiation dose | 5-150kGy (adjustable) | 5-150kGy (adjustable) | 5-150kGy (adjustable) |
| Inhomogeneity | ≤3% | ≤3% | ≤3% |
| Irradiation security | Fully shielded, <1uSv/h | Fully shielded, <1uSv/h | Fully shielded, <1uSv/h |
| Dimension(L*W*H) | 1,500*750*1,900mm | 1,500*750*1,900mm | 1,500*750*1,900mm |
| Weight | 1,200kg | 1,200kg | 1,200kg |
| Penetration | 100um | 150um | 200um |
| Lead time | 3 - 4 weeks | 3 - 4 weeks | 3 - 4 weeks |
Above data only for reference, maybe change according to final design and without notice.

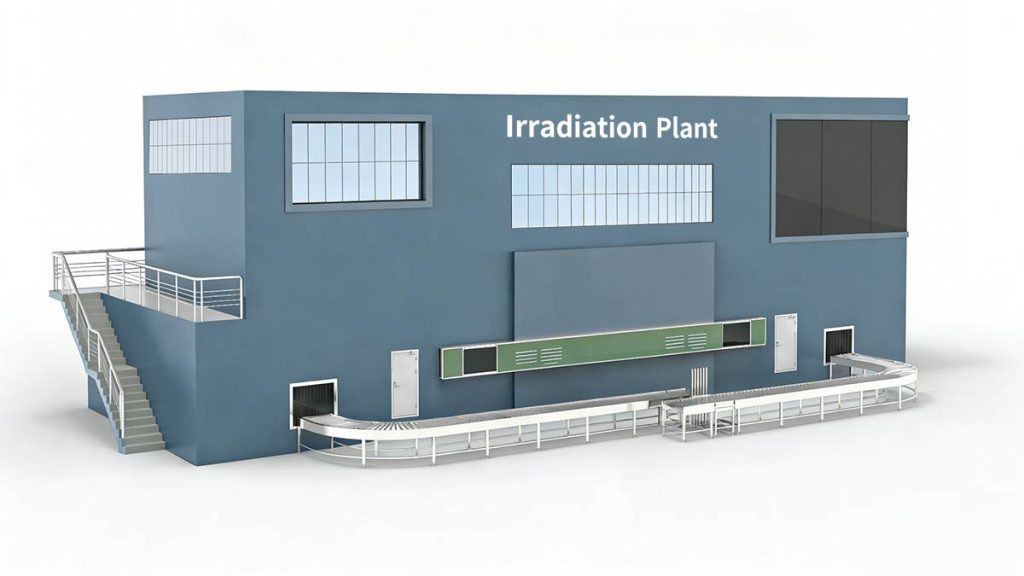

For electron beam irradiation plant
| Model | LMEB-10M |
| Energy | 10MeV |
| Irradiation source | Electron beam |
| Beam power | 20KW |
| Penetration | 45mm ~ 500mm |

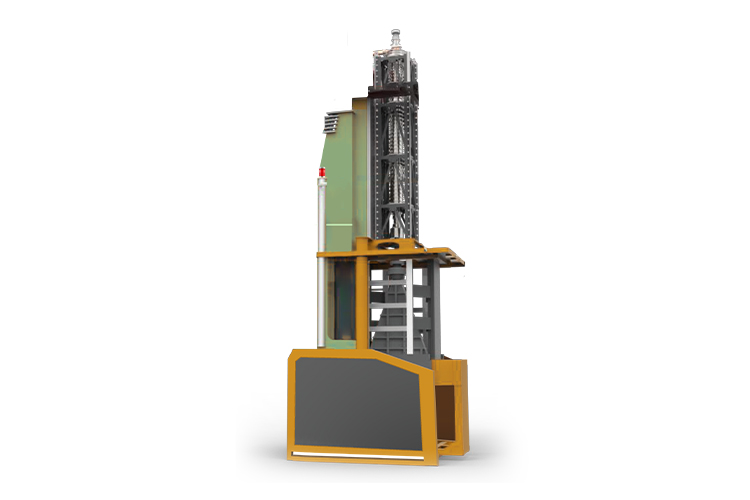

| Electron accelerator size | 3 * 5 * 8.5m (L*W*H) |
| Electron accelerator weight | 5 tons |
| Footprint | 23 * 8.5 * 9m (L*W*H) |
| Lead time | 18 months |
Above data only for reference, maybe change according to final design and without notice.
Customized electron beam sterilizer
According to the product, parameter, processing capacity, etc. EBM can help you build a customized electron beam sterilizer (include low energy electron beam sterilizer and high energy electron beam sterilizer). Please contact our sales representative or local distributor for more information.
What’s the difference of electron beam sterilizer?
According to the different parameter, there are lots different models, here is a simple comparison between 4 models.
| Model | TMED-200 | FMED-400 | LMED-1M | LMEB-10M |
| Energy | <200keV | 300keV | 1MeV | 10MeV |
| Penetration | < 200um | <500um | <10mm | 45mm ~ 500mm |
| Sterilization | Surface | Surface | Surface | Penetrated |
| Product shape | Flat surface | Flat surface | Flat surface | Irregular shapes |
About penetration of electron beam sterilizer
Three main factors will affect the penetration.
1.Energy
2.Beam power
3.Density of product
The commercial electron beam sterilization equipment usually will use 10MeV energy with 20KW beam power. But the density if affect the penetration depth, for example:
Generally, high energy with strong beam power will have good penetration depth.

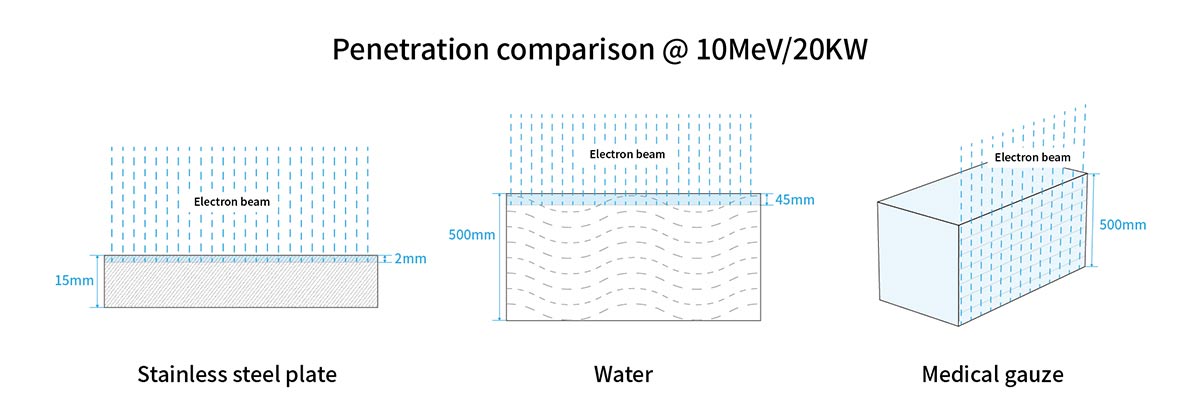

Electron beam sterilizer penetration comparison
About the low energy electron beam sterilizer and high energy electron beam sterilizer
Low energy electron beam sterilizer:
1.Energy range: 1keV ~ 1MeV
2.Low penetration depth
High energy electron beam sterilizer:
1.Energy range: 1MeV ~ 10MeV
2.High penetration depth
How to select the electron beam sterilizer for your product?
First, send EBM team more details about your requirement for the electron beam sterilizer
Second, provide images, videos and other information of your products for reference
Third, EBM team will check all information and provide initial proposal for your sterilization solution.
Fourth, both sides discuss the proposal and select a proper solution.
Fifth, starting design work.
Sixth, EBM team communicate with customer and confirm the final design.
Seventh, start manufacturing
Eighth, electron beam sterilizer deliver to customer’s factory
Ninth, EBM team send engineer to install and commissioning
Tenth, training period
Eleventh, close project
Twelfth, lifetime support
How to integrate the electron beam sterilizer with your production line?
EBM MACHINE not only provide electron beam sterilizer, also support you integrate it into your production line, even we can provide you a turnkey solution. For example, in beverage sector, integrate electron beam sterilizer with filling and sealing machine. For medical device, electron beam sterilizer can integrate with automatic pouch packing machine. More details, please contact our sales representative.
Contact EBM for more information about electron beam sterilizer
EBM MACHINE focus on electron beam applications and integration. If you have any question on electron beam sterilizer and its integration, please fill out below form or send email to info@ebeammachine.com directly.
