EB inks provide zero VOC and low migration advantages for packaging. These features protect food safety and support environmental sustainability. Electron beam curing enables these benefits through a solvent-free process and instant curing. The technology eliminates photoinitiators and reduces migration issues.
- Water-based inks release high VOC emissions and increase carbon footprint.
- EB inks have negligible VOC emissions and the lowest environmental impact.
| Feature | Benefit |
|---|---|
| No photoinitiators required | Minimized and low migration |
| Solvent-free process | Generates no VOC emissions |
| High degree of conversion | Enhances performance and safety |
| Instant curing | Contributes to low migration properties |
Stakeholders gain environmental and regulatory advantages by choosing EB inks for food packaging.
Key Takeaways
- EB inks provide zero VOC emissions, making them an eco-friendly choice for food packaging.
- The electron beam curing ensures low migration, protecting food safety by preventing harmful substances from entering food.
- Switching to EB inks can enhance brand reputation by demonstrating a commitment to sustainability and food safety.
- Using EB inks can significantly reduce operational costs due to lower energy consumption and reduced ink usage.
- Adopting EB inks helps manufacturers comply with strict regulations, ensuring safer packaging for consumers.

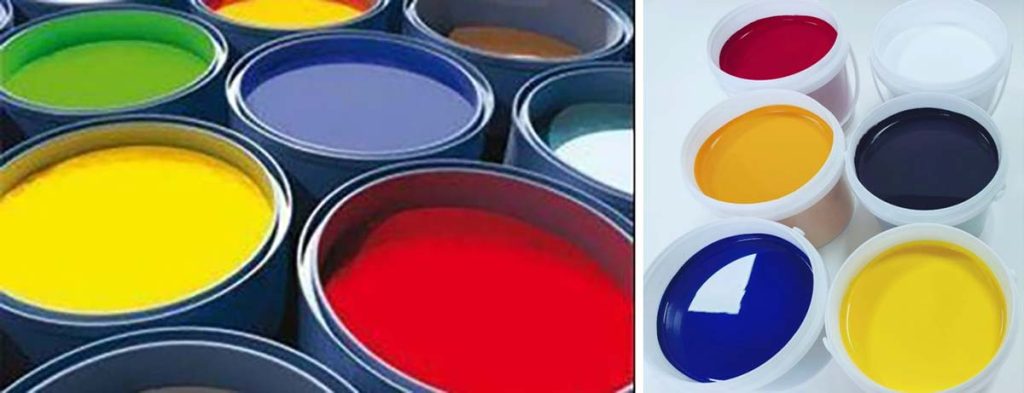

What Are EB Inks?
EB Ink Definition and Technology
EB inks, also known as electron beam inks, use a unique chemical composition that sets them apart from traditional inks. These inks contain nearly 100% solid content and require no solvents. The formulation includes high-density pigments, which provide vibrant color and reduce overall ink consumption. Unlike conventional inks, EB inks do not need photoinitiators, which often contribute to odor and migration issues. The table below highlights the differences between EB inks and traditional ink technologies:
| Feature | Gelflex-EB Inks | Traditional Inks |
|---|---|---|
| Solvent Usage | Virtually none | High solvent content |
| Pigment Density | Double the density | Standard density |
| Ink Consumption | 50% reduction | Standard consumption |
| Energy Costs | 70% reduction | Standard costs |
| Environmental Impact | 85% reduction in solvent emissions | Higher emissions |
| Compliance | Meets FDA and Swiss Ordinance standards | Varies by product |
| Odor and Taint Levels | Lowest levels | Higher levels |
| Recyclability | 100% recyclable | Varies by type |
Electron Beam Curing Process
The electron beam curing uses electron beam curing equipment to transform liquid EB inks into solid films. High-energy electrons initiate polymerization directly, so the process does not require photoinitiators. This method works well with pigmented and opaque materials, as electrons penetrate deeply and cure the ink evenly. The process generates minimal heat, which protects sensitive packaging materials. The table below compares electron beam curing with ultraviolet curing:
| Feature | Ultraviolet (UV) Curing | Electron Beam (EB) Curing |
|---|---|---|
| Energy Source | Photons (UV/Visible Light) | High-energy accelerated electrons |
| Curing Mechanism | Photoinitiator fragments | Electron ionization |
| Photoinitiator Requirement | Required | Not required |
| Penetration Principle | Optical density | Mass density |
| Performance with Pigments | Limited | Excellent |
| Heat Generation | Significant | Low |
| Initial Capital Cost | Lower | Higher |
Relevance for Food Packaging
EB inks offer several properties that make them ideal for food packaging. Their low viscosity ensures smooth application and prevents clogging in printing equipment. The fast curing process creates a strong bond, which reduces the risk of ink migration into food. These inks also provide excellent adhesion and flexibility, so packaging remains durable during handling and transport. EB inks support sustainability because printed materials can be recycled easily. Their low migration and compliance with FDA and Swiss Ordinance standards help ensure food safety and regulatory approval.
EB inks combine fast curing, low migration, and environmental benefits, making them a smart choice for modern packaging needs.
Zero-VOC Benefits of EB Inks
Understanding VOCs in Packaging
Volatile organic compounds, or VOCs, are chemicals that evaporate easily at room temperature. Many traditional inks used in packaging contain high levels of VOCs. These compounds can escape into the air during printing and drying. The release of VOCs contributes to air pollution and can create health risks for workers and consumers.
- Traditional solvent-based flexographic inks often contain 300–500 grams of VOCs per liter.
- A single production line may emit more than 100 kilograms of VOCs each day.
These emissions add to the carbon footprint of packaging operations. They also make it harder for companies to meet environmental regulations.
How EB Inks Eliminate VOCs?
EB inks achieve zero-VOC status through their unique formulation and curing process. They use ultra-high solids and gel-based technology. This means they contain almost no solvents. The absence of solvents removes the main source of VOCs. The electron beam curing process does not require photoinitiators, which further reduces the risk of unwanted emissions.
| Benefit | Description |
|---|---|
| Energy-efficient curing | Curing methods that require less energy, contributing to lower emissions. |
| Instant cure and performance | Immediate curing allows for faster production times. |
| Low or no VOC content | Formulation is designed to minimize or eliminate VOCs, achieving zero-VOC status. |
| Compatibility with various substrates | Can be used on a wide range of materials, enhancing versatility. |
- Gelflex-EB inks use a gel-based formula with high pigment density. This reduces the amount of ink needed for each job.
- UV/EB formulations are made of 100% solids. They produce little to no emissions during curing.
- The lack of solvents eliminates explosion and fire hazards in the printing area.
The use of EB inks in packaging helps companies create safer workplaces and cleaner products.
Environmental Impact
Switching from traditional inks to EB inks brings major environmental benefits. Energy requirements for curing drop by five to nine times compared to thermal-curing systems. Carbon emissions also decrease by the same factor. The combustion of VOCs in traditional inks produces extra CO2, but this is almost eliminated with EB inks.
- Zero-VOC EB inks lower carbon emissions and VOCs during printing, supporting sustainability goals.
- These inks are classified as zero VOC or 100% solids, so emissions become a minor concern.
- The absence of solvents reduces the carbon footprint from transportation and manufacturing.
- Energy-curable inks, including EB inks, help the industry minimize environmental impact.
- The use of bio-renewable and recycled raw materials in these inks supports green printing initiatives.
Many printers choose EB inks to comply with strict regulations on VOCs. This choice also aligns with the growing demand for sustainable packaging solutions.
Low Migration and Food Safety
What Is Migration?
Migration in the context of food packaging inks refers to the transfer of chemicals from inks or labels into food, which can lead to safety risks and regulatory challenges. This process happens when substances move from the printed surface through the packaging material and reach the food inside. Migration can occur during storage, handling, or even while the package sits on a shelf. If harmful chemicals enter food, they may affect taste, odor, or even health. For this reason, understanding and controlling migration is essential for anyone involved in food packaging.
Low migration is a key factor in protecting food quality and consumer health.
Low Migration with EB Inks
EB inks stand out for their ability to achieve extremely low migration levels. The electron beam curing process creates a highly cross-linked ink film, which locks in the ink components and prevents them from moving into food. This technology does not use photoinitiators, which are common sources of migration in other ink systems. As a result, EB curing achieves the lowest residual migration among all ink technologies.
The table below shows how low migration in EB inks enhances food safety for packaged products:
| Aspect | Description |
|---|---|
| Reduced Migration Risk | Low migration in EB inks minimizes the transfer of harmful substances from packaging to food. |
| No Migration by Set Off | Ensures that inks do not migrate through contact surfaces. |
| No Migration Through Packaging | Guarantees that food safety is maintained by preventing any harmful substances from leaching into food products. |
Food manufacturers and brands can trust that their products remain safe and uncontaminated. This reliability supports both regulatory compliance and consumer confidence.
Regulatory Compliance
Strict regulations govern the use of inks in food packaging. Authorities require that printed food packaging controls all sources of migration, including contamination during production, set-off migration, and storage conditions. The substrate, which makes up most of the package, must have strong barrier properties to reduce migration risks. Migration-compliant inks and coatings are necessary, especially for flexible packaging. Regular migration testing ensures that products meet safety standards.
The table below outlines the main regulatory considerations and how EB inks comply:
| Aspect | Details |
|---|---|
| Migration Compliance | Printed food packaging must be designed to control migration sources, including contamination during production and handling, set-off migration, and storage conditions. |
| Substrate Importance | The substrate is crucial, constituting up to 90% of the package, and its barrier properties must be considered to minimize migration risks. |
| Ink and Coating Requirements | Migration compliant inks and coatings are necessary, especially for flexible packaging, and migration testing is essential to verify compliance. |
| Set-off Migration | Set-off migration can occur during printing and handling, necessitating careful management through design and processes to minimize risks. |
| Reverse Side Printing | Avoid reverse side printing unless a migration barrier is present; if required, direct food contact inks should be used to mitigate risks. |
EB inks help manufacturers meet these strict requirements. Their low migration properties, combined with electron beam curing, make them a preferred choice for safe and compliant food packaging.
EB Inks vs. Traditional Inks
VOC and Migration Issues in Conventional Inks
Solvent-based inks release high levels of volatile organic compounds (VOCs) during printing. These emissions contribute to air pollution and pose health risks for workers. Toxic solvents such as benzene and ketones can cause occupational diseases after long-term exposure. UV inks, especially cationic types, emit fewer VOCs and often meet safety standards for food applications. However, both solvent-based and free radical UV inks can allow residual chemicals to migrate into food. This migration creates safety hazards in packaging, as unreacted monomers and other substances may contaminate food products.
Many traditional inks require photoinitiators or solvents, which increase the risk of odor, migration, and environmental harm.
Advantages of EB Inks
EB inks offer several advantages over conventional ink systems. They use electron beams for curing, which eliminates the need for solvents or photoinitiators. This process reduces waste and enhances safety for food and pharmaceutical packaging. The absence of photoinitiators leads to reduced odor and minimizes the potential for migration of ink components, resulting in safer products.
The table below highlights key differences in environmental impact and safety:
| Ink Type | Carbon Footprint | VOC Emissions | Energy Consumption |
|---|---|---|---|
| EB Inks | Lowest | Negligible | Least |
| UV Inks | Moderate | Moderate | Moderate |
| Water-Based | Highest | High | High |
EB inks also provide operational benefits:
- High press stability ensures consistent print quality.
- Easy operation allows for simple cleaning and maintenance, as the ink does not dry on the plate.
- Lower energy consumption reduces operational costs and environmental impact.
- Non-flammable properties and the absence of hazardous vapors make the workplace safer.
Printers can clean EB inks with water, which simplifies maintenance and reduces chemical use.
EB inks represent the future of flexo printing by combining environmental responsibility, safety, and efficiency in packaging production.
Stakeholder Benefits
For Manufacturers and Brands
Manufacturers and brands gain significant advantages by adopting EB inks for food packaging. They achieve high-performance printing with consistent color quality and reduced ink consumption. The use of low voc inks supports sustainable printing initiatives, which aligns with growing market demand for environmentally friendly packaging. Companies that choose EB inks can improve their brand reputation by demonstrating a commitment to food safety and environmental responsibility.
- Brands benefit from lower emissions and safer workplaces.
- The shift to safer ink alternatives helps maintain consumer trust.
- Sustainable packaging choices attract environmentally conscious customers.
The trend toward sustainable packaging continues to grow. Brands that invest in these technologies position themselves as industry leaders.
For Consumers
Consumers expect safe and high-quality food packaging. EB inks help meet these expectations by minimizing chemical migration and eliminating harmful additives. The fast curing process ensures that packaging remains free from unwanted residues. This technology supports high-performance printing, which results in clear and attractive packaging designs.
Consumers trust brands that prioritize food safety and environmental health.
People increasingly choose products with eco-friendly packaging. The use of EB inks reassures them that their food remains uncontaminated and that the packaging process supports a healthier planet.
Case Studies
Many companies have adopted EB inks to meet global food safety standards and market demands. The table below highlights how EB inks contribute to compliance and quality:
| Aspect | Description |
|---|---|
| Chemical Migration | EB inks minimize chemical migration into food packaging, ensuring safety for consumers. |
| Elimination of Harmful Additives | They are designed to eliminate photoinitiators and solvents that could transfer into food. |
| Regulatory Standards | These inks satisfy stringent regulatory safety standards across various regions globally. |
| Market Demand | Driven by the need for high-quality, compliant packaging solutions in the food and beverage sector. |
Food brands that switched to EB inks reported improved consumer trust and enhanced brand image. Their packaging lines now deliver high-performance printing with lower environmental impact.
Conclusion
EB inks deliver zero-VOC emissions and low migration, making food packaging safer and more sustainable. Electron beam curing enables high durability and supports recycling efforts.
“EB can enable the use of less plastics and drive toward mono-material structures, offering cost and material-reducing strategies for packaging innovation.”
The market for EB curable inks is projected to grow at a CAGR of 6.4% from 2025 to 2035, driven by demand for eco-friendly solutions.
- EB inks emit up to 70% fewer VOCs than traditional inks, helping industries reduce environmental impact.
- Technological advancements continue to improve carton performance and extend shelf life.
| Regulatory Change | Impact on EB Inks in Food Packaging |
|---|---|
| Stricter safety standards | Necessitates reformulations of EB inks to comply with new regulations. |
| Increased scrutiny on chemical migration | Requires manufacturers to ensure that inks do not migrate harmful substances into food. |
| Shift in market dynamics | Manufacturers may need to adapt their products and processes to meet new regulatory requirements, potentially affecting market competition. |
| As consumer awareness grows and technology advances, EB inks will shape the future of safe, sustainable food packaging. |
FAQ
What Makes EB Inks Different from UV Curable Inks?
EB inks use electron beam curing, while uv-curable inks rely on ultraviolet light. EB inks do not need photoinitiators, which reduces migration risks. Uv-curable inks often require photoinitiators, which can migrate into food. Both offer fast curing, but EB inks provide lower migration for food packaging.
Are UV Curable Inks Safe for Food Packaging?
UV curable inks can be safe if manufacturers use migration-compliant formulations and proper curing. However, UV curable inks may contain photoinitiators that can migrate into food. EB inks eliminate this risk by not using photoinitiators, making them a preferred choice for sensitive food packaging applications.
How Do EB Inks and UV Curable Inks Compare in Environmental Impact?
EB inks have a lower environmental impact than uv-curable inks. UV curable inks emit some VOCs and may require more energy for curing. EB inks use a solvent-free process and produce negligible emissions. Both support sustainability, but EB inks offer greater reductions in carbon footprint.
Can Uv-Curable Inks Be Used on All Packaging Materials?
UV curable inks work on many substrates, but some materials may limit their effectiveness. EB inks cure well on a wider range of materials, including opaque and thick substrates. UV curable inks may struggle with highly pigmented or non-transparent surfaces, while EB inks provide consistent results.
Why Do Food Brands Prefer EB Inks over UV curable inks?
Food brands choose EB inks because they offer lower migration and do not use photoinitiators. UV curable inks can leave residues that migrate into food. EB inks provide safer, more compliant packaging. Brands also value the environmental benefits and regulatory compliance that EB inks deliver.
