Spot size in electron beam applications refers to the diameter of the focused electron probe on a sample. This measurement is crucial because it determines resolution and precision during imaging or processing. Scientists measure spot size by adjusting lenses and apertures. Accurate control affects results in electron microscopy, lithography, and sterilization.
In scanning electron microscopy, spot size can be changed by modifying condenser and objective lenses or selecting different apertures.
Key Takeaways
- Spot size is crucial for achieving high resolution in electron beam applications. Smaller spot sizes allow for finer details and sharper images.
- Accurate measurement methods, like slit and pinhole techniques, help ensure precise control of spot size, which is essential for effective imaging and processing.
- Maintaining a small spot size with high intensity is vital for optimal performance in applications like electron beam lithography and medical sterilization.
Spot Size in Electron Beam Applications
Definition of Spot Size
Spot size describes the width or diameter of the focused electron beam as it strikes a target. In electron beam applications, this measurement determines how finely the beam can interact with materials. A smaller spot size allows the system to resolve finer details and create sharper images. The relationship between beam diameter and resolution is direct. When the beam diameter decreases, the system can achieve higher resolution. For example, scanning electron microscopes can reach resolutions better than 3 nanometers, while transmission electron microscopes can go below 1 nanometer. The spot size also affects how the beam interacts with the material. A focused electron beam with a diameter of 0.8 angstroms covers an area of only 0.5 square angstroms. This small area allows for precise control of electron dose and material changes.
Note: E-beams often have a Gaussian electron density profile. Increasing the divergence angle or spot size broadens the beam, which changes how the beam interacts with the sample.
Measurement Methods
Scientists use several methods to measure spot size. Common techniques include the slit, pinhole, and star resolution pattern methods. These approaches provide similar results and meet clinical accuracy requirements. Direct-exposure film methods offer high spatial resolution but require careful alignment and high tube loading, making them less practical for routine use. Recent advances use digital detectors and edge devices to measure spot size more accurately. This new approach reduces measurement errors, with a standard deviation as low as 0.005 millimeters, compared to 0.020 millimeters for traditional methods.
| Technique | Accuracy Comparison |
|---|---|
| Slit | Similar results to pinhole and star methods |
| Pinhole | Similar results to slit and star methods |
| Star Resolution Pattern | Similar results to slit and pinhole methods |
| Direct-Exposure Film | High spatial resolution, but requires high tube loading |
| Extremity Screen-Film System | Similar accuracy to other methods |
Tip: The choice of measurement method depends on the required accuracy and the available equipment.
Influencing Factors
Many factors influence the spot size in electron beam applications. The focus of the electron beam is crucial. Systems use electrostatic or magnetic focusing to concentrate the beam. The target material and its angle also affect the focal spot size because different materials and angles change how the beam spreads. The design of the e-beam gun, including the geometry of the cathode and anode, plays a significant role.
| Factor | Description |
|---|---|
| Electron Beam Focus | The focus of the electron beam is crucial for determining the size of the focal spot. Techniques like electrostatic or magnetic focusing are used to concentrate the beam. |
| Target Material and Angle | The composition and angle of the anode target affect the focal spot size due to varying thermal properties and the angle of incidence. |
| X-ray Tube Design | The design of the X-ray tube, including the geometry of the cathode and anode, significantly influences the focal spot size. |
System design and electron optics also have a strong impact. The configuration of electron optics elements, such as lenses and apertures, determines the achievable spot size. Beam divergence, which is the angular spread of the beam, directly affects the spot size. A shorter working distance and better focus can reduce the beam diameter. Advances in electron optics, like continuous-wave laser phase plates, help reduce spot size and improve resolution.
Operating conditions matter as well. Vacuum quality and temperature can change the stability and size of the electron beam spot. For example, lower ambient pressure in a vacuum leads to more stable beam behavior and better control over the molten pool during processes like electron beam melting. Variations in pressure and temperature affect how the energy beam interacts with the material.
Electronic parameters such as beam current, focus voltage, and anode voltage also influence spot size. Adjusting these parameters helps achieve the desired spot size for specific tasks. For instance, using a 200-micrometer aperture with a 3-nanoampere beam current can produce a spot size of 5 nanometers or less. Medium energy systems operate with energies from 100 electron volts to 30 kiloelectron volts, currents from 1 nanoampere to 5 milliamperes, and spot sizes from 60 microns to 450 millimeters. High energy systems can reach up to 100 kiloelectron volts and spot sizes up to 500 millimeters.
Remember: Errors in spot size or position can reduce the effectiveness of electron beam applications. Maintaining accuracy is essential for achieving the best results.
Importance of Spot Size
Resolution and Precision
Spot size plays a critical role in determining the resolution and precision of electron beam applications. Smaller spot sizes allow systems to resolve finer details and achieve sharper images. Researchers have demonstrated that direct electron detectors in cryo-electron microscopy experiments can count individual electrons, which greatly improves signal-to-noise and enables hundreds of new high-resolution macromolecular structures.
The advent of direct electron detectors for cryo-EM experiments and advances in data processing have resulted in a ‘revolution’ of hundreds of new high-resolution macromolecular structures. These detectors can count individual electrons, greatly improving signal-to-noise.
In scanning transmission electron microscopy (STEM), custom scan control and advanced image processing techniques have enhanced temporal resolution without modifying the electron optics. This approach allows scientists to determine atomic positions and elemental species at high speeds, providing valuable insights into atomic disordering and reordering.
This study demonstrates the successful enhancement of temporal resolution in STEM imaging without direct modifications to the electron microscope optics. By employing custom scan control with image processing techniques and implementing the ELIT workflow to develop a DCNN, a significant increase in the speed of determination of atomic position and elemental species information at high speeds in STEM imaging was achieved. The application of DCNN-enabled decoding of low-quality, high-temporal-resolution data provided valuable insights into the atomic disordering and reordering process.
A fast analog and digital input/output controller can scan the SEM beam while sampling detector signals rapidly. This method improves image acquisition speed and maintains resolution through image correction algorithms.
Presently, we show that a fast analog and digital input/output (IO) controller can be used to scan the SEM beam while fast sampling the detector signals, in order to improve image acquisition speed while maintaining resolution by using image correction algorithms.
To achieve high-resolution imaging in electron microscopy, a high-energy beam above 30 keV is often required. Recent advancements have shown that a 20 keV scanning electron microscope can reach sub-ångström resolution of 0.67 Å using ptychographic reconstruction. This finding challenges previous assumptions about necessary beam energy levels for high-resolution imaging.
Spot size is determined by beam intensity and voltage level. Lowering the kV increases spot size but decreases imaging depth, which allows for finer detail appreciation. Increasing beam intensity initially improves spot size and signal detection, but it can also cause increased tissue charging and complicate imaging.
Electron Microscopy
Electron microscopy relies on precise control of spot size to resolve fine structural details in samples. The spot size should not exceed the pixel size used in imaging. For example, with a 25 μm field of view and an image size of 2048×2048 pixels, the pixel size is 12.2 nm. The spot size should ideally be no greater than 12.2 nm to maintain resolution.
- The spot size should not exceed the pixel size used in imaging.
- For example, with a 25 μm field of view and an image size of 2048×2048 pixels, the pixel size is 12.2 nm.
- Therefore, the spot size should ideally be no greater than 12.2 nm to maintain resolution.
The resolution of SEM images is significantly influenced by beam intensity, which affects spot size and interaction volume.
- A higher beam intensity typically requires a larger spot size, leading to reduced resolution due to increased electron scattering.
- Conversely, a lower beam intensity allows for a smaller spot size, enhancing resolution and enabling finer details to be imaged.
In electron beam applications, a smaller spot size enhances spatial resolution by reducing the X-ray generation volume. However, reducing spot size limits the beam current, which decreases X-ray flux and imaging speed. Increasing beam current can improve imaging speed but may compromise spatial resolution due to larger effective spot sizes and increased electron interactions.
Application Examples
Spot size impacts a wide range of electron beam applications, including e-beam lithography, medical sterilization, additive manufacturing, and e-beam evaporation. In e-beam lithography, using a larger spot size can reduce resolution and pattern fidelity. Electron scattering and proximity effects cause the exposure area to extend beyond the intended pattern, resulting in blurring and unintended exposure of adjacent features. Forward scattering causes electrons to deviate as they pass through the resist, while backscattering leads to significant unintended exposure around the main pattern.
The larger spot size increases the likelihood of lateral scattering of electrons, which can broaden the exposure area. Forward scattering causes electrons to deviate slightly as they pass through the resist, while backscattering can lead to significant unintended exposure around the main pattern due to electrons reflecting back into the resist.

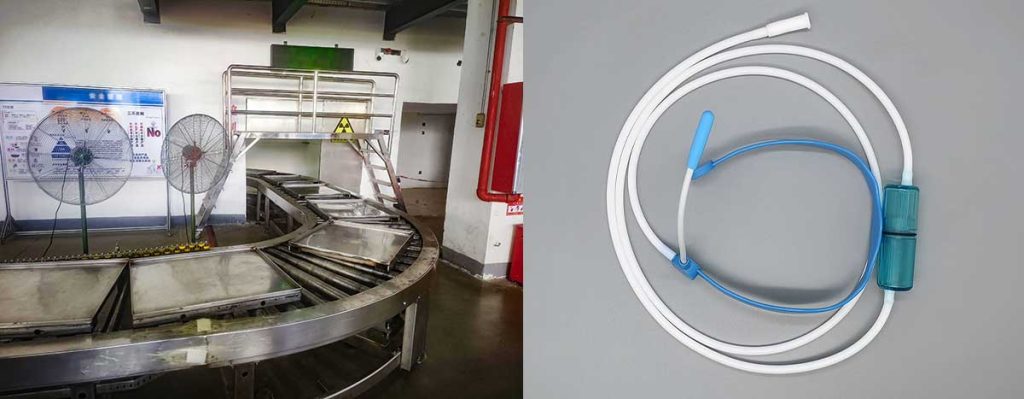

In medical sterilization, a small spot size and high beam intensity are essential for effective microbial inactivation. Electron beam systems must deliver precise doses to ensure safety and efficacy. Additive manufacturing processes, such as electron beam melting, require accurate control of spot size to achieve desired material properties and surface finishes. E-beam evaporation also depends on spot size for uniform material deposition and efficient energy transfer.
The design of the e-beam gun, electron optics, and beam divergence all influence spot size and, consequently, the performance of these applications. Beam energy must be carefully selected to balance resolution, speed, and material interaction. Engineers and scientists must optimize these parameters to achieve the best results in each application.
Tip: Maintaining a small spot size with high intensity is crucial for achieving optimal performance in electron beam applications. Careful adjustment of system parameters ensures high-resolution imaging, precise material processing, and reliable sterilization outcomes.
Conclusion
Understanding spot size helps scientists achieve precise results in electron beam applications. The e-beam gun design and beam energy settings influence spot size and resolution. The table below highlights key aspects that affect spot size and application outcomes, including electron beam sterilization.
| Key Aspect | Explanation |
|---|---|
| Electron Spot Size | Determines electron density on the target. |
| Measurement Method | Accurate methods work for any object shape. |
| Influencing Parameters | Aperture, energy, and working distance affect spot size. |
| Optimal Conditions | Specific settings yield the smallest spot size. |
| Impact of Working Distance | Shorter distance minimizes spot size. |
FAQ
What Determines the Smallest Possible E-Beam Spot Size?
The smallest spot size depends on electron optics, system design, and operating conditions. Engineers optimize lens settings and aperture size to achieve minimal diameter.
Tip: Regular calibration helps maintain the smallest spot size for high-resolution results.
How Does Spot Size Affect Imaging Quality in Electron Microscopy?
A smaller spot size increases image sharpness and detail. Larger spot sizes cause blurring and reduce the ability to see fine structures.
| Spot Size | Imaging Quality |
|---|---|
| Small | High resolution |
| Large | Low resolution |
Can Operators Adjust Spot Size During Electron Beam Applications?
Operators can adjust spot size by changing beam current, focus voltage, and aperture settings. These adjustments allow for better control over resolution and material interaction.
