Radiation shielding design for an irradiation facility demands careful planning to minimize radiation exposure and ensure radiation safety. Facility teams rely on qualified experts who evaluate radiation protection strategies, select appropriate shielding, and oversee design compliance. They reference regulatory standards, such as those requiring shielding walls, foundation support, and radiation monitors, to meet safety goals.
Recent statistics reveal significant changes in occupational radiation exposure:
Year
Collective TED (person-rem)
Change from Previous Year
Activities Involved
2020
4.609
-47%
Various lab activities including material handling and research
2021
14.896
+27%
Support for tritium mission and related activities
2022
7.665
-49%
Support for tritium mission and changes in facility operations
2023
15.793
+106%
Support for tritium mission and record processing of radioactive waste
Effective design reduces dose and ensures the irradiation facility meets strict radiation shielding requirements.
Key Takeaways
Effective radiation shielding design minimizes exposure and protects workers and the public. Prioritize safety by adhering to regulatory standards.
Selecting the right materials is crucial. Use lead for gamma rays and X-rays, while concrete is effective for neutrons and high-energy sources.
Regular monitoring and training enhance safety standards. Continuous evaluation ensures compliance with modern regulations and reduces risks.
Accurate calculations are essential for barrier thickness. Use updated methods like Monte Carlo simulations for complex scenarios.
Understanding occupancy factors and layout is vital. Assess room usage to optimize shielding and ensure adequate protection for all areas.
Radiation Shielding Design Principles
Objectives
Radiation shielding design in an irradiation facility aims to achieve several essential objectives. The main goals focus on reducing effective dose and protecting individuals from both primary and leakage radiation. NCRP Report No. 147 emphasizes the importance of tailoring shielding design for controlled and uncontrolled areas. The report highlights the need to set effective dose limits for workers and the public, select appropriate shielding materials, and calculate barrier thicknesses accurately.
Facility planners prioritize the following objectives in radiation shielding design:
Ensuring accreditation from organizations such as The Joint Commission or ACR
Minimizing liability and supporting safe construction planning
Radiation shielding design also supports radiation safety and radiation protection by reducing risks and ensuring compliance with regulations. Qualified experts play a vital role in evaluating shielding requirements and guiding the selection of materials and layout.
Criteria
Design criteria for radiation shielding in an irradiation facility rely on updated standards and regulations. Planners reference international standards to ensure the facility meets current requirements. The table below summarizes a recent update to a key standard:
New requirements for radiation protection in radiotherapy, including control levels based on occupancy factors.
Radiation shielding design must address both primary and secondary sources of radiation. Designers consider occupancy factors, barrier thickness, and the type of radiation produced by the irradiation facility. They select shielding materials that provide effective protection and meet dose limits. The design process includes regular review and expert involvement to maintain high standards of radiation safety.
Shielding Calculation Steps
Identify Radiation Sources
Radiation shielding design begins with identifying all radiation sources present in the irradiation facility. Facility teams encounter several types of radiation sources:
Gamma-ray irradiators, often using cobalt-60 (60Co), deliver specific absorbed dose ranges.
X-ray irradiators generate radiation through advanced x-ray technology.
Electron-beam irradiators utilize electron beams for processing.
Accurate identification and characterization of these sources require specialized methods. The following table summarizes key capabilities used in irradiation facilities:
Measures samples at high dose rates (up to 4×10^4 rad/hr) and low rates.
Complex test setups
Supports studies under varied conditions near the radiation source.
Dynamic dose rate modification
Adjusts dose rates by moving shielded enclosures.
Low-level displacement damage
Uses neutron generators and sealed sources for damage measurement.
Facility planners use updated workload data and detailed facility drawings to ensure accurate radiation shielding calculations. These resources help teams understand the location, intensity, and type of radiation produced, which is essential for effective protection and optimization of shielding.
Set Dose Limits
Setting dose limits is a critical step in radiation shielding design. International guidelines provide clear constraints for occupational and public exposure. The table below outlines recommended dose limits:
Type of Dose Limit
Limit on Dose from Occupational Exposure
Limit on Dose from Public Exposure
Effective Dose
20 mSv/year (avg. over 5 years), max 50 mSv/year
1 mSv/year
Equivalent Dose to the Lens of Eye
20 mSv/year (avg. over 5 years), max 50 mSv/year
15 mSv/year
Equivalent Dose to the Skin
500 mSv/year
50 mSv/year
Equivalent Dose to the Hands/Feet
500 mSv/year
–
Employers must ensure that the public does not receive doses above regulatory limits. They achieve this by reviewing area dosimeter results, estimating doses based on distance and occupancy, and conducting dose distribution studies for each product and geometry. The Nuclear Regulatory Commission requires public doses to remain below 1 mSv per year. Licensees demonstrate compliance by reviewing worker dose histories, conducting area surveys, or estimating public doses using shielding calculations.
Calculate Exposure
Radiation shielding calculations rely on several methods to estimate exposure. Facility teams use analytical approaches, point-kernel methods, and Monte Carlo simulations. The table below compares these calculation methods:
Method Type
Description
Monte Carlo Methods
Simulate particle transport in 3D geometries; highly accurate but computationally intensive.
Point-Kernel Methods
Calculate kerma rates and absorbed doses for organs in real time.
Analytical Approaches
Efficiently estimate organ equivalent doses based on tissue composition.
Monte Carlo simulations provide precise modeling of complex shielding scenarios. These methods simulate particle transport in three-dimensional layouts, allowing for detailed optimization of radiation shielding calculations. Variance reduction techniques improve computational efficiency, making these calculations more practical for facility design.
Updated workload surveys and new analytical methods have improved the reliability of shielding calculations. Dose monitoring software now enables the derivation of transmission curves for various shielding materials, supporting effective dose constraint management.
Choose Materials
Selecting appropriate materials is essential for radiation shielding design. The effectiveness of each material depends on its attenuation properties. The table below lists common shielding materials and their half-value layers:
Material
Half-Value Layer (cm)
Air
3555
Water
4.15
Carbon
2.07
Aluminum
1.59
Iron
0.26
Copper
0.18
Lead
0.012
Lead provides excellent protection against x-rays and gamma rays. Lead composites offer flexibility and similar protection levels. Lead-free shielding materials present environmentally friendly alternatives. For certain sources, such as Ir-192, a 10 cm thickness of clay-polyethylene mixture can attenuate nearly 89% of photons, demonstrating the importance of material selection in shielding calculations.
Determine Thickness
Calculating the required thickness of shielding materials involves several factors. Facility teams use formulas from NCRP reports to determine the thickness needed for primary and secondary barriers. These formulas consider workload, use factors, transmission factors, and the design dose constraint. For primary barriers, calculations focus on attenuating direct radiation. Secondary barrier calculations address leakage and scatter radiation, with thickness proportional to the workload.
Facility planners use updated workload data and facility drawings to refine shielding calculations. DICOM RT Plan files and programs like ORSE provide treatment planning and dose distribution information, ensuring high accuracy in shielding evaluation and optimization.
Layout and Occupancy
The layout of the irradiation facility and occupancy patterns play a significant role in radiation shielding calculations. Facility teams assess the building layout, the type of radiography equipment, and the use of adjacent rooms. They consider room occupancy when determining shielding requirements, ensuring that barriers provide adequate protection for both workers and the public.
Best practices include:
Evaluating occupancy factors for each area
Assessing the type of equipment and its location
Reviewing facility drawings to optimize barrier placement
Updated workload surveys and analytical methods support effective radiation shielding calculations. Facility teams use dose monitoring software and Monte Carlo simulations to enhance the accuracy of shielding designs. These advancements help prevent unnecessary radiation exposure and ensure compliance with regulations.
Material Selection for Irradiation Facility
Common Materials
Many irradiation facilities rely on a range of radiation shielding materials to achieve effective protection. The most common options include:
Good attenuation, needs greater thickness than lead
Steel
High strength, moderate density
Supports barriers, adds mechanical protection
These properties help facility planners select the right material for each structural shielding design. High-density materials like lead and steel provide strong protection with thinner barriers, while concrete offers versatility for large-scale shielding.
Suitability for Radiation Types
Different types of radiation require specific shielding strategies. High-Z steel-steel foam, which contains tungsten, demonstrates excellent performance against gamma rays, X-rays, and neutron radiation. This foam outperforms traditional materials for low-energy gamma rays and neutron shielding, making it a promising choice for advanced structural shielding design.
Material
Type of Radiation Shielded
Key Properties and Applications
High Density Polyethylene
Neutrons
Hydrogen-rich, used in reactors and accelerator facilities
Borated Polyethylene
Neutrons
Absorbs neutrons, used in medical and industrial settings
Facility teams select materials based on the type of radiation present, the required level of protection, and the specific design of the irradiation facility. This approach ensures optimal dose reduction and supports comprehensive radiation protection.

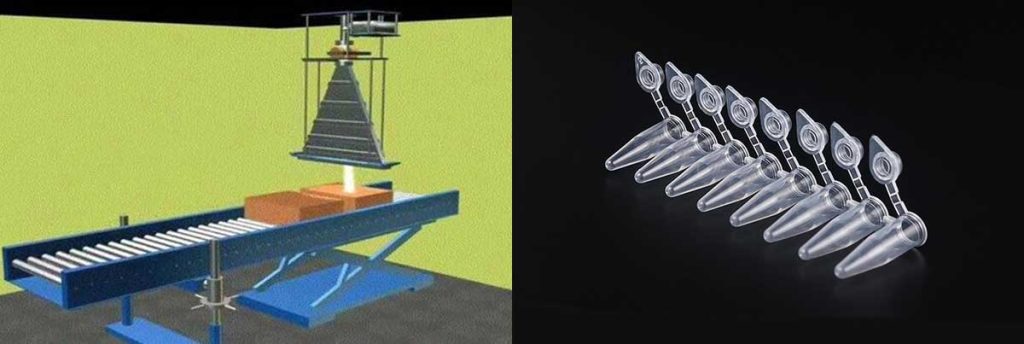

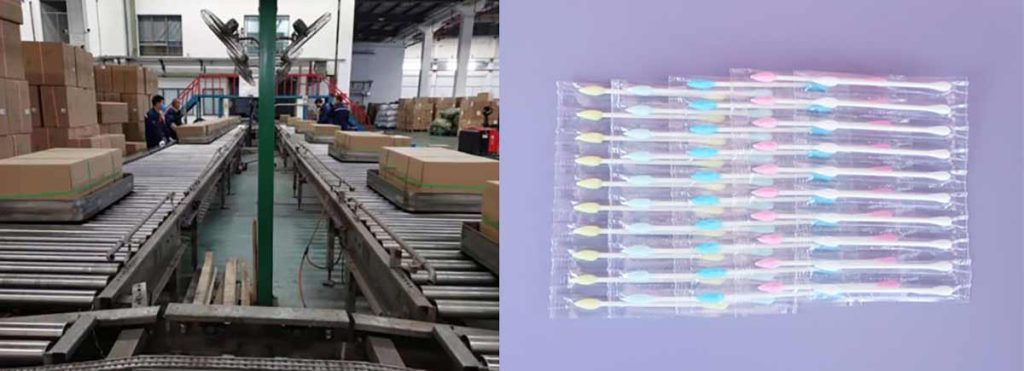

Electron Beam Irradiation Equipment
Electron beam irradiation equipment requires specialized structural shielding design. Treatment areas must have thick barriers to protect personnel from ionizing radiation. For electron energies below 1 MeV, lead and steel or their combinations create compact shields. When electron beam energies exceed 1 MeV, concrete, sand, or soil become the preferred materials due to cost and effectiveness.
Thick barriers surround the irradiation zone to reduce X-rays produced by energetic electrons.
Barrier thickness increases with electron energy and decreases with the atomic number of the shielding material.
Facility planners consider these factors during the design phase to ensure that all barriers provide reliable protection and meet regulatory standards for radiation shielding design.
Challenges and Solutions in Radiation Shielding
Common Issues
Radiation shielding design in an irradiation facility presents several recurring challenges. Teams must address the complexity of shielding against different types of radiation. They face the need for strict compliance with regulations and must optimize both materials and geometries. Designers consider factors such as the type of ionizing radiation, the energy spectrum, exposure duration, and the distance from the source. These variables influence calculations and the effectiveness of radiation protection.
Shielding against multiple radiation types
Regulatory compliance and documentation
Material and geometry optimization
Adjusting for energy spectrum and exposure length
Managing distance from the radiation source
Designers often encounter difficulties when adapting existing facilities to new standards. They must update calculations and validate shielding performance as technologies evolve. The need for accurate calculations remains a constant constraint in radiation shielding design.
Troubleshooting
Facility teams use several strategies to resolve common design problems in radiation shielding. They rely on computerized algorithms to improve the accuracy of calculations. Continuous updates and validation help maintain effective protection as new technologies and regulations emerge. For high photon energies, especially in radiotherapy, teams use lead or lead-equivalent products in barriers. Concrete barriers may reach up to 3.0 meters in thickness to meet dose constraint requirements.
Updates and validation of shielding calculations for new technologies
High photon energies in radiotherapy
Lead or lead-equivalent barriers, specific thickness requirements
Optimization plays a key role in shielding for megavoltage x-rays and gamma rays. Teams estimate primary and leakage workloads using clinical data. They determine effective use factors by analyzing patient treatment techniques. Experimental measurements provide transmission factors for primary beam blocks, maximum head leakage, and patient scatter fractions. For 6 MV flattening-filter-free x-ray beams, ordinary concrete requires first and equilibrium tenth-value layers of 33 cm and 29 cm, respectively. These findings guide calculations and barrier design, ensuring reliable radiation protection and dose constraint management.
Facility planners prioritize ongoing troubleshooting and optimization to maintain high standards in radiation shielding design. They use updated calculations and experimental data to ensure every barrier meets protection goals.
Conclusion
A systematic approach to radiation shielding design in irradiation facilities improves safety and efficiency. Key lessons from recent studies include:
Maintains safety standards and effective shielding
Compliance with protection processes
Reduces worker exposure and improves facility safety
Continuous health surveillance
Supports strong occupational radiation protection
Ongoing evaluation and expert guidance ensure facilities meet modern standards and protect everyone involved.
FAQ
What Is the Purpose of Radiation Shieldingin an Irradiation Facility?
Radiation shielding protects workers and the public from harmful exposure. It reduces the effective dose and meets safety standards. Facility teams use shielding to block or absorb radiation from sources like gamma rays, X-rays, and electron beams.
How Do Designers Choose the Right Shielding Material?
Designers select materials based on the type and energy of radiation. Lead blocks gamma rays and X-rays. Concrete works for neutron and high-energy sources. Teams consider density, thickness, and cost when choosing materials.
Tip: Facility planners review updated standards before selecting shielding materials.
What Methods Help Calculate Shielding Thickness?
Facility teams use formulas from NCRP reports, analytical methods, and Monte Carlo simulations. These approaches estimate the thickness needed for primary and secondary barriers. Calculations depend on workload, energy output, and occupancy.
Method
Use Case
Analytical
Quick estimates
Monte Carlo
Complex geometries
NCRP Formula
Standard calculations
Why Must Facilities Update Shielding Designs Regularly?
Facilities update shielding designs to follow new regulations and technology changes. Regular reviews help maintain safety and compliance. Teams use monitoring data and expert advice to improve protection and reduce risks.
