Electron beam technology dramatically enhances the friction and wear resistance of PTFE by changing its surface at the molecular level. Many industries, such as automotive and aerospace, depend on these improvements to extend the lifespan of seals and bearings. The following table shows a significant drop in friction coefficient and wear rate after treatment:
| Condition | Friction Coefficient | Wear Rate (g/min) |
|---|---|---|
| Untreated | 0.564 | 0.00029 |
| Treated (8 shots) | 0.369 | 0.00003 |
Key Takeaways
- Electron beam technology significantly enhances the wear resistance and hardness of PTFE, making it suitable for demanding applications.
- The treatment reduces the friction coefficient of PTFE, leading to lower energy loss and heat generation during operation.
- Cross-linking and structural changes from electron beam treatment improve PTFE’s durability, allowing it to withstand harsh environments.
- Industries can apply electron beam modified PTFE in seals, bearings, and gaskets, benefiting from its enhanced performance and longevity.
- Safety measures are crucial when implementing electron beam technology, including proper ventilation and personal protective equipment.
PTFE and Its Tribological Challenges
Properties of Polytetrafluoroethylene
Polytetrafluoroethylene, often called PTFE, stands out in engineering for its unique set of properties. Many industries value PTFE for its ability to reduce friction and wear in moving parts. The material’s low friction coefficient and self-lubricating nature help minimize direct contact between surfaces. This feature proves essential in applications where smooth motion and durability matter.
- PTFE maintains a low friction coefficient, which supports its use in sliding and rotating components.
- The self-lubricating property of PTFE reduces the need for external lubricants.
- PTFE’s excellent dielectric strength allows it to serve in environments where electrical insulation is important.
- The formation of tribofilms and chemical changes on PTFE surfaces can lower wear rates, especially when combined with certain fillers.
- PTFE’s performance can shift under different loading conditions, so engineers must consider operational scenarios when selecting this material.
These characteristics make polytetrafluoroethylene a popular choice for seals, bearings, and gaskets. However, PTFE’s tribological performance depends on both its physical and chemical properties.
Friction and Wear Issues in PTFE Applications
Despite its advantages, PTFE faces several friction and wear challenges in real-world use. Engineers often encounter different wear mechanisms, each with distinct features and measurement methods.
| Wear Mechanism | Characteristics | Measurement Method |
|---|---|---|
| Abrasive Wear | Smooth lubricating layers with delaminated pits and grooves | High-temperature tribometer tester; COF measured in real-time; wear volume measured with a contact probe |
| Fatigue Wear | Tiny furrows and flaking pits on the worn surface | Calculation of wear rate using the formula: W = V / (F * L) |
| General Wear in PTFE | Characterized by a smooth layer with few flaking pits | Repeated friction tests to ensure accuracy of COF and wear rate data |
PTFE can develop abrasive wear, which appears as grooves and pits on the surface. Fatigue wear leads to small furrows and flaking, reducing the lifespan of PTFE parts. General wear in PTFE often results in a smooth layer, but even minor surface changes can affect performance. Engineers use tribometers and contact probes to measure friction and wear rates, ensuring that PTFE components meet reliability standards. These challenges highlight the need for advanced solutions, such as electron beam technology, to further improve PTFE’s friction and wear resistance.
Electron Beam Technology for PTFE Modification
How Electron Beam Technology Works?

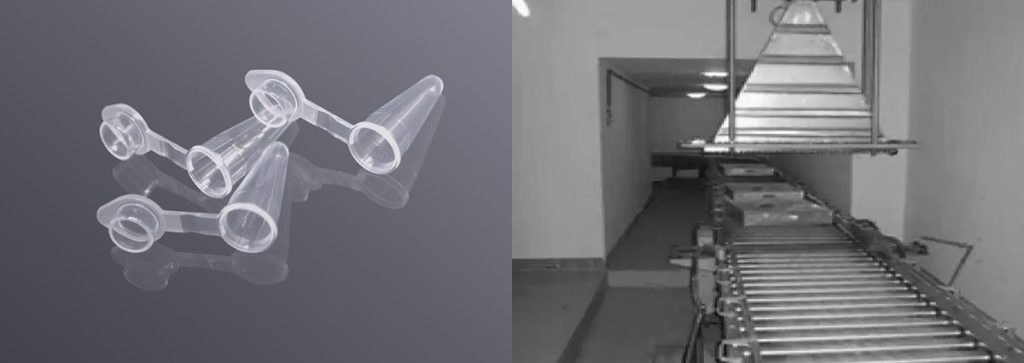

Electron beam technology uses high-energy electrons to modify the surface and structure of polytetrafluoroethylene. Engineers rely on electron beam irradiation equipment to deliver controlled doses of energy to PTFE samples. The process involves irradiation doses that range from 1×10³ to 1×10⁴ Gy. Researchers have observed that a maximum dose of 150 kGy increases the crystallinity of PTFE. Scientists use X-ray diffraction and differential scanning calorimetry to analyze these structural changes. Electron-beam treatment can affect mechanical properties, such as elongation at break and tensile strength, at specific doses like 3.10 kGy and 1.70 kGy. The irradiation process also causes a decrease in molecular weight due to chain scissions in the amorphous region.
Electron beam irradiation equipment allows precise control over the energy delivered to polytetrafluoroethylene, making electron-beam treatment a reliable method for surface modification.
Molecular Changes in Electron Beam Modified PTFE
Electron beam technology produces significant molecular changes in PTFE. The process leads to both chain scission and cross-linking, which alter the material’s properties. The following table summarizes key findings from electron beam treatment:
| Findings | Description |
|---|---|
| Radical Concentration | Higher irradiation temperatures increase radical concentration, enhancing chain reactions and structural changes in PTFE. |
| Mechanical Properties | Mechanical properties improve or remain stable at high temperatures, showing effective cross-linking. |
| Chain Scission | Electron beam treatment can cause chain scission, affecting radiation resistance. |
| Cross-Linking | High temperature irradiation may create a crosslinking network in PTFE. |
| Temperature Effects | Chain-scission degradation rises with temperature, while cross-linking occurs in molten PTFE. |
Electron beam modified PTFE shows improved mechanical strength and stability. The electron beam treatment creates a balance between chain scission and cross-linking, which enhances wear resistance and hardness. Polytetrafluoroethylene treated with electron beam technology becomes more suitable for demanding industrial applications. The molecular changes from electron beam treatment help engineers achieve better tribological performance in PTFE components.
Tribological Improvements in Electron Beam Modified PTFE
Enhanced Wear Resistance and Hardness
Electron beam technology has transformed the tribological behaviour of PTFE by significantly improving its wear resistance and hardness. Researchers observed that after electron beam modification, the hardness of polytetrafluoroethylene increased from 33.2 MPa to 93.9 MPa. This change represents a major leap in mechanical properties. Nanoindentation hardness testing and microhardness assessments confirmed these results. The mass wear rate also dropped sharply, which means PTFE can now serve as one of the most reliable wear resistant materials in demanding environments.
The molecular structure of PTFE changes after electron beam treatment. These changes lead to a denser and more stable surface, which resists deformation and surface damage. Scientists measured these improvements using wear-resistance evaluations and found that the treated material maintained its integrity even after repeated friction and wear cycles. The increased microhardness and improved surface energy further support the use of electron beam modified PTFE in applications that require high friction and wear resistance.
PTFE treated with electron beam technology now competes with other advanced wear resistant materials, making it suitable for seals, bearings, and sliding components that face constant friction and wear.
Friction Reduction and Energy Dissipation
The tribological improvements in electron beam modified PTFE extend beyond hardness and wear resistance. The friction coefficient of PTFE drops after treatment, which means less energy is lost during operation. This reduction in friction leads to lower heat generation and less material degradation over time. Engineers have measured the specific wear rate and found that electron beam treated PTFE outperforms untreated samples in both laboratory and real-world tests.
The following table summarizes key findings from peer-reviewed studies on the long-term durability and tribological behaviour of electron beam modified PTFE:
| Key Findings | Description |
|---|---|
| Impact of Radiation | PTFE is susceptible to radiation exposure, leading to molecular weight reduction and loss of strength. |
| Operating Window | Studies identified optimal conditions for electron beam sterilization that minimize degradation. |
| Significant Factors | Total dose and packaging atmosphere play a critical role in PTFE stability. |
| Mitigation Method | Modified atmosphere packaging, such as vacuum sealing with nitrogen, enhances PTFE stability against electron beam exposure. |
These findings show that electron beam technology not only improves the friction and wear properties of PTFE but also helps maintain its performance under harsh conditions. The improved tribological behaviour ensures that polytetrafluoroethylene components last longer and require less maintenance. As a result, industries can rely on electron beam modified PTFE for applications where friction, wear, and resistance to harsh environments are critical.
Mechanisms Behind Enhanced Tribological Properties
Cross-Linking and Structural Effects
Electron beam irradiation introduces crosslinking into polytetrafluoroethylene, which transforms its tribological performance. Crosslinking creates a three-dimensional network within the PTFE matrix. This network increases the material’s resistance to deformation and surface damage during friction and wear. Researchers have observed that crosslinked PTFE, often called X-PTFE, displays a rougher surface and produces fine powder debris instead of flakes. These changes lead to a dramatic improvement in wear resistance—up to three orders of magnitude higher than virgin PTFE. The following table summarizes key differences:
| Property | Virgin PTFE | Cross-Linked PTFE (X-PTFE) |
|---|---|---|
| Surface Morphology | Smooth | Rough |
| Debris Form | Flakes | Fine Powder |
| Wear Resistance Improvement | Baseline | Up to three orders of magnitude or higher |
| Friction Coefficient Change | Not specified | Increased by about 5% at 3000 kGy |
| Structural Change | None | Three-dimensional network |
Electron beam treatment also causes new chemical groups to form, such as COF, COOH, and CF3. The crystallite size expands, and the material can transform into a free-flowing micropowder. These molecular changes reduce hydrophobic and oleophobic properties, which increases crosslinking efficiency and allows PTFE to combine with other materials. The combination of crosslinking and structural changes directly enhances tribological properties, making polytetrafluoroethylene more durable in demanding applications.
Surface Morphology and Cellular Adhesion
Surface morphology plays a crucial role in the tribological behavior of PTFE. After electron beam modification, the surface becomes rougher and more chemically active. Techniques like FTIR, ESR, SEM, and AFM reveal the formation of functional groups and significant changes in surface texture. FTIR detects new groups such as -C=O, -COOH, and -COF, while SEM and AFM show increased roughness and altered wettability.
| Technique | Findings |
|---|---|
| FTIR | Formation of -C=O, -COOH, -COF; changes in -C-F and -CF2 bands |
| ESR | Generation of peroxy radicals and hyperfine structures |
| SEM/AFM | Increased surface roughness and changes in wettability |
These surface changes influence how PTFE interacts with its environment. Increased roughness correlates with higher microbial adhesion, especially for certain bacteria. Lower surface free energy also leads to greater adhesion rates. Studies show a direct relationship between roughness and microbial attachment, which can affect the tribological performance in biological or industrial settings. By controlling surface morphology through electron beam treatment, engineers can tailor PTFE’s tribological properties for specific uses, improving both friction and wear resistance.
Industrial Applications and Practical Considerations
Scalability and Feasibility of Electron Beam Technology
Industries have shown growing interest in scaling up electron beam technology for PTFE modification. The process requires a controlled vacuum environment, which ensures consistent results but introduces challenges. Operators must address safety risks, such as vacuum exposure, inhalation of fine particles, fire hazards, and electrical dangers. The following table summarizes key safety considerations:
| Safety Consideration | Description |
|---|---|
| Vacuum Environment Risks | Sudden vacuum exposure can harm workers and damage equipment. |
| Inhalation Risks of Fine Particles | Airborne powders may cause respiratory issues; ventilation is essential. |
| Fire and Explosion Risks | Fine powders can ignite easily; proper storage and handling are critical. |
| Electrical Hazards | High-voltage equipment requires insulation and regular maintenance. |
| Personal Protective Equipment | Operators need PPE, such as helmets and gloves, to reduce exposure to radiation and heat. |
| Ventilation and Air Filtration | Effective systems capture airborne particles and prevent dust buildup. |
Implementing electron beam systems at an industrial scale involves significant investment. Capital costs can reach several million dollars. Ongoing expenses include maintenance and higher material costs compared to traditional coatings. However, energy savings may offset some of these costs over time. The process also consumes more energy as electron energy increases, but it improves deposition efficiency. Environmental sensitivity remains a limitation, as any deviation from optimal conditions can affect performance. Some materials, especially non-conductive ones, may not respond well to electron beams.

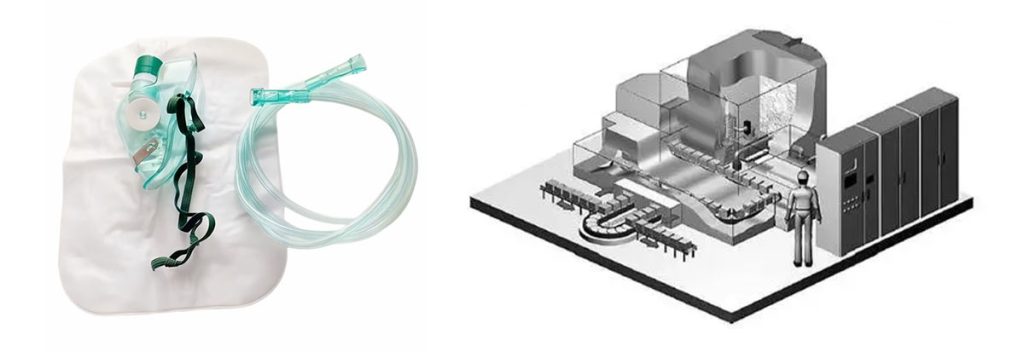

Key Uses for Electron Beam Modified PTFE
Electron beam modified PTFE finds use in a wide range of applications. Many industries rely on its enhanced properties for demanding environments. The technology supports curing of pre-polymers, crosslinking, and chain scission in various polymers, including polytetrafluoroethylene. The following list highlights common applications:
- Seals and bearings for automotive and aerospace industries
- Gaskets and sliding components in chemical processing
- Curing inks, coatings, and adhesives through polymerization
- Crosslinking of polymers to improve structural integrity
- Chain scission for sterilization and property modification
A modified PTFE micropowder can blend with other materials, expanding its use in composite applications. The table below outlines how electron beam technology enhances PTFE for tribological purposes:
| Application Type | Description |
|---|---|
| Polymer Modification | Improves blending with other materials for advanced composites. |
| Crosslinking | Increases structural integrity in oxygen-free environments. |
| Chain Scission | Enables new bonding configurations and property adjustments. |
Industries continue to explore new applications for electron beam modified PTFE, especially where friction, wear, and chemical resistance are critical. These advancements help manufacturers meet higher performance standards and extend the lifespan of their products.
Conclusion
Electron beam modified PTFE offers stronger wear resistance and lower friction, making it valuable for industries that demand reliable performance. This technology provides practical solutions for extending the lifespan of seals, bearings, and sliding parts. Researchers continue to explore ways to further enhance PTFE’s properties. The table below highlights promising research directions:
| Research Direction | Description |
|---|---|
| Varying Electron Beam Doses | Study how different irradiation doses impact PTFE’s tribological behavior. |
| Incorporation of Additives | Test additives like graphite or bronze for improved wear reduction. |
| Optimization of Irradiation Conditions | Refine process settings for maximum benefit. |
| Combination with Surface Modification | Combine electron beam with surface texturing or coatings for better results. |
FAQ

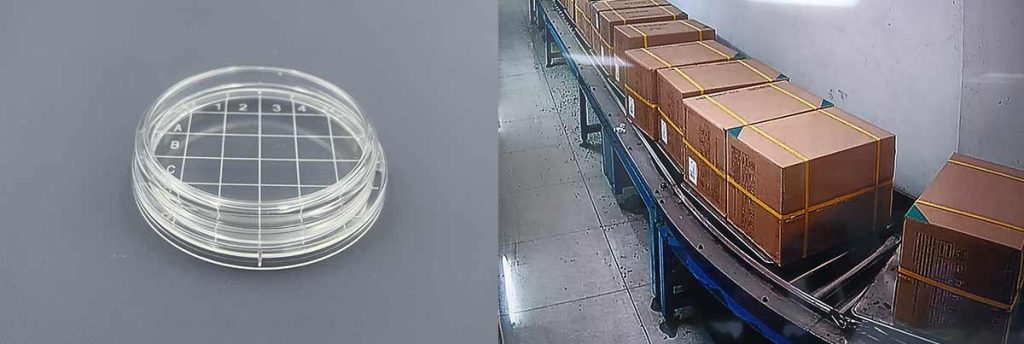

What Is Electron Beam Technology?
Electron beam technology uses high-energy electrons to change the surface and structure of materials. Scientists use this method to improve properties like wear resistance and hardness in PTFE.
This process offers precise control and consistent results.
How Does Electron Beam Treatment Improve PTFE’s Wear Resistance?
Electron beam treatment creates crosslinks in PTFE’s molecular structure. These crosslinks make the material harder and more resistant to wear.
- PTFE lasts longer in harsh environments
- Components need less frequent replacement
Is Electron Beam Modified PTFE Safe for Industrial Use?
Yes, industries use electron beam modified PTFE safely. Operators follow strict safety protocols, including personal protective equipment and ventilation systems.
Proper training and equipment maintenance reduce risks.
Can Electron Beam Technology Be Used on Other Polymers?
Yes, engineers apply electron beam technology to many polymers, not just PTFE.
| Polymer Type | Common Uses |
|---|---|
| Polyethylene | Packaging, tubing |
| Polypropylene | Automotive parts |
| PVC | Medical devices |
What Are the Main Applications of Electron Beam Modified PTFE?
Industries use electron beam modified PTFE in seals, bearings, gaskets, and sliding components.
- Automotive
- Aerospace
- Chemical processing
