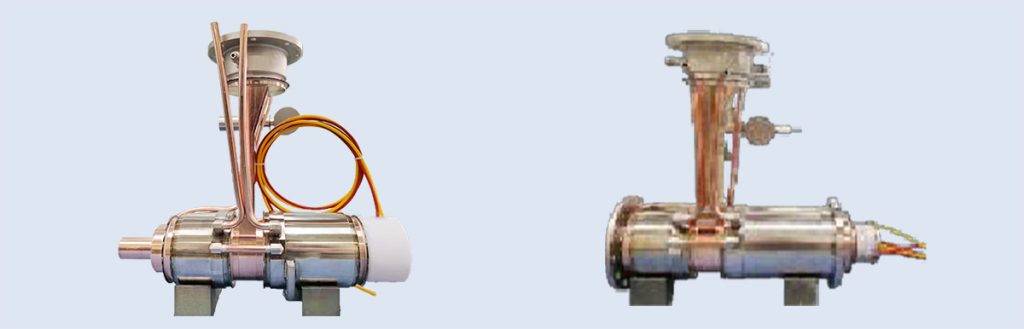

An e-beam accelerator uses specialized components to generate and direct high-energy electron beams for industrial and medical purposes. The system includes single or multiple cathodes, an acceleration chamber, beam windows, and shielding. Each part performs a distinct function, as shown below:
| Component | Function |
|---|---|
| Single cathode | Emits electrons uniformly for wide coverage. |
| Multiple cathodes | Expands the beam for larger areas. |
| Acceleration chamber | Boosts electron energy and maintains vacuum. |
| Beam windows | Allows electrons to exit with minimal loss. |
| Shielding | Blocks harmful radiation. |
The anatomy of an accelerator supports vital processes such as electron beam sterilization. The global market reached $641.26 million in 2024 and is projected to grow to $922.19 million by 2034, with a CAGR of 3.70%.
Key Takeaways
- E-Beam accelerators generate high-energy electron beams for medical and industrial uses, including sterilization and material modification.
- Key components like the electron gun and injector work together to produce and direct focused electron beams, ensuring efficiency and stability.
- The acceleration system, including linear accelerators and RF cavities, boosts electron energy, making it suitable for various applications.
- Safety features such as interlocks and shielding protect operators from radiation, ensuring safe operation of e-beam machines.
- Regular maintenance and monitoring of systems like cooling and vacuum are essential for reliable performance and longevity of e-beam accelerators.
Anatomy of an Accelerator: Key Components
The Anatomy of an accelerator reveals a complex yet organized system. Each part of electron beam irradiation equipment plays a specific role in generating and accelerating electrons. The main structural elements include the electron gun and the injector. These components work together to create a focused, high-energy electron beam that powers applications like sterilization and material modification.
Electron Source
The electron source, often called the electron gun, forms the heart of electron beam irradiation equipment. This device initiates the process by producing a stream of electrons. The electron gun contains several critical parts:
- Cathode: This component generates free electrons through thermionic emission. Manufacturers often use tungsten for its durability and efficiency.
- Anode: The anode attracts and accelerates the electrons, guiding them toward the beam’s intended direction. It usually remains at ground potential to stabilize the process.
- Control Grid (Wehnelt Grid): This grid regulates the flow of electrons from the cathode. It also helps focus the beam and can create pulsed electron streams for precise control.
The Wehnelt electrode, a specialized part of the control grid, sharpens the electron beam. By adjusting the electric field, it ensures the electrons travel in a tight, controlled path.
The electron gun operates by applying a high voltage pulse between the cathode and anode. This pulse creates an electric field that pulls electrons from the cathode and accelerates them toward the anode. The control grid and Wehnelt electrode fine-tune the emission and focus, ensuring the beam remains stable and well-defined. In the Anatomy of an Accelerator, the electron gun stands as the starting point for all downstream processes.
Injector
The injector acts as the gateway for electrons entering the acceleration phase. After the electron gun produces and shapes the electron beam, the injector introduces these electrons into the main acceleration chamber. This step is crucial for maintaining beam quality and consistency.
The injector in electron beam irradiation equipment often includes additional focusing elements. These elements align the electrons and prepare them for rapid acceleration. The injector must operate with high precision to prevent beam loss or dispersion. Any misalignment at this stage can affect the entire system’s performance.
In the broader context of the Anatomy of an Accelerator, the injector ensures that only well-formed, stable electron beams proceed to the next stage. This careful preparation supports efficient acceleration and reliable operation in industrial and medical applications.
A well-designed injector preserves beam integrity and maximizes the effectiveness of the entire accelerator system.
The electron gun and injector together form the foundation of electron beam irradiation equipment. Their combined action sets the stage for the high-energy processes that follow, making them essential to the Anatomy of an Accelerator.
Acceleration System
The acceleration system stands at the core of every electron beam machine. This section of the Anatomy of an Accelerator transforms low-energy electrons into powerful beams suitable for industrial and medical applications. The system relies on three main components: the linear accelerator, RF cavities, and a robust power supply.

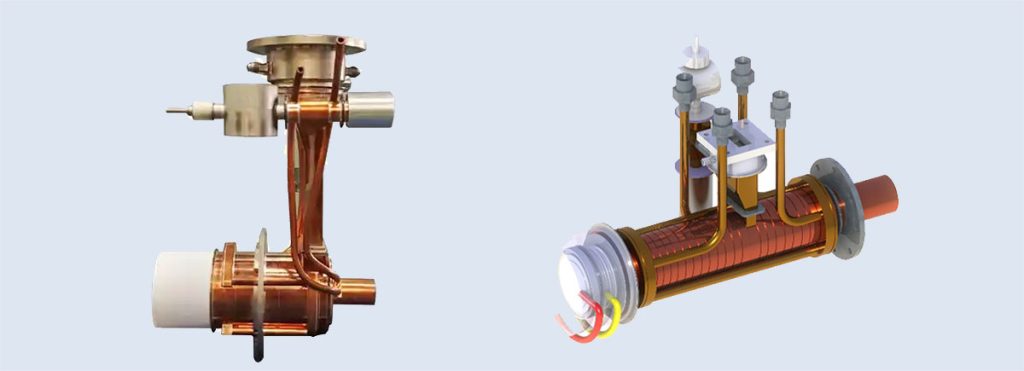

Linear Accelerator
A linear accelerator, often called a linac, increases the energy of electrons by propelling them through a series of precisely engineered structures. Engineers design these accelerators for both efficiency and output power. Linear electron accelerators deliver high beam power with minimal energy loss, making them cost-effective and environmentally friendly. Operators select low-energy systems for surface treatments, while high-energy systems penetrate deeper materials and support advanced processes such as radiation therapy.
The table below shows typical energy and power ranges for different applications:
| Application | Typical Energy Range | Typical Power Range |
|---|---|---|
| In-line Products | 4 – 6 MeV | Up to 60 kW (10 mA) |
| Medical Devices | 10 – 11 MeV | Up to 60 kW (6 mA) |
| Gemstones | 20 MeV | Up to 65 kW (3.2 mA) |
| Radioisotopes | 25 – 40+ MeV | 100+ kW (2.5+ mA) |
Modern linear accelerators use a tuned-cavity waveguide. RF power generates a standing wave inside this structure. Medical linacs accelerate electrons to produce monoenergetic beams ranging from 4 to 25 MeV. Operators can direct these beams at high-density targets to generate X-rays for further applications.
RF Cavities
RF cavities play a vital role in the acceleration process. These specialized chambers create high electric fields without causing dielectric breakdown. The design allows more RF power to reach the electron beam, increasing efficiency. RF cavities operate at lower gradients, which means a higher fraction of RF power converts into beam power.
- RF cavities enable high electric fields while avoiding breakdown.
- They enhance power conversion efficiency from RF to beam power.
- Modular designs improve reliability and allow the system to withstand individual component failures.
Engineers often choose a low accelerating gradient, such as 1.5 MV/m, to maximize efficiency. For example, a 10 mA instantaneous current produces 200 W of beam power, converting about 40% of incoming RF power. The net efficiency of converting DC electrical power to beam power reaches approximately 10%, which surpasses many traditional RF linacs.
Power Supply
The power supply system ensures stable and reliable operation of the accelerator. It delivers the necessary voltage and current to both the linear accelerator and RF cavities. Several supporting mechanisms protect the equipment and operators:
| Component | Function |
|---|---|
| Cooling System | Maintains optimal operating temperatures by dissipating heat generated during electron emission. |
| Safety Mechanisms | Protects equipment and operators from hazards associated with high voltage and current. |
| Arc Suppression | Prevents electrical discharges that could damage the system. |
| Fault Detection | Monitors power supply for irregularities and maintains stability. |
| Emergency Shutdown | Provides a fail-safe mechanism to quickly power down the system in case of critical failures. |
| High Vacuum Environment | Reduces the risk of electrical arcing and enhances reliability and safety. |
Operators rely on these systems to maintain consistent dose rates, often between 5 and 10 Gy/min. High beam power increases processing speed, which benefits large-scale radiation processing. Advanced acceleration systems support a wide range of irradiation capabilities, expanding their versatility across industries.
The anatomy of an accelerator demonstrates how each part of the acceleration system works together to deliver powerful, reliable electron beams. This synergy enables efficient sterilization, material modification, and medical treatments.
Beam Transport
Magnets
Magnets play a crucial role in steering and shaping the electron beam as it travels from the accelerator to the target. Dipole magnets deflect the beam in specific directions, allowing operators to guide the electrons along the desired path. Quadrupole magnets focus the beam by compressing it in one axis and expanding it in another. Engineers often arrange quadrupoles with alternating orientations to maintain continuous focusing and prevent the beam from spreading out.
- Dipole magnets steer the electron beam by changing its direction.
- Quadrupole magnets focus the beam, ensuring it remains narrow and well-defined.
- Electronic skew quadrupole correctors help correct misalignments and improve beam steering.
Mechanical misalignments during installation can cause the beam to deviate from its intended path. These deviations may lead to significant beam distortions if not corrected. Real-time control systems monitor the beam and adjust the magnets to maintain optimal quality.
Beamline
The beamline serves as the pathway for the electron beam between the accelerator and the target area. Engineers design the beamline to minimize orbit deviations and dispersion, which helps preserve beam quality. Any misalignment of magnetic elements or components can introduce errors in the beam’s trajectory. To address these challenges, modern systems use real-time beam characterization and control.
- Large orbit deviations and dispersion must be minimized to maintain beam quality.
- Misalignment of magnetic elements can cause significant beam distortions.
- Real-time monitoring ensures the beam stays on course.
A well-aligned beamline ensures that the electron beam reaches the target with high precision, supporting consistent results in industrial and medical applications.
Focusing
Precise focusing of the electron beam is essential for accurate delivery to the target. Electromagnetic lenses focus the beam into a tight spot, achieving remarkable precision.
| Technique | Description | Tolerance Achieved |
|---|---|---|
| Electromagnetic Lenses | Focus the electron beam into a precise spot, achieving spots as small as 1 nm. | 1 nm |
In industrial settings, tolerances down to 0.01 mm are common. This level of control enables the production of microscale components and advanced electronics.
Shaping and focusing the beam ensures that energy is delivered exactly where needed, maximizing efficiency and minimizing waste.
Beam Delivery and Applications
Target Area
The target area in an electron beam machine determines how effectively energy transfers to the product. Engineers design this region to maximize irradiation efficiency and product throughput. Several technical parameters influence performance:
| Technical Parameter | Description |
|---|---|
| Electron Energy | Determines penetration and effectiveness in processing products. |
| Beam Power | Higher power increases productivity and lowers operational costs. |
| Reliability | Reduces downtime and maintenance expenses. |
| Electrical Efficiency | Impacts energy consumption and cost. |
| Product Characteristics | Affects how the beam interacts with materials. |
| Transport Technology | Improves movement of products through the irradiation area. |
| Multi-Side Irradiation Capability | Enables simultaneous treatment from multiple angles. |
| Dose Reduction Techniques | Optimizes energy use with additives and process integration. |
| Equipment Efficiency | Relates to beam utilization and product delivery systems. |
| Installation Costs | Lowered by higher power and cost-effective accelerators. |
A well-designed target area supports consistent results and high throughput. Multi-side irradiation and advanced transport systems enhance processing speed and uniformity.
Electron Beam Sterilization
Electron beam sterilization stands out as a leading application in the Anatomy of an Accelerator. Facilities use this method to treat medical equipment, pharmaceuticals, and food products. In North America, 40-50% of disposable medical products undergo radiation sterilization. The FDA recognizes electron beam technology as an established modality for low to medium density devices.
| Sterilization Method | Effectiveness | Typical Dose Range |
|---|---|---|
| Electron Beam (E-Beam) | High for low-density products | Dual-pass for most shipper boxes |
| Gamma Radiation | High | Varies by product density |
| Ethylene Oxide (EO) | Effective for complex geometries | Product-specific |
| X-Ray | Effective | Varies by product density |
E-beam sterilization delivers rapid, reliable results. It is not suitable for extremely dense materials, but it excels in speed and efficiency for most medical devices.
Other Uses
Electron beam machines support a wide range of industrial and research applications. Operators use these systems for:
- Wastewater treatment, where electron beams oxidize pollutants and disinfect water.
- Food irradiation, which prevents pathogen contamination and extends shelf life.
- Non-destructive testing, using electron linear accelerators to generate X-rays for inspecting high-density structures in civil engineering and aerospace.
- Additive manufacturing, where electron beams cure and crosslink materials for rapid prototyping.
- Environmental applications, providing sustainable solutions for waste treatment and pollution control.
- Pharmaceutical production, especially for sterilizing sensitive products and formulating biologics.
The anatomy of an accelerator enables these diverse applications by delivering precise, high-energy beams tailored to each process.
Control and Safety
Monitoring
Operators rely on advanced monitoring systems to ensure the safe and efficient operation of e-beam accelerators. These systems track critical beam parameters and system status in real time. The monitoring setup uses several technologies:
- Three integral ionization chambers (ICs) measure the irradiation dose.
- Two multistrip ionization chambers (MSICs) monitor the beam position and the uniformity of the lateral profile.
- Beam sensors and instrumentation electronics register electrical signals from the beam.
- Dedicated software processes, displays, and stores data for analysis.
These tools help operators detect any irregularities quickly. Real-time feedback allows for immediate adjustments, which maintains consistent performance and safety.
Interlocks
Interlock systems form a vital layer of protection in e-beam machines. These systems prevent unsafe operation and protect both workers and equipment. Interlocks respond automatically to unsafe conditions, such as unauthorized access or equipment faults. The table below outlines key functions and industry standards:
| Functionality Of Interlock Systems | Industry Standards |
|---|---|
| Automatically shuts off radiation emission | Required by state or federal regulations |
| Prevents worker exposure to high radiation | Governed by NRC and FDA guidelines |
| Activated by access point openings | Includes door pressure sensors and motion detectors |
| Controls access to radiation areas | Utilizes interlock keys for safety monitoring |
Interlocks use sensors at doors and access points. If someone opens a door during operation, the system halts the beam instantly. Regulatory bodies such as the NRC and FDA set strict guidelines for these safety features.
Shielding
Shielding protects both operators and the environment from harmful radiation. Engineers design e-beam machines with thick barriers made from lead, concrete, or steel. These materials absorb stray electrons and secondary radiation. Shielding surrounds the acceleration chamber, beamline, and target area. Proper shielding ensures that radiation levels outside the machine remain well below safety limits.
Effective shielding, combined with real-time monitoring and robust interlocks, creates a comprehensive safety system for every e-beam accelerator.
Supporting Systems
Cooling
E-beam accelerators generate significant heat during operation. Engineers use advanced cooling systems to manage this thermal load and protect sensitive components. High-power machines, such as cyclotrons, require multiple temperature controls and pressure settings to maintain stability. The following table summarizes common cooling methods:
| Cooling Method | Description |
|---|---|
| Liquid-Liquid Configuration | A pump recirculates coolant with facility water in a heat exchanger to dissipate heat. |
| Compressor-Based Chiller | Chills coolant below ambient temperature, absorbing heat and releasing it to the environment. |
| Combination Systems | Uses both liquid cooling and thermoelectric coolers for effective thermal management. |
Operators select cooling systems based on the accelerator’s power level and operational demands. Proper cooling ensures consistent performance and extends equipment life.
Effective cooling prevents overheating, reduces downtime, and safeguards the integrity of the accelerator.
Vacuum
A high-quality vacuum inside the accelerator chamber is essential for reliable electron beam operation. The vacuum prevents air molecules from interfering with the beam and the welding process. The table below highlights the importance of maintaining a strong vacuum:
| Importance Of Vacuum | Description |
|---|---|
| Prevents holes | A vacuum of 10 ppm or better avoids defects like holes in welds. |
| Ensures structural integrity | Maintains the integrity of welded joints. |
| Enhances weld quality | Higher vacuum levels improve joint construction and overall weld quality. |
If vacuum levels drop, several problems can occur. Poor vacuum leads to air interaction with molten material, causing porosity and defects in welding. Beam instability may result, producing uneven energy distribution and incomplete fusion.
Maintenance
Routine maintenance keeps e-beam machines operating safely and efficiently. Operators follow a schedule to monitor system health and address potential issues. Key maintenance procedures include:
| Maintenance Procedure | Description |
|---|---|
| Monitor vacuum pressure | Regularly check pressure levels to ensure normal operation. |
| Check cryo temperature | Maintain cryo temperature within specified limits. |
| Log values | Record vacuum pressure and temperature to track trends. |
| Defrost cryopump | Periodically defrost to clean baffles and improve efficiency. |
| Rebuild cryopump/compressor | Replace or rebuild every three to five years for optimal performance. |
Operators who follow these steps help prevent system failures and maintain high-quality results. Regular attention to cooling, vacuum, and maintenance supports the long-term reliability of e-beam accelerators.
Conclusion
Each component of an e-beam accelerator plays a vital role in both performance and safety:
| Component | Functionality Contribution | Safety Measures |
|---|---|---|
| Electron Gun | Forms and accelerates the electron beam | Requires strict safety protocols |
| Safety Protocols | Protects operators and system integrity | Includes interlocks and shielding |
A clear understanding of this anatomy enables precise, reliable sterilization and supports environmental sustainability. Professionals who seek further training, such as accelerator safety courses, can optimize operations and maintain high safety standards.
FAQ
What Is the Main Purpose of an E-Beam Accelerator?
An e-beam accelerator generates high-energy electron beams. These beams sterilize medical devices, treat materials, and support research. The machine delivers precise energy to specific targets.
How Does the Accelerator Ensure Safety for Operators?
The accelerator uses interlocks, shielding, and real-time monitoring. These systems prevent accidental exposure to radiation. Operators follow strict safety protocols at all times.
Why Is Vacuum Important in E-Beam Machines?
A strong vacuum removes air molecules from the chamber. This prevents electrons from scattering and ensures a stable, focused beam. The vacuum also improves weld quality and system reliability.
Can E-Beam Technology Treat All Types of Materials?
E-beam technology works best for low to medium-density materials. It may not penetrate very dense products. Operators select the right energy level for each application.
What Maintenance Does an E-Beam Accelerator Require?
Operators check vacuum pressure, monitor cooling systems, and inspect safety features. Regular maintenance includes cleaning, logging data, and replacing worn parts. These steps keep the machine reliable and safe.
