What Is a Gamma Sterilization Machine and How Does it Work?

gamma-sterilization-machine

A gamma sterilization machine is a specialized device designed to sterilize products by exposing them to gamma irradiation. This method uses high-energy gamma rays, typically emitted by a radioactive isotope like Cobalt-60, to eliminate harmful microorganisms such as bacteria, viruses, and fungi. The process ensures effective sterilization by disrupting the DNA of these microorganisms, rendering them incapable of reproduction or survival.

Gamma irradiation plays a critical role in industries requiring high levels of sterility. It offers better penetration compared to other methods, making it ideal for complex devices and materials. Additionally, it leaves no chemical residue and works independently of temperature or pressure conditions, ensuring safe and reliable sterilization for diverse applications.

According to global data, gamma sterilization accounts for 40.5% of sterilized products, highlighting its widespread adoption. This method surpasses electron beam sterilization machines and other alternatives in terms of versatility and effectiveness.

Key Takeaways

  • Gamma sterilization machine uses strong gamma rays to kill germs.
  • This method works well for cleaning medical tools and medicines.
  • It goes deep and leaves no harmful chemicals behind.
  • Cobalt-60 is the main source of these gamma rays.
  • It ensures the process is safe and works every time.
  • Many industries like healthcare, food, and cosmetics use this method.
  • It is trusted because it is reliable and effective.
  • The process makes products very clean and safe to use.
  • It lowers infection risks and keeps products in good condition.

What Is a Gamma Sterilization Machine?

Definition and Purpose

gamma sterilization machine is a device designed to ensure the sterility of various products by using gamma irradiation. This method employs high-energy gamma rays, a form of electromagnetic radiation, to eliminate harmful microorganisms such as bacteria, viruses, and fungi. The primary source of these gamma rays is Cobalt-60, a radioactive isotope known for its ability to emit high-energy photons. By disrupting the DNA of microorganisms, gamma sterilization ensures that they cannot reproduce or survive, making products safe for use.

The purpose of a gamma sterilization machine extends across multiple industries. It plays a critical role in sterilizing medical devices, pharmaceutical products, and even certain food items. This process ensures that healthcare products remain safe and effective, significantly reducing the risk of infections during medical procedures. Additionally, gamma sterilization is widely used for packaged goods, cosmetics, and agricultural applications, ensuring safety and quality in diverse fields.

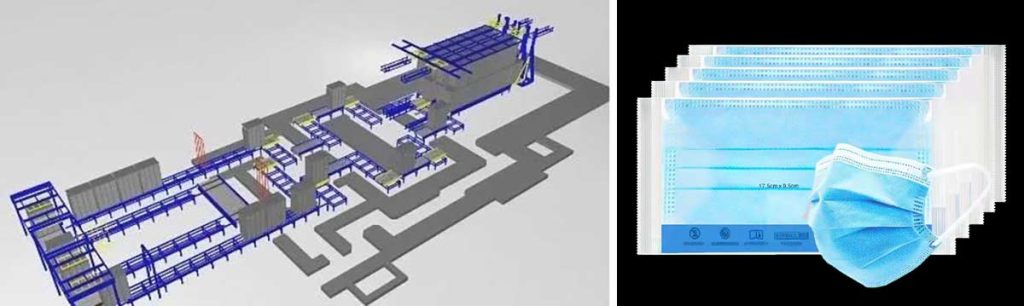

Key Components

A gamma sterilization machine consists of several key components that work together to achieve effective sterilization. These include:

  1. Preparation of Items: Products are cleaned and packaged in protective containers that allow gamma rays to penetrate effectively.
  2. Loading System: Items are placed on racks or conveyors within the sterilization chamber to ensure even exposure to radiation.
  3. Gamma Ray Source: Cobalt-60 serves as the primary source of gamma rays, emitting high-energy photons for sterilization.
  4. Shielded Chamber: The sterilization chamber is heavily shielded to prevent radiation leakage and ensure operator safety.
  5. Dosimetry System: Dosimeters measure the radiation dose to confirm that the required level of sterilization is achieved.
  6. Control and Monitoring Systems: These systems regulate radiation levels, exposure time, and other parameters to maintain process accuracy.
  7. Quality Assurance: Post-sterilization validations ensure that the products meet sterility standards, with detailed documentation for compliance.

Each component plays a vital role in ensuring the machine operates efficiently and safely, delivering consistent sterilization results.

Role of Gamma Irradiation in Sterilization

Gamma irradiation is the core mechanism behind the sterilization process in a gamma sterilization machine. It uses high-energy gamma rays to penetrate materials and disrupt the genetic material of microorganisms. This disruption damages their DNA or RNA, effectively killing them or rendering them incapable of reproduction. As a result, gamma irradiation ensures that products are free from harmful pathogens.

Gamma irradiation is particularly effective because it can penetrate deep into materials, even through packaging. This makes it ideal for sterilizing complex medical devices, pharmaceuticals, and tissue grafts. The process is predictable and efficient, with minimal waste, ensuring safety and reliability in sterilization.

The dosage of gamma irradiation is measured in kilogray (kGy) units. For most applications, a dose of 25 kGy achieves a sterility assurance level (SAL) of 10⁻⁶, meaning there is only a one in a million chance of a viable microorganism remaining. This high level of sterility is crucial for industries where safety and precision are paramount.

How Does a Gamma Sterilization Machine Work?

Source of Gamma Rays (Cobalt-60)

Cobalt-60 serves as the primary source of gamma rays in gamma sterilization machine. This radioactive isotope is widely used due to its unique properties:

  • It emits high-energy gamma rays that effectively kill microorganisms.
  • It has a stable half-life of 5.27 years, ensuring consistent performance over time.
  • It is produced in nuclear reactors by exposing cobalt metal to neutron radiation, making it readily available for industrial use.

Cobalt-60 is preferred over other isotopes like Cesium-137 because it is easier to manufacture and handle. To ensure safety, the radioactive source is securely shielded within the machine. Thick concrete barriers and water pools are commonly used to prevent radiation leakage, protecting both operators and the environment.

The Gamma Radiation Sterilization Process

The gamma radiation sterilization process involves several carefully controlled steps to ensure effective sterilization:

  1. Preparation of Items: Products are cleaned and packaged in materials that allow gamma rays to penetrate.
  2. Loading: Items are placed on racks or conveyors inside the sterilization chamber.
  3. Irradiation: The chamber is exposed to gamma rays emitted by Cobalt-60.
  4. Dosimetry: Dosimeters measure the radiation dose to confirm the required level of exposure.
  5. Radiation Exposure: Items remain in the chamber for a calculated duration to achieve sterility.
  6. Quality Control: Parameters like dose and exposure time are monitored throughout the process.
  7. Sterilization Validation: Samples are tested to ensure the process meets sterility standards.
  8. Documentation and Release: The entire process is documented for compliance, and sterilized items are released for use.

This sterilization process is highly efficient and ensures uniform exposure, even for complex or densely packed items.

Mechanism of Action on Microorganisms

Gamma radiation sterilization works by emitting high-energy photons that penetrate materials and disrupt the molecular structure of microorganisms. The ionization caused by gamma rays damages the DNA or RNA of bacteria, viruses, and fungi. This damage prevents microorganisms from reproducing or surviving, effectively sterilizing the items.

Gamma irradiation is particularly effective because it can penetrate deep into materials, even through packaging. This makes it ideal for sterilizing medical devices, pharmaceuticals, and other sensitive products. The process achieves a sterility assurance level (SAL) of 10⁻⁶, meaning there is only a one in a million chance of a viable microorganism remaining.

While gamma sterilization is highly effective, it may cause minor changes to the physical properties of certain materials. For example, discoloration or texture alterations can occur, especially with prolonged exposure. Manufacturers must consider these effects during sterilization validation to ensure product integrity.

Applications of Gamma Sterilization

Medical Devices and Equipment

Gamma radiation sterilization plays a vital role in the medical industry by ensuring the sterility of medical devices. This sterilization process is particularly effective for pre-packaged sterile devices, as it eliminates harmful microorganisms without leaving chemical residues. The method is compatible with a wide range of materials, including plastics and metals, making it suitable for diverse devices. Its deep penetration capability ensures thorough sterilization, even for complex or densely packed items.

Common medical devices sterilized using gamma radiation include:

The medical industry benefits from gamma sterilization due to its consistency and reliability. It maintains the integrity of devices, ensuring they remain functional and safe for use. This process also complies with strict regulatory standards, providing a transparent sterilization history that enhances patient safety.

Pharmaceutical Products

Gamma radiation sterilization is essential for ensuring the safety and efficacy of pharmaceutical products. It eliminates microorganisms while preserving the integrity of sensitive formulations. This method is particularly effective for heat-sensitive items, as it operates at ambient temperatures. The absence of chemical residues further ensures product safety.

Pharmaceutical products commonly sterilized using gamma radiation include:

  • Blood collection tubes and drug products
  • Eye droppers, topical ointments, and aluminum hydroxide formulations

The high penetration power of gamma radiation ensures uniform sterilization, even for densely packed pharmaceutical items. This process provides better assurance of sterility compared to aseptic processing, making it a preferred choice in the medical industry. By maintaining product integrity and ensuring patient safety, gamma sterilization supports the production of reliable healthcare solutions.

Food and Packaging Industries

Gamma radiation sterilization has gained significant adoption in the food industry due to its ability to enhance food safety and extend shelf life. This method effectively eliminates bacteria, molds, and other pathogens without altering the nutritional value or taste of food products. It is particularly useful for pre-packaged items, as it reduces contamination risks during handling and transport.

EvidenceDescription
Adoption of Gamma SterilizationThe increasing adoption of gamma sterilization in the food industry to ensure food safety and extend shelf life is driving the growth of the Food Products segment.

In the packaging industry, gamma radiation sterilization ensures that materials used for food and medical devices remain free from contaminants. This process is highly efficient and leaves no residues, making it a reliable choice for maintaining hygiene standards. By supporting the production of safe and high-quality products, gamma sterilization continues to play a crucial role in these industries.

Other Industrial Applications

Gamma radiation sterilization extends beyond healthcare and food production, offering significant benefits to various industries. Its ability to penetrate dense materials and ensure uniform sterilization makes it a versatile solution for numerous applications.

Several industries rely on gamma sterilization to maintain product safety and quality:

  • Packaged goods, including tetrapacks and bottle teats for premature babies, benefit from gamma sterilization. This process ensures these items remain free from harmful microorganisms.
  • The cosmetics industry uses gamma radiation sterilization to treat raw materials and finished products. This guarantees that cosmetics meet safety standards without compromising their quality.
  • Agricultural applications, such as sterilizing seeds and soil, utilize gamma radiation to eliminate pathogens and pests. This enhances crop yield and reduces the need for chemical treatments.
  • Pharmaceutical packaging and raw materials undergo gamma sterilization to ensure sterility. This process is particularly effective for densely packed items, maintaining the integrity of sensitive materials.
  • Wine corks and food packaging also benefit from gamma sterilization. The process eliminates contaminants while preserving the physical properties of these materials.

Gamma radiation sterilization offers unique advantages for these industries. Its deep penetration capabilities allow it to sterilize frozen materials and complex items effectively. Unlike other methods, such as an electron beam sterilizer, gamma sterilization can treat products of varying densities without compromising their quality.

The versatility of gamma sterilization ensures its continued adoption across diverse fields. By providing a reliable and efficient solution, this method supports industries in delivering safe, high-quality products to consumers.

Gamma sterilization remains a preferred choice for industries requiring precise and thorough sterilization. Its ability to adapt to different materials and packaging types highlights its importance in maintaining safety and hygiene standards.

Conclusion

A gamma sterilization machine ensures the sterility of products by using high-energy gamma rays to eliminate harmful microorganisms. Its ability to penetrate deeply into materials makes it ideal for sterilizing medical devices, pharmaceuticals, and food packaging. The sterilization process is consistent and reliable, ensuring every treated item meets stringent safety standards, which enhances patient safety.

The benefits of gamma sterilization include better penetration depth, effectiveness against a wide range of microorganisms, and the ability to sterilize pre-packaged devices without altering their material properties. However, it has limitations, such as being unsuitable for liquid products and high-fat foods. Some materials may experience discoloration or texture changes during the process. Despite these challenges, gamma sterilization remains a preferred method due to its efficiency and minimal environmental impact.

Industries rely on gamma sterilization to maintain safety and sterility. Its role in ensuring the integrity of medical devices and other products highlights its importance in protecting public health and meeting regulatory standards.
