RF linear accelerators use radiofrequency (RF) electromagnetic fields, especially in the microwave range, to accelerate particles such as electrons and ions to high speeds. This technology supports both high energy physics and advanced research and development. The frequency range for RF accelerators spans from VHF/UHF to above X-band, as shown below:
| Frequency Band | Frequency Range | Applications |
|---|---|---|
| VHF / UHF | ~30 – 300 MHz | Cyclotrons, heavy-ion machines |
| Sub-GHz | ~200 – 800 MHz | Proton & ion linacs |
| L-band | ~1.0 – 1.5 GHz | Electron accelerators |
| S-band | ~2.0 – 4.0 GHz | Medical & industrial accelerators |
| X-band | ~8 – 12 GHz | Compact linacs |
| Above X-band | >12 GHz | Advanced concepts |
The global market for linear accelerators continues to grow rapidly, driven by applications in healthcare, manufacturing, and research. Over 340 units serve industrial facilities, and the market is projected to reach $4.8 billion by 2033.
These accelerators generate particle beams for cancer therapy, electron beam sterilization, and industrial processing, showing their vital role in technology development.
Key Takeaways
- RF linear accelerators use microwave technology to accelerate particles, making them essential for medical and industrial applications.
- These accelerators provide precise control over particle energy, enhancing the effectiveness of treatments like cancer therapy.
- Synchronization of RF fields with particle velocity is crucial for maximizing energy gain and ensuring efficient operation.
- RF cavities are designed for resonance, amplifying electromagnetic waves to produce powerful particle beams.
- The growing market for RF linear accelerators highlights their importance in advancing technology and improving safety in various industries.
RF Linear Accelerators
Definition
RF linear accelerators, often called linacs, use radiofrequency electromagnetic fields to accelerate charged particles in a straight line. This type of accelerator stands out from others because it does not use circular paths. Instead, it relies on a vacuum chamber where particles travel in a direct route. The structure of linear accelerators allows them to reach higher speeds for heavy ions compared to ring-type accelerators. Electrons benefit from this design since they lose less energy than in circular accelerators, where arcs cause significant energy loss.
Key components define the structure and operation of linear accelerators:
- Couch (Patient Positioning System)
- Electronic Portal Imaging Device (EPID)
- Gantry
- kV Imaging System
- Stand
- Accelerating Waveguide
- Bending Magnet
- Circulator
- Cooling System
- Electron Gun
- Energy Selector
- Klystron or Magnetron
- Treatment Head
- Waveguide
These parts work together to create a controlled environment for accelerating particles efficiently.
Main Function
The main function of RF linear accelerators is to accelerate charged particles, such as ions and electrons, along a linear path using radiofrequency electric fields. This process generates particle beams with high energy, which are essential for many scientific and industrial applications. In high energy physics, linear accelerators serve as injectors for larger machines, helping to boost particles to the required speeds for experiments.
In research and development, these accelerators play a vital role in advancing technology. They support the creation of particle beams for cancer therapy, electron beam sterilization, and industrial processing. The ability to produce precise and powerful beams makes linear accelerators a cornerstone of modern accelerator technology and development.
Acceleration Principle
Electric Fields
RF linear accelerators rely on the power of electric fields to move charged particles forward. These electric fields come from radiofrequency sources, which generate oscillating electromagnetic waves inside the accelerator. When a charged particle, such as an electron, enters the accelerator, it passes through a series of gaps between metal structures called cavities. Each cavity receives a carefully timed RF voltage. As the particle crosses each gap, it encounters an electric field that pushes it forward, increasing its speed.
In 1928, R. Wideroe showed that applying a radio frequency voltage to separated sections of a tube could accelerate electrons. This method allowed electrons to gain energy every time they passed through a gap with the right electric field. Modern linear accelerators use alternating electric fields in adjacent cavities. The fields in these cavities are out of phase, so the particle always finds itself in a position to receive a push forward. This setup ensures that the particle gains energy with each step, creating a cumulative effect.
Note: The synchronization of the RF fields with the particle’s motion is crucial. If the timing is off, the particle may not receive the full benefit of the accelerating field.
This principle allows linear accelerators to produce high-quality beams for use in medicine, industry, and research. The technology behind these accelerators continues to evolve, supporting new developments in particle acceleration.
Energy Gain
The energy gained by a particle in a linear accelerator depends on several factors. Engineers calculate the energy gain per unit length using specific equations that relate the accelerating voltage, shunt impedance, and RF power loss. The following table summarizes these relationships:
| Equation | Description |
|---|---|
| $$ {V}_{\mathrm{acc}}^2= RP $$ | Relates accelerating voltage to shunt impedance and RF power loss. |
| $$ R=\left{R/Q\right}Q $$ | Shows how shunt impedance can be divided into cavity shape factor and quality factor. |
| $$ Q=\omega U/P $$ | Defines quality factor in terms of stored energy and RF power loss. |
| $$ P/l=\left({V}_{\mathrm{acc}}^2/l\right)/\left{\left(R/Q\right)Q\right} $$ | Calculates RF power loss per meter based on accelerating voltage and shunt impedance. |
Most clinical electron beams come from compact linear accelerators. These machines deliver electrons with energies in the 5–20 MeV range. RF accelerators can easily reach electron energies of 10 MeV, making them suitable for medical and industrial applications. The ability to control energy gain allows scientists and engineers to tailor the beam for specific uses.
- Most clinical electron beams are produced by compact linear accelerators.
- These accelerators deliver electrons with energies in the 5–20 MeV range.
- RF accelerators can produce electrons with energies easily reaching 10 MeV.
Scaling up RF linear accelerators for higher energy applications presents several challenges. Engineers must address issues related to beam quality, power efficiency, and the need for advanced technology. They also face difficulties with positron acceleration, beamstrahlung, and the staging of multiple plasma acceleration cells. Emittance control, jitter, and scattering in plasma add further complexity to the development process.
| Accelerator Type | Power Consumption | Efficiency | Beam Quality |
|---|---|---|---|
| Energy Recovery LINACs | Reasonable | High | High |
| Conventional Accelerators | High | Moderate | Moderate |
The choice of accelerator type affects power consumption and efficiency. Energy recovery LINACs offer high efficiency and beam quality, while conventional accelerators consume more power and provide moderate results. These factors influence the design and operation of modern RF linear accelerators.
Microwaves in Linear Accelerators
RF Cavities
RF cavities play a central role in the operation of linear accelerators. These metallic chambers generate and sustain oscillating electric fields that accelerate charged particles. Engineers design each cavity for resonance, which amplifies the intensity of electromagnetic waves inside the chamber. A high-power klystron supplies energy to the cavity, modulating electron beams at a frequency of 400 MHz. The precise shape of the cavity ensures that the oscillating field matches the required frequency for optimal acceleration.
The resonance effect in RF cavities allows linear accelerators to deliver consistent and powerful beams for medical and industrial applications.
Materials and geometry influence the performance of RF cavities. Copper provides excellent conductivity, while high purity niobium sheets form thin-walled shells for advanced superconducting cavities. Technicians weld these shell components together to create the final structure.
| Material | Geometry Description |
|---|---|
| Copper | Conductive material used in RF cavities. |
| Niobium | High purity sheets formed into thin walled shells (1–3 mm) by stamping. |
Thin-walled shells made from niobium improve efficiency and support the development of cutting-edge accelerator technology.
- RF cavities create electromagnetic fields to accelerate electrons and ions.
- Each cavity receives energy from a klystron, tuned for precise timing.
- Resonant shapes enhance the intensity of oscillating fields.
Synchronization
Synchronization ensures that the phase of the RF field matches the velocity of the particles inside linear accelerators. Engineers use beam-induced signals in superconducting cavities to achieve this alignment. At facilities such as the Spallation Neutron Source, a high-intensity drifting beam excites the RF field in an unpowered cavity. This process allows accurate measurement of the synchronous phase and calibration of the cavity’s pickup probe.
Precise synchronization guarantees that particles receive maximum energy during acceleration. The phase change caused by beam acceleration and cavity detuning is computed and adjusted in real time. This technique supports stable beam dynamics and maintains the quality of beams produced by linear accelerators.
Synchronization between particle velocity and RF field phase is essential for efficient operation and continued development of accelerator technology.
Linear accelerators rely on advanced synchronization methods to deliver high-quality beams for research, medicine, and industry.
Applications and Impact
Cancer Therapy
RF linear accelerators have transformed cancer therapy by delivering precise and controlled radiation doses. Hospitals and clinics use these machines to target tumors with high accuracy, minimizing damage to healthy tissue. The technology allows for advanced treatments such as proton and heavy-ion therapy, which require exact energy control. The following table highlights the main advantages of using RF linear accelerators in cancer therapy:
| Advantage | Description |
|---|---|
| Precise Energy Control | Enhances targeting accuracy critical for treatments like proton and heavy-ion therapy. |
| Higher Efficiency | Converts more energy into high-frequency signals, reducing power consumption and costs. |
| Compact Design | Smaller designs due to less heat generation, valuable in space-constrained medical environments. |
| Fast Start-Up Times | Rapid operational readiness, crucial in time-sensitive medical settings. |
| Increased Reliability | Longer lifespan and less maintenance compared to traditional technologies, ensuring consistent performance. |
Medical professionals rely on these features to improve patient outcomes and streamline treatment processes.

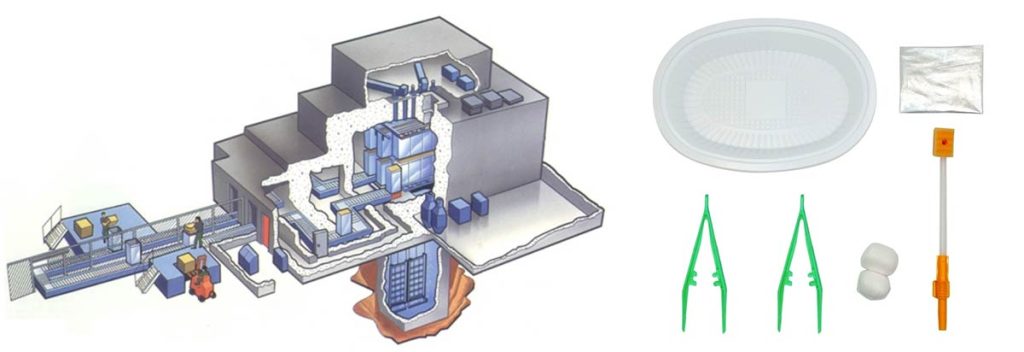

Electron Beam Sterilization

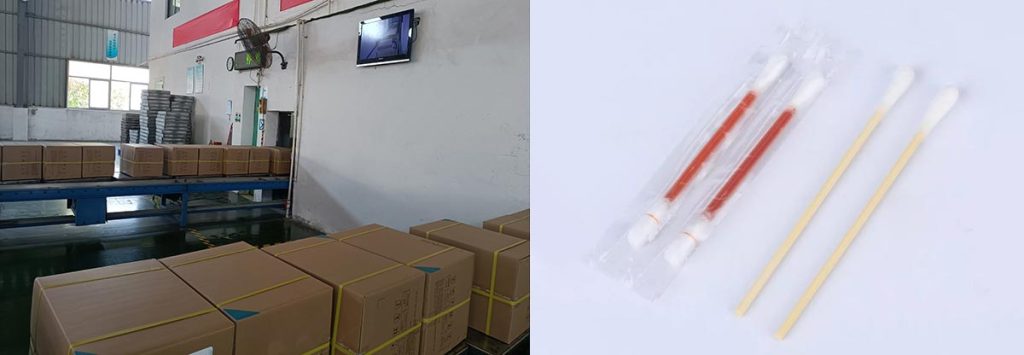

Electron beam sterilization stands out as a key application of linear accelerators in the medical device industry. This method uses high-energy electrons to disrupt the genetic material of microorganisms, effectively eliminating pathogens on medical devices. The process ensures product safety without leaving harmful residues, making it a reliable and environmentally friendly sterilization technique. Facilities often use electron beam irradiation equipment to achieve rapid and thorough sterilization.
- Rapid sterilization process reduces turnaround times, streamlining production.
- Ability to sterilize products in their final packaging, simplifying the process and reducing contamination risk.
- Compatibility with a wide range of medical devices, including heat-sensitive and complex instruments.
- Need for effective sterilization and regulatory compliance.
- Increasing demand for high-quality and safe medical devices.
- Operational advantages of e-beam sterilization.
Manufacturers benefit from these advantages, which support the development of safer and more efficient healthcare products.
Industrial Uses
Industries worldwide adopt RF linear accelerators for a variety of processes that require precision and safety. The technology supports applications such as sterilization, food irradiation, and materials modification. The table below summarizes the main industrial uses:
| Application | Description |
|---|---|
| Sterilization of medical equipment | Controlled doses of radiation for sterilization processes. |
| Food irradiation | Use of radiation to extend shelf life and ensure safety. |
| Polymer cross-linking | Modification of materials for enhanced properties. |
| Security scanning | Detection of concealed items using radiation. |
RF linear accelerators also play a vital role in non-destructive testing, cargo inspection, and the production of medical isotopes. Their adoption continues to grow due to regulatory compliance and advancements in automation. Industries prefer these accelerators over older sources like cobalt-60 because of improved safety, environmental compliance, and operational efficiency. Scientific research facilities, including synchrotrons and free-electron lasers, depend on linear accelerators to produce high-quality beams for advanced experiments and technology development.
Conclusion
RF linear accelerators use microwave-driven cavities to accelerate charged particles, producing high-quality beams for medicine, industry, and research.
- These systems rely on precise synchronization and energy gain to maximize performance.
- Key principles include efficient cavity design, phase alignment, and advanced diagnostics.
- Recent technology advances, such as superconducting RF structures and AI integration, continue to improve reliability and expand applications.
RF linear accelerators support safer isotope production, reduce waste, and enable breakthroughs in cancer therapy and electron beam sterilization.
FAQ
What Is the Main Advantage of Using RF Linear Accelerators?
RF linear accelerators provide precise control over particle energy. This feature allows scientists and engineers to target specific applications, such as cancer therapy and sterilization, with high accuracy and efficiency.
How Do RF Cavities Work in a Linear Accelerator?
RF cavities create oscillating electric fields. These fields push charged particles forward as they pass through each cavity. Engineers design the cavities to match the frequency needed for efficient acceleration.
Why Is Synchronization Important in Linear Accelerators?
Synchronization ensures that the RF field phase matches the particle velocity. This alignment allows particles to gain maximum energy at each stage. Without proper synchronization, the accelerator loses efficiency.
Can RF Linear Accelerators Be Used for Industrial Applications?
Yes. Industries use RF linear accelerators for sterilization, food irradiation, and materials processing. These accelerators offer safe, reliable, and efficient solutions for many industrial needs.
What Safety Measures Exist for Operating RF Linear Accelerators?
Operators follow strict safety protocols. Facilities use shielding, interlocks, and monitoring systems to protect staff and the environment. Regular maintenance and training help ensure safe operation.
