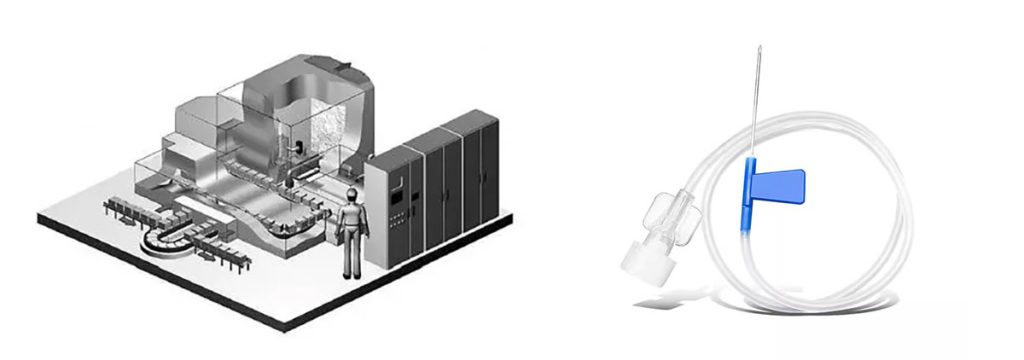

Understanding the product size and density limits of e-beam sterilization equipment remains essential for maintaining the effectiveness of electron beam sterilization in medical applications. Researchers found that e-beam sterilization works best for low-density items. Larger or denser products often require changes in packaging or dual-pass processing. These limits influence sterilization safety, regulatory compliance, and overall material compatibility. Individuals should evaluate their product’s dimensions and density before choosing e-beam irradiation equipment for electron beam sterilization.
- E-beam sterilization is most effective for low-density products.
- Dual-pass processing helps accommodate different packaging sizes.
- Larger and denser products pose challenges, requiring packaging adjustments.
Key Takeaways
- E-beam sterilization works best for low-density products. Choose items that fit this criterion for effective sterilization.
- Larger or denser products may need special packaging or dual-pass processing. Adjust your approach to ensure uniform dose distribution.
- Conduct thorough dose mapping to confirm that all areas of a product receive the correct radiation dose. This step is crucial for effective sterilization.
- Select materials with proven compatibility to avoid damage during e-beam sterilization. This choice helps maintain product integrity.
- Exceeding size or density limits can lead to incomplete sterilization. Always follow recommended guidelines to ensure safety and effectiveness.
Size and Density Limits
Maximum Product Size
Manufacturers design e-beam sterilization equipment to handle a range of product sizes, but there are clear upper limits. The maximum size a product can have depends on the energy and power of the electron beam, as well as the configuration of the equipment. Recent advancements have led to larger, panoramic systems that can process entire pallets of medical devices at once. The following table highlights some of these technological improvements:
| Advancement Type | Description |
|---|---|
| Equipment Size | Panoramic, industrial-sized equipment capable of pallet-level sterilization. |
| Energy and Power | Equipment delivers high energy (10 MeV) and high power (≥500 kW). |
| Processing Throughput | Greater processing throughput and reliability achieved. |
| Transition from Gamma to E-Beam | Reconfiguring product packaging and increasing maximum dose qualifications enhances effectiveness. |
These innovations allow for greater flexibility in processing larger batches of surgical instruments and medical products. However, even with these improvements, the electron beam has a limited penetration depth. Oversized devices may not receive a uniform dose, which can compromise sterilization validation and regulatory compliance.
Density Thresholds
Density plays a critical role in electron beam sterilization. The ability of the electron beam to penetrate a product depends on both its size and density. For single-sided processing, up to approximately 4 grams of product per square centimeter can be processed before the dose uniformity ratio (DUR) exceeds acceptable limits. The optimal mass between two beams for efficient processing is around 8.8 grams per square centimeter, resulting in a low DUR of about 1.4. Ideally, the areal density should be close to 8.5 grams per square centimeter for the best results.
- For single-sided irradiation: up to 4 g/cm²
- For dual-sided irradiation: optimal at 8.8 g/cm²
- Ideal areal density: around 8.5 g/cm²
Manufacturers must test and validate these limits for each product. The process involves defining the minimum dose required for effective sterilization, establishing the maximum dose the product can tolerate, calculating the DUR, and conducting dose mapping. The following table outlines these steps:
| Step | Description |
|---|---|
| 1 | Define the minimum dose (Dmin) required to achieve a selected Sterility Assurance Level (SAL). |
| 2 | Establish the maximum dose (Dmax) that the product can acceptably be exposed to. |
| 3 | Calculate the dose uniformity ratio (DUR) for the specific processing configuration. |
| 4 | Conduct dose mapping to ensure uniformity and predictability of dose distribution. |
Dose mapping is specific to each product and packaging configuration. Minimizing variability among shippers and reducing the amount of testing required for process qualification (PQ) dose mapping are essential for efficient and reliable electron beam sterilization.
Why Limits Matter?
Adhering to size and density limits is crucial for several reasons:
- The penetration of electron beam is limited compared to gamma rays, which affects dose distribution.
- The maximum penetration depends on both the density and size of the product, which can lead to inefficient sterilization if not properly managed.
- Larger or denser products may receive uneven doses, making careful dose mapping necessary to ensure compliance with sterilization standards.
Sterilization technology and regulations are both complex and extensive. Despite the diversity in methodology, conventional terminal sterilization methods originally developed for metallic, ceramic, and chemically stable polymeric implants present barriers to sterilizing labile degradable functional polymers and tissue grafts for regenerative medicine applications. To preserve the chemical, structural and mechanical integrity of the polymer-based implant and its surgical handling and in vivo degradation/drug release profiles, a salient choice of terminal sterilization modality should be made based on an understanding of both the unique nature of the polymer and the pros/cons of each sterilization method and associated regulatory classification.
Product geometry and packaging also influence the effectiveness of e-beam irradiation. Complex shapes, such as long, narrow lumens or blind holes, can create stagnant zones where the sterilant struggles to reach. Packaging with the wrong porosity or made from dense materials can block the flow of sterilant or skew the radiation dose. The following table summarizes these factors:
| Factor | Influence on E-beam Sterilization |
|---|---|
| Geometry | Ensures good diffusion of sterilants into complex assemblies |
| Packaging | Maintains seal integrity and permeability under pressure changes |
| Complex Shapes | Long, narrow lumens and blind holes create stagnant zones where sterilant struggles to reach |
| Packaging Issues | Wrong porosity or dense materials can block sterilant flow or skew radiation dose |
Cost is another important consideration. The cost of e-beam sterilization is directly related to the amount of radiation required, measured in kilogray (kGy). More kGy means longer facility time, which increases costs. Designing products within the recommended size and density limits helps minimize unnecessary radiation doses and reduces costs. The following chart shows how price per cubic foot increases as box height decreases for e-beam sterilization:
Case studies highlight the importance of adhering to these limits. For example, electron beam sterilization has a dose-dependent effect on the properties of PTFE, with yield stress reductions ranging from 35% to 90% depending on the radiation dose. Proper packaging, especially in an oxygen-free environment, can significantly reduce degradation, allowing PTFE to retain yield stress up to 46 kGy with only a 10% reduction at 60 kGy.
By understanding and respecting the size and density limits of e-beam irradiation, manufacturers can achieve effective sterilization, maintain material compatibility, and ensure the safety and performance of medical devices.
Material Compatibility
Suitable Materials
E-beam sterilization equipment supports a wide range of materials, making it a preferred choice for many medical devices and surgical instruments. Manufacturers select materials based on their ability to withstand irradiation without losing essential properties. Plastics with chemical stability and moderate density often show high compatibility with e-beam irradiation. These materials maintain their structural integrity and do not undergo significant changes in mechanical or optical properties after exposure.
The following table lists common materials proven to be compatible with e-beam sterilization, along with their practical applications and comments on their performance:
| Material | Compatibility Rating | Practical Applications | Resterilization Likelihood | Comments |
|---|---|---|---|---|
| Acrylonitrile butadiene styrene (ABS) | ★★★ | Used in housings and ortho supports. | Likely | High-impact grades are less radiation resistant. |
| Perchlorotrifluoroethylene (PCTFE) | ★★★ to ★★★★ | Used in pharmaceutical packaging. | Likely | Known for moisture barrier properties. |
| Polyvinyl fluoride (PVF) | ★★★ | Protective film on surgical gowns. | Likely | Provides chemical resistance. |
| Polyvinylidene fluoride (PVDF) | ★★★ to ★★★★ | Filtration membranes and catheter tubing. | Likely | Stable and biocompatible. |
| Ethylenetetrafluoro ethylene (ETFE) | ★★★ to ★★★★ | Medical tubing and wiring insulation. | Likely | High flexibility and impact resistance. |
| Polycarbonate (PC) | ★★★ to ★★★★ | Used in IV components and surgical tools. | Likely | Impact resistant and transparent. |
Materials like ABS, PVDF, and ETFE offer reliable performance during electron beam sterilization. These polymers provide chemical stability and resist degradation at the recommended irradiation dose of 25 kGy, which ensures a Sterility Assurance Level of 10–6. E-beam irradiation allows precise control of dose and temperature, which helps preserve the properties of plastics and other compatible materials. Polycarbonate and PCTFE also demonstrate strong resistance to radiation sterilization, making them suitable for repeated resterilization cycles.
Studies show that PMMA tolerates a single irradiation sterilization dose but may experience changes in mechanical and optical properties after repeated exposure. Manufacturers assess chemical, mechanical, morphological, and biological properties to confirm material compatibility with e-beam sterilization equipment.
Tip: Selecting materials with proven compatibility ratings and chemical stability helps ensure effective sterilization and reduces the risk of product damage.
Incompatible Materials
Not all materials respond well to e-beam irradiation. High density and certain chemical structures can limit the effectiveness of electron beam sterilization. Materials with high density absorb more electron energy, which reduces penetration depth and leads to uneven dose distribution. This issue can compromise sterilization validation and product safety.
The table below highlights materials known to be incompatible with e-beam sterilization and explains the reasons for their unsuitability:
| Material Type | Incompatibility Reason |
|---|---|
| Polytetrafluoroethylene | Degrades when exposed to oxygen during e-beam treatment, causing main-chain breakdown. |
| High-density materials | Absorb more electron energy, reducing penetration depth of the e-beam. |
| Large or bulky items | May not fully penetrate, leading to uneven treatment and compromised sterilization. |
| High melting point materials | Can cause localized heating and structural changes, potentially damaging sensitive components. |
| Unstable materials | Can undergo significant chemical changes, leading to degradation and instability. |
| Opaque materials | Block or scatter the electron beam, preventing uniform treatment and effective sterilization. |
High-density materials and specific polymers can experience negative reactions during e-beam irradiation. These reactions include cross-linking, chain scission, and thermal degradation. At higher doses, such as 13 kGy or 26 kGy, materials undergo intensified cross-linking due to the consumption of available oxygen, which is crucial for oxidative degradation. Prolonged exposure to air can deteriorate thermal properties over time, making these materials unsuitable for medical devices that require consistent performance.
Polytetrafluoroethylene (PTFE) serves as a clear example. PTFE degrades when exposed to oxygen during e-beam treatment, resulting in main-chain breakdown and loss of mechanical strength. Large or bulky products may not receive uniform irradiation, which leads to incomplete sterilization and potential safety risks. Opaque materials block or scatter the electron beam, preventing effective sterilization and compromising product quality.
Note: Manufacturers should avoid using high-density, unstable, or opaque materials in products intended for e-beam sterilization. Careful selection of materials ensures compatibility with e-beam sterilization equipment and supports successful sterilization validation.
Risks of Exceeding Limits
Incomplete Sterilization
Exceeding the recommended size or density limits in e-beam sterilization equipment can lead to incomplete sterilization. When products have high density or large dimensions, the electron beam may not penetrate all areas evenly. This uneven irradiation allows some microorganisms to survive, which puts medical devices and surgical instruments at risk. Incomplete sterilization can result in failed sterilization validation and compromise patient safety. Medical facilities rely on complete sterilization to prevent infections and ensure the effectiveness of devices.
A table below shows common causes and consequences of incomplete sterilization:
| Cause | Consequence |
|---|---|
| High density | Uneven irradiation |
| Oversized products | Poor dose distribution |
| Incompatible packaging | Microorganism survival |
| Complex geometry | Stagnant zones |
Note: Dose mapping and careful assessment of density help achieve effective sterilization and maintain material compatibility.
Product Damage
E-beam irradiation can damage products if the limits of electron beam sterilization are exceeded. High doses of radiation may break down chemical stability in sensitive materials. Medical devices made from polymers with low compatibility may experience changes in mechanical properties, discoloration, or loss of function. Radiation sterilization can cause chain scission, cross-linking, or thermal degradation, especially in products with high density or unstable chemical structures.
Medical manufacturers must monitor irradiation levels to protect product quality. Damaged devices may fail during use, which can lead to safety concerns in medical settings. The following list highlights signs of product damage after excessive irradiation:
- Loss of mechanical strength
- Changes in color or transparency
- Warping or deformation
- Reduced performance in surgical instruments
Tip: Selecting materials with proven compatibility and monitoring irradiation doses help prevent product damage and ensure complete sterilization.
Assessing Product Suitability
Evaluation Steps
Evaluating whether a product is suitable for e-beam sterilization equipment involves several key steps. These steps help ensure that sterilization is both effective and safe for medical devices and surgical instruments. The process also supports compliance with sterilization validation standards for medical device sterilization.
- Preliminary Assessment (Bioburden Testing): Determine the initial level of microorganisms on the product. This step helps establish the minimum irradiation dose needed for sterilization.
- Material Test: Assess material compatibility with e-beam irradiation. This test identifies the maximum dose the product can tolerate without losing chemical stability or function.
- Dose Mapping: Place dosimeters throughout the product packaging to measure irradiation distribution. This step ensures that all areas receive the correct dose, especially for products with large size or high density.
- Dose Verification: Regularly verify that the minimum dose remains effective. Facilities often perform this verification quarterly to maintain consistent sterilization.
Industry guidelines provide a framework for these steps. The table below summarizes important parts of these standards:
| Part | Description |
|---|---|
| 1 | Requirements for development, validation, and routine control of a sterilization process for medical devices |
| 2 | Establishing the sterilization dose |
| 3 | Guidance on dosimetric aspects |
Tip: Contract electron beam sterilization facilities often follow these standards to ensure reliable results.
Design Tips
Designing products for electron beam sterilization requires careful planning. Product designers should consider density, material compatibility, and internal configuration to optimize irradiation and minimize risks.
| Characteristic | Horizontal Configuration | Vertical Configuration |
|---|---|---|
| Product Handling | Multiple units deep for low- to medium-density products; fixturing for bulk items | Direct placement on conveyor; suitable for bulk products with vertical beamline |
| Dose Mapping | Simple with fewer beams; may need more product for filled carriers | More complex with multiple beams; requirements vary |
| Flexibility in Product Size | Limited by carrier size restrictions | Limited by conveyor and box flipper size restrictions |
- Accurate dose distribution ensures effective sterilization.
- Dose maps and validation runs confirm uniform irradiation.
- Assess internal product configuration for optimal electron beam penetration.
- Choose materials with proven compatibility and chemical stability.
- Avoid high density or high melting point materials that may hinder irradiation.
Selecting the right method and materials helps maintain product safety and performance. E-beam sterilization works best for low- to medium-density products. Designers should always consider the impact of irradiation on both product and packaging.
Conclusion
E-beam sterilization offers reliable irradiation for medical devices and surgical instruments when manufacturers respect product size, density, and material compatibility. Products with high density or poor chemical stability may not withstand electron beam irradiation or radiation sterilization. Medical teams should follow expert recommendations to ensure safe irradiation:
- Conduct dosimetry audits for high standards.
- Review validation records and inspect equipment calibration.
- Observe staff procedures and adjust processes for dose uniformity.
Proper assessment helps maintain effective sterilization and protects medical devices from damage. Applying these guidelines supports safe irradiation and consistent results.
Consultation with experts ensures that irradiation meets medical standards and preserves product quality.
FAQ
What Is the Maximum Size a Product Can Be for E-Beam Sterilization?
Most e-beam equipment can handle products up to the size of a standard pallet. Larger items may not receive a uniform dose. Manufacturers should check equipment specifications before processing oversized products.
How Does Product Density Affect Sterilization Effectiveness?
Higher density reduces electron penetration. Products with high density may not receive enough irradiation throughout, which can lead to incomplete sterilization. Manufacturers should measure density and consult experts before processing.
Which Materials Are Most Compatible with E-Beam Sterilization?
Materials like polycarbonate, PVDF, and ABS show high compatibility. These plastics maintain their properties after exposure. High-density or unstable materials may degrade or block the electron beam.
Can Complex Shapes Be Sterilized Effectively?
Complex shapes, such as those with long lumens or blind holes, may create areas where the electron beam cannot reach. Dose mapping helps identify these zones and ensures proper sterilization.
What Happens If Size Or Density Limits Are Exceeded?
Exceeding limits can cause incomplete sterilization or product damage. Uneven dose distribution may leave microorganisms alive or degrade sensitive materials. Manufacturers should always follow recommended guidelines.
