Designers face significant challenges when selecting breathable packaging for single-use medical devices and pharmaceuticals. They must balance compatibility with EtO and e-beam sterilization. Flexible packaging often relies on polymers that allow oxygen and moisture to pass through the package, supporting the sterilization process and maintaining package integrity. Medical packaging systems must prevent microbiological contamination and offer reliable performance.
Flexible materials help protect medical products.
Moisture barriers and oxygen transmission rates influence package integrity.
Key Takeaways
Designing breathable packaging requires balancing breathability and barrier protection. This ensures effective sterilization while preventing contamination.
Material selection is crucial. Choose polymers that withstand sterilization methods and maintain their properties after exposure to EtO and E-Beam.
Adhesives play a vital role in maintaining seal integrity. Select adhesives that perform well under both sterilization processes to ensure product safety.
Regulatory standards guide packaging design. Follow guidelines like ISO 11607 to ensure packaging meets safety and performance requirements.
Sustainability is key. Opt for recyclable materials that do not compromise sterilization effectiveness, helping reduce environmental impact.
Key Challenges
Breathability vs. Barrier
Designers of medical and pharmaceutical packaging face a constant trade-off between breathability and barrier protection. Breathable packaging must allow sterilization agents, such as ethylene oxide or oxygen, to penetrate the package and reach the product. At the same time, the packaging must prevent microbial ingress after sterilization and maintain a strong barrier against contaminants. Flexible packaging systems often use polymers that balance these needs, but achieving both high oxygen transmission rates and effective microbial barriers remains difficult.
The packaging must maintain a sterile barrier after sterilization, preventing microbial ingress while allowing sterilization agents to penetrate.
For gas-based sterilization methods, the packaging should allow the sterilant to permeate effectively and then be aerated to remove residual sterilant.
Failure rates can increase when packaging tries to balance breathability and barrier properties for dual sterilization compatibility. For example:
These numbers show that vent bags and header bags have higher failure rates, while pouches and rigid trays perform better in maintaining integrity.
Material Degradation
Material degradation presents a major challenge for packaging exposed to both EtO and E-Beam sterilization. E-beam sterilization uses high-energy electrons to disrupt microorganisms, but this process can also affect the polymers used in flexible packaging. Material compatibility becomes a concern, as e-beam systems have lower penetration capabilities compared to gamma sterilization, which may limit their effectiveness for some packaging types.
Ethylene oxide can cause chemical degradation in packaging materials, especially through the formation of adducts with proteins. For example, studies found that human serum albumin stored in EO-sterilized syringes showed significant degradation, while no such effect appeared in steam-sterilized syringes. Repeated EtO cycles can make materials more rigid and less flexible, reducing their performance and increasing the risk of failure. In contrast, e-beam sterilization often enhances the barrier properties of certain polymer blends and supports faster decomposition in the presence of specific enzymes. This suggests that e-beam sterilization may better preserve the integrity of packaging materials compared to repeated EtO exposure.
Regulatory Standards
Regulatory standards guide the design and validation of breathable packaging for medical devices and pharmaceuticals. These standards ensure that packaging maintains oxygen and moisture transmission rates, supports sterilization efficiency, and preserves seal integrity. The most relevant standards include:
Standard
Description
ISO 11607-1
Outlines design and performance testing requirements for sterile barrier systems.
ISO 11607-2
Focuses on packaging process validation and equipment performance.
FDA 21 CFR Part 820
Governs quality system requirements, including design controls and traceability.
EU MDR
Elevates documentation standards and requires risk-based assessments guided by ISO 14971.
MDSAP
Harmonizes audits for markets like the U.S., Canada, Brazil, Australia, and Japan.
Note: Regulatory guidelines require packaging to be porous for gas penetration, prevent microbial ingress after sterilization, and preserve seal integrity without absorbing the sterilant gas.
Manufacturers must consider these standards when selecting materials and designing packaging systems for industrial sterilization techniques, including gamma sterilization and radiation sterilization. Meeting these requirements ensures both safety and performance for medical products.

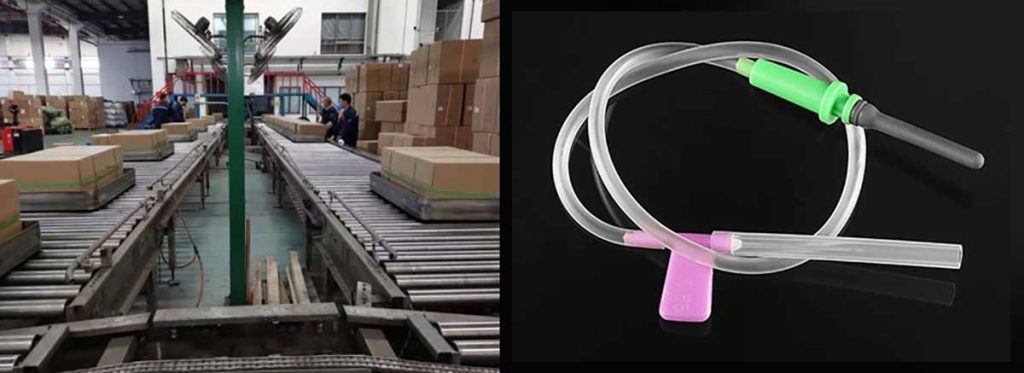

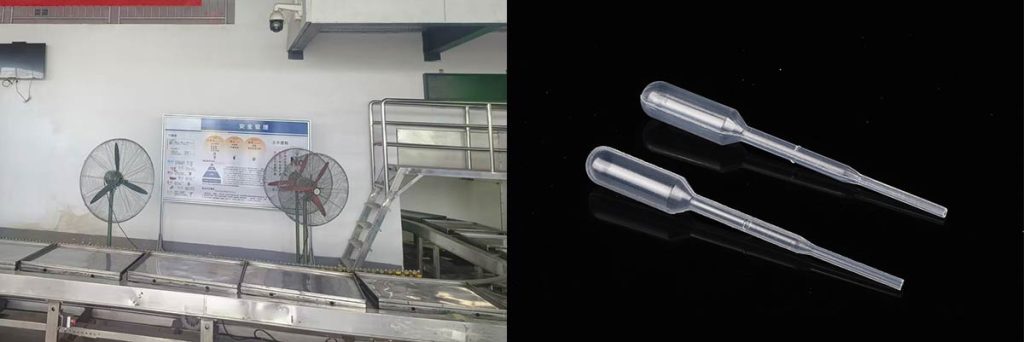

Breathable Packaging for EtO Sterilization
Gas Permeable Materials
Breathable packaging plays a critical role in ethylene oxide sterilization. Medical device manufacturers select materials that allow oxygen and moisture vapor to move freely through the package. This permeability ensures that the sterilization process reaches all surfaces of the medical product. Packaging materials such as Tyvek, medical-grade paper, and select plastic films provide the necessary gas exchange while maintaining protection against contamination.
Breathable materials enable the high-humidity ethylene oxide gas mixture to penetrate the package and interact with water molecules on device surfaces.
A partial vacuum before and after the sterilization cycle enhances the movement of ethylene oxide and moisture vapor, improving sterilization effectiveness.
Insufficient permeability can result in incomplete sterilization, leaving microorganisms inside the package.
The pressure difference during the process may introduce stresses in the seal area, which can cause seal failures known as sterilizer creep.
The design of the sterilization process influences material selection. Packaging must allow for gas penetration and the escape of entrapped air. The total package porosity affects both sterilization and aeration phases. More porosity often leads to shorter cycle and aeration times. Manufacturers optimize package porosity through iterative testing to qualify the design for specific applications.
Key Factors
Description
Total Package Porosity
Influences sterilization and aeration; higher porosity reduces cycle times.
Package and Cycle Dependency
Required porosity depends on application details and theoretical calculations.
Iterative Process
Multiple testing phases help optimize porosity and qualify packaging design.
Materials that are too dense or have low permeability may block ethylene oxide gas, resulting in ineffective sterilization. Common breathable packaging materials are engineered to balance permeability and barrier properties, supporting both sterilization and product safety.
Sterile Barrier Needs
Sterile barrier properties are essential for packaging used in ethylene oxide sterilization. The packaging must include a permeable membrane, such as Tyvek, to facilitate gas exchange. Both single and dual-barrier packages can undergo the same sterilization methods, provided they meet minimum requirements.
ISO 11139:2018 defines a sterile barrier system as the minimum package that reduces the risk of microorganism ingress and allows for aseptic presentation of sterile contents.
ISO 11607 requires packaging to maintain sterility until use and to include instructions for aseptic removal of the medical device.
Packaging must allow ethylene oxide gas to reach microorganisms inside, ensuring complete sterilization.
Materials must provide a barrier against contamination while remaining breathable.
Medical packaging must balance permeability for sterilization with protection against oxygen and microbial ingress. The process design, including partial vacuum and humidity control, directly impacts the performance of breathable packaging. Porous materials support the movement of oxygen and ethylene oxide, while maintaining sterile barrier properties throughout the product lifecycle.
Tip: Manufacturers should test packaging under real sterilization conditions to confirm that permeability and barrier properties meet regulatory standards and process requirements.
E-Beam Sterilization Requirements
Material Stability
E-beam sterilization uses a concentrated stream of accelerated electrons to eliminate microorganisms on medical products. This process can alter the chemical and molecular bonds in packaging materials. Designers must consider the following material stability concerns when selecting packaging for e-beam sterilization:
E-beam sterilization can change the structure of polymers, affecting their strength and flexibility.
The penetration of e-beam radiation is less than gamma sterilization, which may cause uneven exposure in packaging that is not uniformly dense.
Flexible packaging must maintain its breathable properties while withstanding the effects of electron beam irradiation equipment. Medical device manufacturers often test oxygen transmission rates before and after sterilization to ensure the packaging continues to protect the product. The process must not compromise the flexible nature of the packaging or its ability to allow oxygen to pass through.
Adhesive Performance
Multilayer packaging systems rely on adhesives to maintain seal integrity and barrier properties. Electron beam sterilization can impact adhesive performance in several ways. The table below summarizes the effects:
Manufacturers must evaluate adhesives for compatibility with e-beam sterilization. The process can increase tensile strength and elongation at break, but it may reduce sealing and penetration resistance. These changes can affect the overall performance of flexible packaging, especially when maintaining a sterile barrier is critical.
Cost optimization also plays a role in choosing sterilization methods. The table below compares the cost implications of e-beam and EtO sterilization:
Sterilization Method
Cost Implications
E-Beam
More economical, especially for compatible products
EtO
Rising costs due to facility closures and environmental regulations
E-beam sterilization offers a more economical solution for many medical products. Flexible packaging designed for e-beam compatibility can help reduce lifecycle costs while supporting breathable and oxygen-permeable properties. Electron beam sterilization provides an efficient alternative to gamma sterilization and other radiation sterilization methods, especially for products that require flexible and breathable packaging.
Material Selection
Barrier Properties
Selecting the right packaging materials is vital for maintaining sterility after both EtO and E-Beam sterilization. Packaging must block microbial ingress while allowing oxygen to pass through during sterilization. Medical-grade plastics and laminates often provide the necessary balance between breathability and barrier protection. Flexible packaging systems use polymers that support oxygen transmission and resist damage from sterilization methods.
Some materials, such as glass, may discolor under radiation, which can affect product integrity.
Medical packaging relies on advanced sealing techniques, like laser and ultrasonic sealing, to ensure a complete barrier against microbes.
Strong, consistent seals help maintain sterility and prevent oxygen loss after sterilization.
Innovations in sealing methods allow manufacturers to avoid high temperatures that could harm sensitive medical products. These technologies improve the performance of flexible packaging by preserving both the sterile barrier and oxygen permeability.
Chemical Resistance
Packaging materials must withstand exposure to sterilization chemicals and radiation without degrading. Materials compatibility plays a key role in ensuring that flexible packaging maintains its protective qualities. Polymers used in medical packaging must resist chemical reactions with ethylene oxide and remain stable under electron beam exposure.
Medical packaging often uses polymers that do not absorb sterilization gases or lose oxygen permeability.
Flexible packaging must maintain its structure and barrier properties after repeated sterilization cycles.
Chemical resistance ensures that packaging does not break down or release harmful byproducts during sterilization.
Manufacturers test packaging for chemical resistance and oxygen transmission to confirm long-term performance. The right combination of polymers and sealing methods supports both sterility and product safety.
Packaging Construction
Layering
Layering plays a vital role in the construction of packaging for medical devices. Manufacturers combine different materials to achieve both breathability and barrier protection. Each layer serves a specific function, such as blocking moisture, allowing gas exchange, or providing strength. The right combination of layers helps flexible packaging meet the demands of EtO and e-beam sterilization.
Protects against moisture, oxygen, and UV light; maintains product effectiveness.
Vulnerable to chemical attacks and flex cracking; requires protective layers for sealing.
Nylon Films
Adds strength, puncture resistance, and flex crack resistance.
Thickness varies; may not be suitable for all applications without additional layers.
DuPont Tyvek
Offers porosity for sterilization; strong and resistant to microbial penetration.
Primarily suitable for lighter products; may not provide sufficient barrier for all applications.
Material combinations affect overall breathability and barrier properties. The table below highlights key factors:
Factor
Description
Polymer Polarity
Influences the interaction between the polymer and gases, affecting barrier performance.
Crystallinity
Affects the density and arrangement of polymer chains, impacting breathability.
Chemical Crosslinks
Enhances structural integrity and can improve barrier properties against moisture and gases.
Use of Fillers and Blends
Can modify the physical properties of the packaging, influencing both breathability and barrier.
Polymer Orientation
Affects the alignment of polymer chains, which can enhance or reduce gas permeability.
External Shielding
Provides additional protection against environmental factors, improving overall barrier performance.
Arnitel® demonstrates how flexible packaging can balance oxygen and carbon dioxide levels while controlling moisture. This balance is essential for maintaining product quality during sterilization.
Adhesives
Adhesives hold the layers of flexible packaging together and help maintain seal integrity. The choice of adhesive impacts how well the packaging performs during and after sterilization. Some adhesives resist the effects of e-beam radiation better than others. Testing shows that two out of four medical acrylic adhesives maintain their properties after e-beam exposure, while others lose strength.
The right adhesive supports the overall performance of flexible packaging.
Differences in static shear and moisture vapor transmission rate after irradiation can change the wear time of healthcare products.
Adhesives must withstand both EtO and e-beam sterilization without breaking down or losing their sealing ability.
Manufacturers test adhesives to ensure they do not compromise the flexible nature of the packaging. A strong adhesive helps keep the sterile barrier intact and supports the long-term safety of medical devices.
Tip: Always select adhesives that have proven stability under both EtO and e-beam sterilization to ensure consistent packaging performance.
Packaging Innovations
Advanced Materials
Innovative materials have transformed medical device packaging. Companies now use Arnitel® thermoplastic copolyester to improve breathability and moisture vapor transmission rates. These advanced materials deliver strong gas barrier properties, which help sensitive pharmaceutical products remain effective for longer periods. The durability of these materials increases the reliability of packaging during sterilization cycles.
Arnitel® supports high moisture vapor transmission, which maintains product integrity.
These innovations allow manufacturers to meet strict requirements for both EtO and e-beam sterilization. Advanced materials help balance breathability and barrier protection, supporting the safety and effectiveness of medical devices.
Sustainability
Sustainability has become a major focus in medical packaging. Companies now prioritize recyclable materials and minimal waste. The table below compares sustainable options with traditional materials:
Sustainable Packaging Options
Traditional Materials
Performance Comparison
Recyclable materials (e.g., HDPE)
Conventional plastics
Lower environmental impact, can be reprocessed
Minimal and biodegradable options
Non-biodegradable plastics
Reduced waste and better lifecycle management
Compatibility with sterilization methods (e.g., EtO)
Standard packaging
Risk of damage if not properly designed for sterilization process
Medical sterilization plants contribute to air pollution by releasing ethylene oxide and other hazardous pollutants. EO reacts in the atmosphere to form ground-level ozone, which harms health. E-beam sterilization uses only electricity and high-energy electrons, generating no hazardous emissions or specialty waste streams. Companies now focus on recyclable packaging and custom solutions that reduce material waste and shipping volume. CapSure technology reduces packaging materials while maintaining robust seals, promoting sustainability and circularity.
Note: Sustainable packaging options must remain compatible with both EtO and e-beam sterilization to ensure product safety and regulatory compliance.
Conclusion
Breathable packaging faces unique challenges when designed for both EtO and e-beam sterilization. Material selection, barrier properties, and chemical resistance remain critical for packaging success. Industry leaders continue to drive progress through:
Cross-functional collaboration to enhance safety and efficacy
Ongoing education to mitigate risks in packaging design
Packaging engineers should explore new solutions and foster teamwork to ensure safe, effective sterilization.
FAQ
What Makes Packaging Breathable for Sterilization?
Breathable packaging uses materials like Tyvek or medical-grade paper. These materials allow gases, such as ethylene oxide, to pass through. They also block bacteria and moisture. This balance supports effective sterilization and keeps products safe.
Can One Package Work for Both EtO and E-Beam Sterilization?
Some flexible packaging can handle both methods. Manufacturers select polymers and adhesives that resist chemical and radiation damage. Testing confirms that the packaging maintains its barrier and breathability after both sterilization processes.
Why Do Adhesives Matter in Sterile Packaging?
Adhesives hold packaging layers together. They must stay strong after exposure to EtO gas or E-Beam radiation. Weak adhesives can cause seal failures. Reliable adhesives help maintain sterility and product safety.
How Do Regulations Affect Packaging Design?
Regulations like ISO 11607 and FDA 21 CFR Part 820 set standards for packaging performance. They require packaging to allow sterilant penetration, prevent contamination, and keep seals intact. Manufacturers must test and document compliance.
Are Sustainable Packaging Materials Safe for Sterilization?
Many sustainable materials, such as recyclable plastics, work with EtO and E-Beam sterilization. Manufacturers test these materials to ensure they do not degrade or lose barrier properties during sterilization. Sustainable options help reduce environmental impact.
