Terminal Sterilization of Pharmaceuticals and Active Pharmaceutical Ingredients

Terminal sterilization ensures that pharmaceuticals and active pharmaceutical ingredients remain free from harmful microorganisms by sterilizing the product in its final sealed container. This method provides a higher level of sterility assurance compared to aseptic processing. Removing all viable microbes protects patients from infection and maintains the effectiveness of the medication.

Key Takeaways

• Terminal sterilization protects patients by eliminating harmful microorganisms from pharmaceuticals and APIs.
• Regulatory agencies, like the FDA, recommend terminal sterilization for its high sterility assurance and ease of validation.
• Choosing the right sterilization method is crucial; consider the product’s sensitivity and packaging to ensure safety and efficacy.
• Ongoing testing and evaluation of new technologies help maintain product quality and meet regulatory standards.
• Implementing best practices in sterilization facilities reduces contamination risks and enhances patient safety.

Importance of Terminal Sterilization

Patient Safety

Terminal sterilization plays a vital role in protecting patients from harmful microorganisms. By sterilizing pharmaceuticals and APIs in their final containers, manufacturers can ensure that no contaminants enter the product after the sterilization process. This approach extends the product’s beyond-use date and maintains safety throughout its shelf life.

Terminal sterilization technologies provide efficient and robust validated processes to assure patient safety. However, relative to combination devices, terminal sterilization will provide no benefit to patients if sensitive materials are not compatible with them. Successful application of terminal sterilization requires the selection of an appropriate sterilization modality, qualification of materials subject to the sterilization process, optimization of the sterilization process, demonstration of stability of the product over its shelf-life, and regulatory approval.

Healthcare facilities have seen a significant reduction in healthcare-associated infections (HAIs) when using terminally sterilized products. Studies show:

• Terminal sterilization is validated to reproducibly control the sterilization process, which is essential for ensuring the sterility of medical products.
• Studies have shown no hospital infections linked to terminally sterilized products, indicating a low risk of healthcare-associated infections (HAIs).
• Non-sterilized pharmaceuticals are associated with a higher risk of contamination and subsequent infections.

Product Efficacy

Terminal sterilization also helps maintain the efficacy of pharmaceutical products. By eliminating microorganisms, the process prevents degradation and ensures the medication remains effective for patients. However, some APIs and finished products may be sensitive to certain sterilization methods, which can affect their effectiveness.

• Terminal sterilization can negatively impact the effectiveness of pharmaceutical products, especially those sensitive to heat, radiation, or other sterilization methods.
• Not all products can be sterilized after filling due to their sensitivity to terminal sterilization methods, which may compromise their effectiveness.

Regulatory agencies, such as the FDA, recommend terminal sterilization over aseptic processing whenever possible. The following table highlights these recommendations:

Regulatory Agency	Recommendation
FDA	Terminal sterilization is preferred for sterile drugs unless not feasible.

Regulatory bodies prefer terminal sterilization for several reasons:

• Terminal sterilization provides a higher sterility assurance level (SAL of 10⁻⁶).
• It is easier to validate than aseptic processing.
• It significantly reduces contamination risks.

Terminal sterilization remains the gold standard for ensuring both patient safety and product efficacy in pharmaceutical manufacturing.

Sterilization Methods

Gamma and Ethylene Oxide Sterilization

Gamma and ethylene oxide sterilization stand as two of the most widely used sterilization modalities in the pharmaceutical industry. These techniques play a crucial role in ensuring the sterility of both APIs and finished drug products.

Ethylene oxide uses a low-temperature gas that penetrates packaging and complex device structures. This method works well for heat- and moisture-sensitive pharmaceuticals. Gamma irradiation, on the other hand, uses high-energy gamma rays to destroy microorganisms. Both methods offer unique advantages and limitations.

Sterilization Method	Market Share
Ethylene Oxide (EtO)	48.6%
Vacuum Technology	42.3%

Ethylene oxide holds the largest market share among sterilization modalities. This popularity comes from its ability to sterilize a wide range of products without exposing them to high temperatures.

The following table summarizes the main advantages and disadvantages of gamma and ethylene oxide sterilization:

Sterilization Method	Advantages	Disadvantages
Ethylene Oxide (EO)	– Low temperature and humidity – Strong penetration – Wide germicidal spectrum – Low cost	– Medium toxicity – Potential for cell malformation and cancer – Corrosive effects on eyes and respiratory tract – Residue limits for medical supplies
Irradiation Sterilization	– Complete sterilization – Safe operation – No residue	– Limited to certain types of products – May not be suitable for all materials

Ethylene oxide sterilization works best for products that cannot withstand heat or moisture, such as certain APIs, medical devices, and combination drug-device products. Gamma irradiation is suitable for bulk APIs, powders, and some finished pharmaceuticals. However, not all materials tolerate irradiation, so manufacturers must evaluate compatibility before selecting this method.

Note: Regulatory agencies often recommend terminal sterilization using these techniques over aseptic processing when feasible, due to their high sterility assurance and ease of validation.

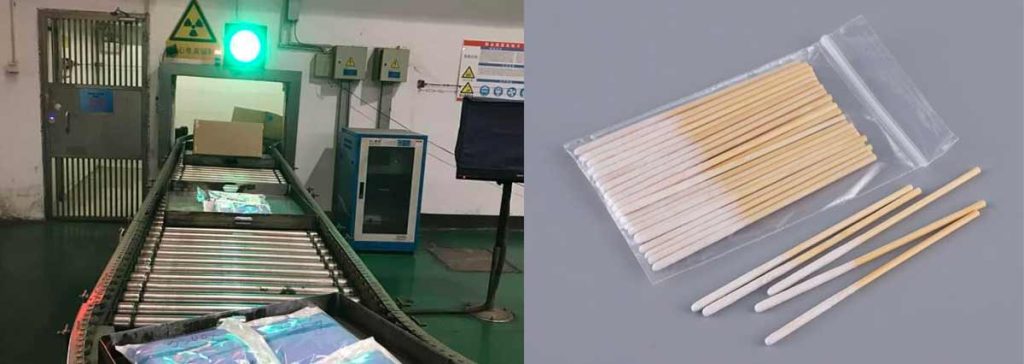

Electron Beam Irradiation Equipment

Electron beam irradiation equipment represents a modern sterilization modality that uses high-energy electrons to eliminate microorganisms. This technique has gained approval from the European Pharmacopoeia for sterilizing pharmaceutical products, including eye drops and parenteral drugs.

• Electron beam irradiation equipment achieves effective sterilization at doses below 25 kGy. These doses do not alter the chemical structure or form of the drug.
• Ionizing radiation from electron beams provides strong bactericidal properties. Studies show that this method maintains the antimicrobial activity of many antibiotics, even at standard doses.
• Electron beam sterilizer offers rapid processing and does not leave chemical residues on APIs or finished products.

Despite these benefits, electron beam irradiation has some limitations:

Limitation	Description
Cost	Construction of e-beam sterilization facilities is expensive.
Availability	Few e-beam radiation sterilization centers exist for bulk sterilization.
Penetration	E-beam sterilization is less penetrative than gamma radiation.
Byproducts	Risk of radiolytic byproduct formation that could affect APIs or packaging.

Electron beam irradiation equipment works best for surface sterilization or for products with shallow penetration requirements. It suits certain APIs and finished pharmaceuticals that remain stable under ionizing radiation. However, manufacturers must assess the risk of byproduct formation and ensure the technique matches the product’s characteristics.

Tip: When choosing among sterilization modalities, manufacturers should consider the drug’s sensitivity, packaging, and intended use. Each method offers unique benefits and challenges, so careful evaluation ensures product safety and efficacy.

Application to APIs and Products

APIs

Terminal sterilization plays a critical role in ensuring the safety of active pharmaceutical ingredients. Manufacturers often face challenges when applying sterilization to APIs. These challenges include:

• Many APIs show sensitivity to heat, moisture, radiation, and light, which can cause degradation.
• Compatibility between APIs and packaging materials remains essential for maintaining product quality.
• Thorough testing and prototyping help confirm both stability and sterility.

APIs must retain their chemical structure and potency after sterilization. Manufacturers select the most suitable method based on the API’s properties. For example, electron beam irradiation equipment offers a solution for APIs that cannot tolerate high temperatures.

Finished Products

Finished pharmaceutical products require careful consideration during terminal sterilization. Excessive heat can negatively affect the chemical and physical properties of these products. This may lead to reduced shelf life and increased degradation. Extreme conditions can also alter the physical characteristics of materials such as elastomers, changing their hardness. Excessive radiation may cause significant changes in both physical and chemical properties across various materials.

Manufacturers often choose terminal sterilization over aseptic processing for finished products when possible. This approach provides a higher sterility assurance level and simplifies validation. However, they must ensure that the selected method does not compromise product quality.

Stability and Compatibility

Stability and compatibility remain central to successful terminal sterilization of APIs and finished products. Manufacturers must evaluate how sterilization affects both the formulation and the packaging. They conduct stability studies to monitor any changes in potency, appearance, or physical properties. Compatibility testing ensures that APIs and packaging materials withstand the chosen sterilization method without adverse effects.

Tip: Early-stage testing and prototyping help identify potential issues, allowing manufacturers to select the best sterilization approach for each product.

Challenges and Solutions

Degradation

Degradation remains a major challenge during terminal sterilization of pharmaceuticals and APIs. Many active ingredients can break down when exposed to heat, radiation, or chemicals. This breakdown can reduce the effectiveness of the medicine or create unwanted byproducts. Scientists use several analytical methods to detect and study degradation:

• Liquid chromatography (LC) with UV detection helps measure the amount of drug left after stress testing.
• Ultra high performance liquid chromatography (UHPLC) increases the speed and accuracy of analysis.
• Mass balance checks ensure that all of the original drug is accounted for after testing.
• Understanding organic reaction mechanisms helps predict which degradation products might form.

These tools allow researchers to monitor product stability and make informed decisions about process adjustments.

Validation

Validation ensures that the sterilization process consistently produces safe and effective products. Regulatory agencies require strict validation steps for pharmaceutical manufacturing. The following table summarizes key regulations:

Regulation	Requirement
21 CFR 211.113(b)	Establish and follow written procedures to prevent microbiological contamination, including validation of sterilization processes.
21 CFR 211.94(b)	Ensure drug product container closure systems protect against contamination and deterioration.
21 CFR 211.160, .165, .166	Conduct appropriate testing to demonstrate conformance to product specifications, including testing for preservatives in multidose containers.
21 CFR 211.167	Special testing requirements for products claiming to be sterile, including microbial contamination testing.

To validate a terminal sterilization process, manufacturers follow these steps:

1. Define the level of probability for microbial survival.
2. Choose methods to achieve this level.
3. Show that lethal conditions reach all parts of the product load.

This approach helps companies meet regulatory standards and protect patient safety.

Mitigation Strategies

Manufacturers use several strategies to address challenges in terminal sterilization, especially for sensitive APIs:

• Aseptic processing controls the number of microorganisms during production to meet Good Manufacturing Practice (GMP) standards.
• Quality Risk Management (QRM) adapts GMP rules to fit specific processes.
• Negative pressure differentials in containment zones improve operator safety.
• Controlled zones with primary and secondary barriers help prevent contamination.

Tip: Early planning and risk assessment can help identify the best approach for each product.

Industry Trends

Best Practices

Industry leaders continue to refine best practices for terminal sterilization in pharmaceutical manufacturing. They focus on building strong foundations for facilities to prevent movement and cracks in clean rooms. Air quality compliance remains a top priority. Facilities use advanced HVAC systems and HEPA filters to maintain clean air and prevent contamination.

Aseptic filling areas require careful design. Non-shedding materials help minimize contamination risks. Preparation areas must include separate changing facilities to maintain sterility. Many manufacturers use isolators and Restricted Access Barrier Systems (RABS) to protect products from contamination. Air locks, pass-through hatches, and interlocks prevent cross-contamination and help maintain pressure differentials.

Facilities that follow these best practices achieve higher sterility assurance and reduce the risk of product recalls.

Emerging Technologies

The pharmaceutical industry is experiencing rapid technological advancements in terminal sterilization. Automation in sterilization equipment increases throughput and reduces human error. The demand for sterile products grows as regulatory requirements become stricter and chronic diseases rise. Many companies now focus on greener sterilization technologies to support sustainability. Increased healthcare spending in emerging economies also drives the adoption of advanced sterilization methods. The popularity of single-use medical devices further promotes terminal sterilization techniques.

New technologies are emerging to meet these demands. The table below highlights some of the latest innovations and their effectiveness:

Technology	Effectiveness	Economic Benefits
UV Light	Inactivates pathogens, effectiveness varies by surface	Costs as low as one cent per square meter
Psoralens	Destroys infectious agents like HIV and hepatitis	N/A
Hydrogen Peroxide	Highly successful against microorganisms and spores	N/A

Nitrogen dioxide (NO2) sterilization is another promising technology. Researchers have tested it on drugs like tetracycline hydrochloride and aciclovir. They found that higher NO2 concentrations can increase impurities, so careful control is necessary. European Pharmacopoeia sets maximum permissible concentrations for safety.

As technology evolves, manufacturers must stay informed about new methods to ensure product safety and regulatory compliance.

Conclusion

Terminal sterilization stands as a cornerstone in pharmaceutical manufacturing. It protects patient safety by eliminating microbial contamination. Manufacturers meet strict standards from organizations like the FDA and CDC, ensuring validated sterility. Ethylene Oxide sterilization offers versatility for heat- and moisture-sensitive products. Key takeaways from recent research include:

• Terminal sterilization eliminates contamination risks.
• Regulatory compliance ensures product safety.
• Streamlined operations improve efficiency.

Ongoing evaluation of new technologies and best practices supports continuous improvement in product quality and safety.

FAQ

What Is Terminal Sterilization?

Terminal sterilization refers to the process of sterilizing pharmaceuticals or APIs in their final sealed container. This method ensures the product remains sterile until use. It provides a higher sterility assurance level compared to aseptic processing.

Why Do Regulatory Agencies Prefer Terminal Sterilization?

Regulatory agencies prefer terminal sterilization because it offers a higher sterility assurance level. It is easier to validate and reduces contamination risks. Agencies like the FDA recommend this method whenever possible for sterile drug products.

Which Products Benefit Most from Electron Beam Irradiation Equipment?

Electron beam irradiation equipment works best for products that cannot tolerate heat or moisture. It suits APIs and finished pharmaceuticals that remain stable under ionizing radiation. This method provides rapid sterilization without leaving chemical residues.

How Do Manufacturers Ensure Product Stability After Sterilization?

Manufacturers conduct stability studies and compatibility testing. They monitor changes in potency, appearance, and physical properties. Early-stage testing helps identify potential issues and ensures the chosen sterilization method does not compromise product quality.

Can All Pharmaceuticals Undergo Terminal Sterilization?

Not all pharmaceuticals can undergo terminal sterilization. Some APIs and finished products may degrade or lose effectiveness when exposed to heat, radiation, or chemicals. Manufacturers must evaluate each product’s properties before selecting a sterilization method.
