Choosing the right auxiliary equipment for e-beam sterilization plays a critical role in achieving safe and effective outcomes. Electron beam material compatibility helps prevent unwanted reactions or product damage. Safety standards and regulatory limits guide decision-making for equipment selection. Operational efficiency depends on matching systems to specific sterilization needs.
- Close to 50% of medical devices are sterilized using radiation methods.
- Less than 5% of medical devices rely on methods other than ethylene oxide or radiation.
Key Takeaways
- Choosing the right auxiliary equipment is crucial for effective e-beam sterilization. Evaluate throughput and product type to ensure compatibility.
- Follow regulatory standards like FDA and ISO guidelines to validate sterilization processes. This ensures safety and compliance in medical device manufacturing.
- Material compatibility is essential. Test materials to confirm they can withstand radiation without damage, ensuring the integrity of medical devices.
- Optimize workflow by adjusting e-beam parameters for specific applications. This improves microbial inactivation and maintains product quality.
- Invest in staff training and regular maintenance. Proper training enhances safety and ensures reliable operation of e-beam sterilization equipment.
E-beam Sterilization Needs
Throughput and Product Type
Facilities must evaluate throughput and product type before selecting auxiliary equipment for e-beam sterilization. Throughput determines the scale of operations and influences the choice of material handling systems. Product type affects the design and compatibility of equipment. For example, lightweight medical devices require gentle handling and precise dose control. Pharmaceuticals and biologics often need sterilization in their final packaging, which demands specialized conveyors and shielding. Packaging materials show excellent resistance to radiation, so they suit high-speed processing. Consumer products and laboratory devices benefit from fast e-beam cycles and low dose requirements. Food and agricultural products often avoid chemical sterilization, making electron beam ideal for items with lower density.
| Product Type | Characteristics |
|---|---|
| Medical Devices | Lightweight, low densities (< 0.2 g/cm3), radiation-compatible materials. |
| Pharmaceuticals and Biologics | Small, lightweight, modest dose requirements, sterilized in final packaging. |
| Packaging Materials | Excellent radiation compatibility, minimal risk of material degradation. |
| Consumer Products | Lightweight, fast processing, low doses required. |
| Food and Agricultural Products | Suitable for products where chemical sterilization is undesirable, effective for lower-density items. |
| Laboratory and Research Products | Reliable and efficient sterilization of final-packaged devices without complications of residuals. |
Regulatory Standards
Regulatory standards guide every step of e-beam sterilization. Facilities in the United States must follow FDA requirements, which include process validation, dose mapping, and sterility testing. The European Union’s Medical Device Regulation (MDR) emphasizes risk management and process validation for medical devices. ISO 11137 provides detailed guidelines for developing and validating e-beam sterilization processes, covering dose range and dosimetric aspects. ISO 13485 outlines quality management system requirements, focusing on risk management and validation.
- FDA Requirements: Manufacturers must validate their e-beam sterilization processes to meet safety and efficacy standards, including dose mapping and sterility testing.
- European Union’s Medical Device Regulation (MDR): Requires validation of sterilization processes and emphasizes risk management to ensure device safety and performance.
- ISO 11137: Provides guidelines for validating e-beam sterilization, consisting of three parts that cover development, dose range, and dosimetric aspects.
- ISO 13485: Outlines quality management system requirements for medical devices, focusing on risk management and process validation.
Electron Beam Material Compatibility
Electron beam material compatibility plays a vital role in selecting auxiliary equipment. Materials must withstand radiation without losing mechanical properties or causing unwanted reactions. Polyacetals, polyacrylates, polyamides, polycarbonate, polyethylene, and polystyrene show varying levels of compatibility and resistance. Aluminum and copper also perform well in e-beam applications, especially for surgical instruments and medical components. Facilities must match equipment to the materials used in devices and implants to ensure safety and effectiveness. The chart below compares common materials by their compatibility with e-beam sterilization.
| Material | Compatibility Rating | Applications | Effects of Irradiation |
|---|---|---|---|
| Polyacetals (e.g., polyoxymethylene) | ★ | Precision components like inhaler gears, insulin pen screws | Significant chain scission, color changes (yellow to green) |
| Polyacrylates (e.g., polymethylmethacrylate) | ★★ to ★★★ | Intraocular lenses, contact lenses | – |
| Polyamides (e.g., nylon) | ★★ to ★★★ | Sutures, catheter shafts | Nylon 10, 11, 12, and 6-6 are more stable than 6. |
| Polycarbonate (PC) | ★★★ to ★★★★ | Blood oxygenators, IV components | Yellows, mechanical properties not greatly affected |
| Polyethylene (PE) | ★★★ to ★★★★ | IV bags, tubing, disposable gloves | High-density polyethylene is less stable than others |
| Polystyrene (PS) | ★★★★ | Disposable labware, diagnostic devices | Begins to yellow at >50 kGy |
| Aluminum | ★★★★ | Lightweight surgical instruments | – |
| Copper | ★★★★ | Medical equipment wiring | – |
Auxiliary Equipment for E-beam
Material Handling

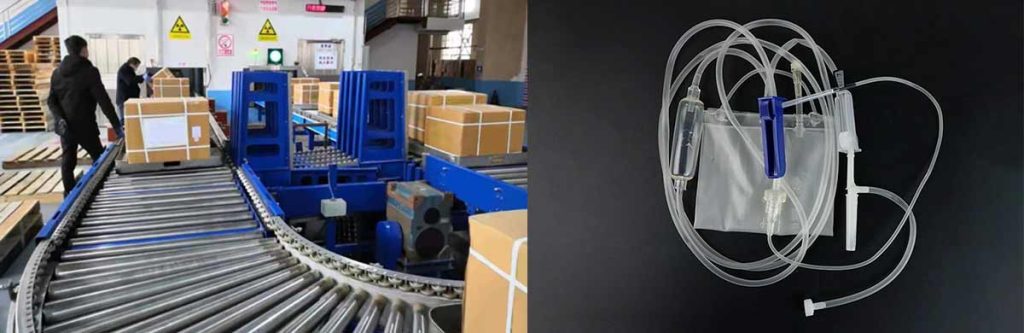

Material handling systems move products through the e-beam sterilization facility. Operators select systems based on footprint, shielding type, and product requirements. Electron beam irradiation equipment relies on these systems to ensure safe and efficient exposure. Box conveyor systems with steel or concrete shielding suit compact or larger facilities. Tote transport systems handle fragile products, while pallet systems work best for food processing. The table below compares common material handling systems and their applications.
| System Type | Shielding Type | Footprint | Common Applications |
|---|---|---|---|
| Box conveyor-compact shield | Steel shield | ~150 m² | Sterilization, cannabis processing |
| Box conveyor | Concrete shield | 320m² to 350m² | Sterilization |
| Tote transport system | Concrete shield | ~500 m² | Sterilization, fragile products |
| Pallet system | Concrete shield | ~900 m² | Sterilization, food processing |
Dosimetry Tools
Dosimetry tools measure the radiation dose delivered to products. Highly sensitive dosimeters provide precise readings at low doses. Robust calibration techniques adjust for environmental factors, improving accuracy. Integrated systems work with electron beam irradiation equipment to optimize dosing automatically. These tools help maintain compatibility and performance for medical devices, surgical instruments, and implants.
- Highly sensitive dosimeters ensure accurate dose measurement.
- Robust calibration techniques improve reliability.
- Integrated systems optimize dosing for different materials and components.
Cooling Systems
Cooling systems prevent overheating during e-beam exposure. Operators irradiate products incrementally, allowing time for cooling between passes. Temperature can rise by 50°C, sometimes reaching 75°C at higher doses. Cooling maintains material resistance and protects adhesives, coatings, and sensitive devices from damage.
- Cooling between doses prevents overheating.
- Incremental irradiation protects materials and components.
- Temperature control supports safe sterilization process.
Safety Shielding
Safety shielding protects workers and the environment from radiation exposure. Facilities use concrete, steel, or lead shielding based on the type of electron beam irradiation equipment and the scale of operations. Shielding ensures compatibility with facility layout and product applications. Proper shielding supports regulatory compliance and safe handling of medical devices and surgical instruments.
Monitoring Systems
Monitoring systems track critical parameters during e-beam sterilization. Mechanical monitoring checks pressure and temperature. Chemical indicators confirm sterilization conditions. Biological monitoring tests the effectiveness of the sterilization process. These systems help facilities meet FDA and EMA standards, ensuring safety and regulatory compliance for all applications.
Tip: Continuous monitoring helps identify issues early, protecting patient safety and maintaining high performance standards.
Matching Equipment to Sterilization Needs
Facility Size
Facility size shapes the integration and performance of auxiliary equipment in e-beam sterilization. Larger facilities often install complex conveyor systems and automated controls. These systems handle increased product volumes and boost efficiency. Smaller facilities may use stand-alone systems. These systems can limit throughput and integration capabilities. The layout and size of the facility influence how equipment, such as conveyors and safety systems, fit into the workflow. Facility design affects operational efficiency and the ability to scale up production.
- Larger facilities implement complex conveyor systems and automated controls to manage high product volumes.
- Smaller facilities utilize simpler, stand-alone systems, which may restrict throughput and integration.
- Facility layout and size directly impact how auxiliary equipment, including safety shielding and monitoring systems, are integrated, influencing overall performance.
Facilities with limited space often choose smaller units. These units offer operational efficiency and easier shielding. Compact systems reduce the need for extensive concrete or steel barriers. They also simplify maintenance and allow for flexible placement within the facility.
Product Compatibility
Product compatibility remains essential when selecting auxiliary equipment for e-beam applications. Manufacturers test product samples by exposing them to various radiation doses. This process identifies the minimum and maximum sterilization doses required for each product. Testing confirms compatibility and provides flexibility in the sterilization process. Facilities can adjust equipment settings to match the resistance of different materials, adhesives, and coatings. This approach helps prevent unwanted reactions and ensures that medical devices, surgical instruments, and implants maintain their integrity after exposure.
Compatibility testing also leads to cost savings. Facilities avoid unnecessary redesigns and reduce the risk of product damage. By matching equipment to the specific materials and components used in devices, operators achieve reliable sterilization outcomes across a range of applications.
Process Goals
Process goals guide the selection of auxiliary equipment for e-beam sterilization. Facilities must consider speed, cost, and sterility assurance when choosing systems. The choice of sterilization modality affects how quickly a medical device reaches the market. Fast processing reduces manufacturing time and supports regulatory approval. Understanding sterilization processing parameters helps facilities avoid costly redesigns and delays. Logistical considerations, such as production volume, play a role in equipment selection, especially as operations expand.
- Sterilization modality selection impacts speed to market and regulatory timelines.
- Knowledge of processing parameters prevents expensive redesigns and delays during validation.
- Logistical factors, including production volume, are vital when scaling up sterilization operations.
Some equipment may not accommodate large packaging. This limitation can restrict the choice of sterilization modality. Packaging configuration is critical for certain devices, which must maintain specific shapes during sterilization. Collaboration between sterility assurance experts and research teams ensures that the selected equipment can handle required packaging configurations.
Facilities that implement best practices for matching auxiliary equipment to e-beam sterilization needs see measurable improvements in outcomes. The table below shows defect reductions after adopting these practices.
| Defect Type | Before Action | After Action | Reduction |
|---|---|---|---|
| Instrument Quantity Defects | 73 | 15 | 58 |
| Model Matching Defects | 22 | 2 | 20 |
| Cleaning Quality Defects | 65 | 15 | 50 |
| Instrument Functional Defects | 18 | 0 | 18 |
| Chemical Indicator Defects | 52 | 5 | 47 |
| Sealing Defects | 24 | 4 | 20 |
| Labeling Defects | 20 | 0 | 20 |
| Statistical Significance | – | – | P < 0.05 |
Tip: Facilities that match auxiliary equipment to their sterilization needs achieve higher performance, reduce defects, and improve safety for all applications.
Integration Best Practices
Workflow Optimization
Facilities optimize workflow by tailoring e-beam parameters to specific applications. Operators adjust dose levels and exposure times to match the resistance of materials, coatings, and adhesives. This strategy improves microbial inactivation and preserves the integrity of medical devices, surgical instruments, and implants. Facilities benefit most when they customize sterilization for porous scaffolds and complex devices.
- Adjusting electron beam settings for each product type increases compatibility and reduces unwanted reactions.
- Facilities that optimize workflow see improved outcomes for a wide range of applications.
Tip: Customizing e-beam sterilization parameters for each material type helps maintain product quality and safety.
Automation
Automation transforms e-beam facilities by increasing throughput and consistency. IoT-enabled sterilizers and AI-driven robotics streamline operations, reducing manual intervention and minimizing contamination risks. Automated systems deliver precise doses to every batch, improving process reliability and lowering operator exposure to radiation.
| Benefit | Description |
|---|---|
| Reduces operator exposure | Automation minimizes the need for manual intervention, thereby lowering radiation exposure risks. |
| Improves process consistency | Automated systems ensure that each batch receives the correct dose, enhancing operational consistency. |
| Increases throughput and efficiency | Automation streamlines processes, leading to higher throughput and improved efficiency in operations. |
| Minimizes contamination risks | Reduced manual handling lowers the risk of contamination, ensuring higher quality standards. |
Facilities report a 25% increase in process efficiency and a 35% reduction in cycle turnaround times after implementing automation. Equipment throughput rises by 50%, saving costs and supporting high-volume sterilization.
Validation
Validation ensures that auxiliary equipment meets international standards for e-beam sterilization. Facilities follow protocols from ISO 11137 and ISO 13485, which require dose mapping, max dose testing, and triplicate irradiation runs. Microbiology labs design and execute tests, analyze data, and report results. Validation covers the entire manufacturing and packaging process, confirming sterility and compatibility for all materials and components.
| Role | Responsibilities |
|---|---|
| Irradiator | Provides irradiation services in accordance with ISO 11137 and ISO 13485 for regulated medical devices. Evaluates product-specific requirements for dose mapping and max dose testing. Executes test irradiation runs and triplicate dose mapping. |
| Microbiology Lab | Develops a protocol for sterilization validation. Designs and executes microbiology lab tests. Analyzes data and reports results. |
| Overall Process | Validates sterility for the entire manufacturing and packaging process, requiring ISO-compliant validation when these processes are defined and ready for production. |
Facilities that validate equipment and processes maintain high standards for safety and performance. Validation protocols help prevent defects and ensure reliable sterilization for medical devices, surgical instruments, and implants.
Staff Training
Staff training supports safe and efficient operation of e-beam auxiliary equipment. Operators learn to follow safety protocols, wear personal protective equipment such as lead aprons and safety goggles, and handle radiation sources with care. Facilities schedule regular maintenance and calibration to ensure accurate dose delivery and compliance with safety standards. Ongoing education and process validation keep staff updated on best practices and regulatory changes.
- Proper training and adherence to safety protocols are crucial for operating e-beam sterilization auxiliary equipment effectively.
- Operators prioritize safety measures, including wearing PPE to protect against radiation exposure.
- Regular maintenance and calibration ensure accurate dose delivery and compliance with safety standards.
- Ongoing education and process validation maintain consistent results and compliance with industry regulations.
| Aspect | Contribution to Reliability and Safety |
|---|---|
| Regular Inspections | Identify potential issues before they escalate into major problems. |
| Strategic Component Replacement | Prevent unexpected failures by replacing high-wear parts at scheduled intervals. |
| Adherence to Safety Standards | Minimize safety risks through regular risk assessments and effective controls. |
| Compliance with Regulatory Requirements | Ensure operational integrity and foster trust through proper documentation and reporting. |
Facilities that invest in staff training and maintenance planning achieve reliable operation and maintain high safety standards. These practices protect workers, preserve material resistance, and support the compatibility of equipment with a wide range of applications.
Conclusion
Facilities that follow best practices for e-beam sterilization achieve reliable results. Operators assess material compatibility, safety, and regulatory compliance before integrating auxiliary equipment. They streamline workflows, minimize cross-contamination, and boost staff productivity. The table below highlights how these steps optimize the e-beam process.
| Benefit | Impact on E-beam Sterilization |
|---|---|
| Efficient workflows | Streamlined operations |
| Reducing cross-contamination risks | Improved safety standards |
| Enhancing staff productivity | Increased effectiveness |
Facilities that apply these strategies maintain high performance and safety in every sterilization cycle.
FAQ
What Is the Role of Dosimetry in E-beam Sterilization?
Dosimetry measures the radiation dose delivered to products. Accurate dosimetry ensures that each item receives the correct amount of radiation for effective sterilization. Facilities use calibrated dosimeters to monitor and control dose levels.
Tip: Regular calibration of dosimetry tools improves reliability.
How Does Safety Shielding Protect Workers?
Safety shielding blocks harmful radiation from reaching workers. Facilities use concrete, steel, or lead barriers around e-beam equipment. Shielding design matches the facility layout and product type to maximize protection.
| Shielding Material | Common Use |
|---|---|
| Concrete | Large facilities |
| Steel | Compact systems |
| Lead | Specialized areas |
Why Is Material Compatibility Important for E-beam Sterilization?
Material compatibility prevents unwanted reactions and product damage during sterilization. Facilities test materials to ensure they withstand radiation without losing strength or changing color. Proper selection maintains product safety and performance.
- Polycarbonate and polystyrene show high compatibility.
- Aluminum and copper resist radiation effects.
What Are the Benefits of Automation in E-beam Facilities?
Automation increases throughput and consistency. IoT-enabled systems and robotics reduce manual handling, lower contamination risks, and deliver precise doses. Facilities report faster cycle times and improved efficiency after adopting automation.
Facilities achieve up to 50% higher throughput with automated systems.
How Often Should Staff Receive Training on E-beam Equipment?
Staff should receive training regularly. Facilities schedule annual safety refreshers and provide updates when equipment or protocols change. Ongoing education helps operators follow best practices and maintain compliance with regulations.
- Annual safety training
- Updates for new equipment
- Regular protocol reviews
