Imagine a manufacturer skips process qualification before starting electron beam applications. Product quality suffers, regulatory compliance fails, and costly recalls follow. To prevent these risks, a team must define process requirements, calibrate equipment, perform dose mapping, verify performance, analyze results, and document every step. Rigorous qualification ensures reliable, repeatable outcomes. Companies should view this as a strategic investment in safety and reputation, not just a regulatory obligation.
Key Takeaways
- Process qualification is essential for ensuring product quality and regulatory compliance in electron beam applications.
- Accurate calibration of equipment is crucial. It helps maintain reliable process control and prevents product damage.
- Dose mapping identifies the optimal electron beam dosage, ensuring effective sterilization without harming the product.
- Thorough documentation supports compliance and aids in audits, providing a reference for future process improvements.
- A structured checklist for pre-qualification and post-qualification helps teams manage the complex steps and avoid errors.
Electron Beam Applications
What Is Process Qualification?
Process qualification defines and verifies the ability of electron beam applications to meet strict industry standards. This process involves several structured steps. First, teams install and calibrate equipment according to specifications. Next, they confirm that the system operates within set parameters. Finally, they test the process to ensure it consistently produces products that meet predefined criteria. The table below outlines these standard steps:
| Step | Description |
|---|---|
| IQ | Installation Qualification: The equipment is installed according to specifications. |
| OQ | Operational Qualification: The equipment operates within predetermined limits. |
| PQ | Performance Qualification: The equipment performs in accordance with predefined criteria and yields a product meeting its specification. |

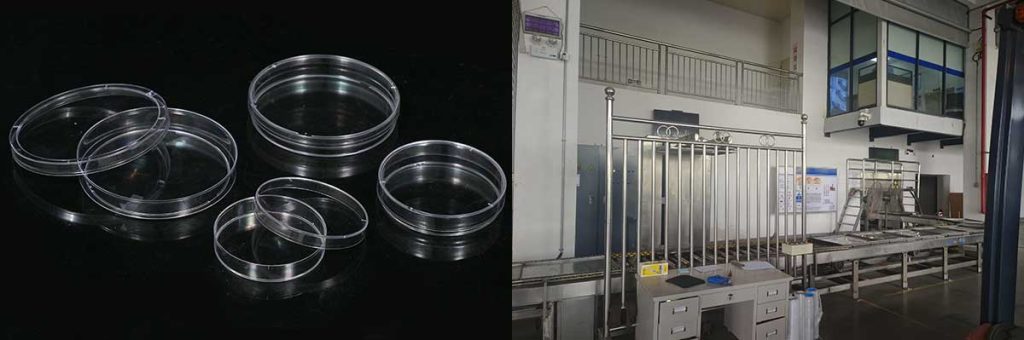

Electron beam applications serve a wide range of industries. The most common uses include:
- Improving wear resistance by modifying material surfaces for durable components.
- Enhancing the precision and functionality of surgical tools.
- Creating custom implants and prosthetics from advanced materials.
- Sterilizing medical equipment without heat, preserving sensitive instruments.
Why It Matters?
Process qualification plays a critical role in ensuring the reliability and safety of electron beam applications. Without proper qualification, manufacturers risk product failures, regulatory issues, and compromised patient safety. The impact of these applications spans several sectors, as shown in the market data below:
| Sector | Market Size (2025) | Market Size (2035) | CAGR (%) |
|---|---|---|---|
| Electron Beam Power Market | 2,127.8 USD Million | 3,800 USD Million | 6.0 |
| Primary Sectors | Material Processing, Medical Treatment, Electronics Manufacturing, Research and Development | N/A | N/A |
Note: Process qualification ensures that electron beam applications deliver consistent results, meet compliance standards, and support innovation in high-growth industries.
Process Workflow
Establishing Requirements
Every successful e-beam process begins with a clear understanding of regulatory, customer, and industry requirements. Teams must identify the standards that apply to their specific application, whether for medical devices, pharmaceuticals, or industrial products. Regulatory frameworks such as FDA standards, ISO 13485, and ISO 11137 set the foundation for process validation and process control. The following table summarizes key regulatory requirements:
| Regulatory Requirement | Description |
|---|---|
| FDA Standards | Compliance with 21 CFR Part 820 for Medical Devices and 21 CFR Parts 210 and 211 for Drugs. |
| ISO 13485 | Quality Management Systems for Medical Devices. |
| ISO 11137 | Sterilization of Health Care Products using radiation. |
Industry standards also guide the establishment of process requirements. For example, AMS 2681 and AMS 2680 specify vacuum levels for electron beam irradiation equipment, while ISO 11137 outlines validation and ongoing dose audit protocols. Teams must also register equipment, establish a safety program, and appoint a Radiation Safety Officer. These steps ensure process control and compliance from the outset.
Equipment Calibration
Accurate calibration of electron beam irradiation equipment is essential for reliable process control. Calibration procedures typically involve the use of a Faraday cup to measure beam current under various conditions. Technicians adjust lens settings based on these readings to ensure the equipment delivers the intended dose. The table below outlines standard calibration steps:
| Calibration Step | Description |
|---|---|
| Use of Faraday Cup | Measure beam current accurately under various conditions |
| Correlate with Lens Settings | Adjust lens settings based on beam current readings |
| Verify Dose Distribution | Ensure accurate treatment delivery in clinical settings |
Proper calibration supports process validation by confirming that the e-beam system operates within defined parameters. This step reduces the risk of under- or over-exposure, which can compromise product quality and safety.
Dose Mapping and Qualification
Dose mapping and qualification represent the heart of process validation in e-beam applications. This step determines the optimal electron beam dosage for effective sterilization or material modification. Dose mapping identifies the minimum and maximum dose limits required to achieve the desired sterility assurance level without damaging the product. Teams use advanced methods such as CT scanning and Monte Carlo simulation to create high-resolution dose maps, especially for complex geometries. The table below compares common dose mapping methods:
| Method | Description | Accuracy Rate |
|---|---|---|
| CT Scanning | Combines X-ray with computer technology to obtain geometrical and density information for dose distribution calculations. | High resolution dose maps for complex shapes. |
| Monte Carlo Simulation | A computational technique used for accurate dose calculation of electron beam interactions with matter. | Most accurate method for dose calculation. |
Dose mapping and qualification ensure that ionizing radiation delivers consistent results across all product types. This process step is critical for process control, as it validates that the e-beam system can meet both regulatory and customer requirements.
Note: Dose mapping is essential as it identifies the minimum and maximum dose limits necessary for effective sterilization while preventing damage to the product. This process ensures that the sterilization dose can achieve the desired sterility assurance level without exceeding the maximum dose that could degrade the product’s performance or marketability.
Performance Qualification
Performance qualification verifies that the e-beam process consistently produces results that meet predetermined criteria. Teams conduct this step on multiple containers or product batches to capture dose distribution variations caused by geometry, density, or atomic composition. This approach helps identify intrinsic dose characteristics and electron scattering effects, which influence dose gradients. The table below summarizes standard qualification protocols:
| Qualification Type | Description |
|---|---|
| Installation Qualification (IQ) | Ensures that the equipment is installed correctly and meets specifications. |
| Operational Qualification (OQ) | Confirms that the equipment operates according to its intended use. |
| Performance Qualification (PQ) | Validates that the process consistently produces results meeting predetermined criteria. |
By performing qualification on multiple containers, teams gain insights into dose mapping results and optimize process control for routine production. This step also supports ongoing process validation and ensures compliance with ionizing radiation standards.
Analyzing Results
After performance qualification, teams analyze the results using statistical methods to confirm process control and process validation. Common techniques include Analysis of Variance (ANOVA) to locate and quantify the minimum and maximum absorbed dose, and statistical tolerance limits to estimate process maximum and minimum dose targets. The table below highlights these methods:
| Statistical Method | Description |
|---|---|
| Analysis of Variance (ANOVA) | Used to locate and quantify the minimum and maximum absorbed dose in a product. |
| Statistical Tolerance Limits | Helps in estimating the expected process maximum dose and setting a process minimum dose target. |
This analysis ensures that the e-beam process remains within validated parameters and supports continuous improvement.
Final Documentation
Comprehensive documentation is the final step in the process workflow. Teams must record every aspect of process control, from equipment calibration and dose mapping to performance qualification and statistical analysis. Documentation supports regulatory compliance, customer audits, and future process validation efforts. It also provides a reference for troubleshooting and continuous improvement.
Tip: Thorough documentation not only satisfies regulatory requirements but also protects the organization during audits and supports knowledge transfer to new personnel.
Common Challenges in the Process Workflow
- High costs associated with cleanrooms and equipment
- Operational challenges that affect efficiency
- Accessibility issues for smaller laboratories
- Resolution limits that restrict pattern detail
- Throughput limitations impacting production speed
- Material compatibility concerns affecting final results
- Resist sensitivity that can complicate the process
- Complexity of the overall workflow
By addressing these challenges and following a structured process workflow, organizations can achieve robust process control, reliable process validation, and consistent results in e-beam applications.
Key Considerations
Repeatability
Repeatability stands as a cornerstone of any electron beam process. Teams must ensure that each run produces consistent results, regardless of operator or batch. Several factors influence repeatability, including build geometry, support structure, part melt order, and the monitoring of process variables. The following table outlines how each factor impacts repeatability:
| Factor | Impact on Repeatability |
|---|---|
| Build Geometry | Significant variations in material properties and defect structure. |
| Support Structure | Changes can lead to unreliable process outcomes. |
| Part Melt Order | Affects correlation between NIR intensity, not yield strength. |
| Monitoring Process Variables | Essential for understanding material properties and reliability. |
By controlling these variables, organizations can maintain a stable process and deliver predictable product quality.
Documentation
Accurate documentation supports every stage of the process. Teams must record calibration data, dose mapping results, and performance qualification outcomes. Detailed records help organizations demonstrate compliance during audits and enable quick troubleshooting when issues arise. Documentation also preserves process knowledge for future personnel.
Tip: Consistent documentation ensures that process improvements and corrective actions remain traceable and verifiable.
Process Variability
Process variability can affect the outcome of electron beam applications. Variability in processing parameters leads to differences in thermal history, which impacts part quality. Advanced monitoring techniques, such as infrared thermography and multi-wavelength pyrometry, help teams detect and mitigate these variabilities. The table below summarizes key aspects:
| Aspect | Description |
|---|---|
| Process Variability | Variability in processing parameters leads to differences in thermal history affecting part quality. |
| Monitoring Techniques | Advanced methods like infrared thermography and multi-wavelength pyrometry help mitigate variabilities. |
| Impact on Mechanical Properties | Variations in thermal history influence the mechanical properties and performance of final parts. |
| Importance of Monitoring | Ensures consistent part qualification and maintains fabrication integrity across the entire part. |
Effective monitoring and control of process variability ensure that each product meets strict quality standards.
Personnel Training
Personnel training plays a vital role in process qualification. Well-trained staff understand the principles of electron beam sterilization, equipment operation, and process control. Training programs, such as “Fundamentals of EBeam Sterilization,” provide an overview of e-beam applications, equipment capabilities, and product qualification. The table below highlights a recommended training program:
| Training Program Title | Description |
|---|---|
| Fundamentals of E-Beam Sterilization | This program provides an overview of e-beam sterilization, its applications, and modern equipment capabilities. Participants will learn about the process, product qualification, and comparisons with other sterilization methods. It is designed for professionals in medical device development, manufacturing, and regulatory compliance. |
Ongoing training ensures that personnel remain current with process advancements and regulatory requirements, supporting a robust qualification process.
Qualification Checklist
A structured checklist helps teams manage the complex steps of electron beam sterilization. This approach ensures that every requirement for medical device sterilization is met before the first production run. The checklist divides into two main phases: pre-qualification and post-qualification.
Pre-Qualification
Before starting any e-beam sterilization, teams must complete several critical tasks:
- Define Process Requirements
Teams identify regulatory standards for sterilization, such as ISO 11137, and document customer needs. - Calibrate Equipment
Technicians verify that all electron beam sterilization equipment operates within specified parameters. - Develop Dose Mapping Plan
Specialists create a plan for dose mapping to determine the optimal sterilization dose for each product. - Train Personnel
Staff receive training on e-beam sterilization procedures and safety protocols. - Prepare Documentation
Teams gather all necessary documents, including equipment logs and process flowcharts.
Tip: A thorough pre-qualification phase reduces the risk of errors during medical device sterilization and supports regulatory compliance.
Post-Qualification
After completing the initial process, teams must validate and document the results:
- Review Dose Mapping Results
Analysts confirm that the sterilization dose meets both minimum and maximum requirements for all product types. - Conduct Performance Qualification
Teams test multiple product batches to ensure consistent e-beam sterilization outcomes. - Analyze Data
Experts use statistical methods to verify process control and identify any deviations. - Finalize Documentation
All findings, calibration records, and qualification reports are compiled for audit readiness. - Implement Continuous Improvement
Teams review lessons learned and update procedures to enhance future sterilization runs.
A well-maintained checklist supports repeatable, reliable electron beam sterilization and ensures that medical device sterilization meets industry standards.
Conclusion
Process qualification in electron beam technology protects product quality and ensures compliance with sterility requirements. Teams that follow each step—requirements, calibration, dose mapping, qualification, analysis, and documentation—achieve reliable results and meet the sterility assurance level. Using a structured checklist helps avoid shortcuts and supports audit readiness. For further learning, the following industry guideline offers valuable insights:
| Title | Link | Description |
|---|---|---|
| C7.3:2016 Process Specification for Electron Beam Welding | Link | Covers safety, requirements, quality examination, and equipment maintenance. |
FAQ
What Steps Are Essential for Electron Beam Process Qualification?
Teams must define process requirements, calibrate equipment, perform dose mapping, conduct performance qualification, analyze results, and document every step.
Each step ensures compliance, repeatability, and product safety.
How Does Dose Mapping Improve Product Quality?
Dose mapping identifies the minimum and maximum dose each product receives.
- Ensures effective sterilization
- Prevents product damage
- Supports regulatory compliance
Why Is Documentation Important in Process Qualification?
Documentation provides evidence of compliance and process control.
Auditors and regulators review these records to verify that the process meets industry standards and supports continuous improvement.
Who Should Oversee the Qualification Process?
A qualified team, including process engineers, quality assurance specialists, and a Radiation Safety Officer, should oversee the process.
Proper oversight ensures safety, accuracy, and regulatory compliance.
What Happens If a Step Is Skipped During Qualification?
Skipping steps can lead to product failures, regulatory penalties, and safety risks.
| Risk | Impact |
|---|---|
| Product Failure | Costly recalls |
| Compliance Issues | Legal consequences |
| Safety Concerns | Patient harm possible |
