Medical device manufacturers rely on electron beam sterilization to eliminate harmful microorganisms from products and ensure safety. This method represents 4.5% of sterilization processes for single-use medical devices worldwide, while gamma irradiation and ethylene oxide account for larger shares. Strict compliance standards guide sterilization practices in healthcare.
| Compliance Standard | Description |
|---|---|
| ISO/AAMI 11137 | Key standard for sterilizing healthcare products using radiation, establishing maximum acceptable doses. |
| ANSI/AAMI/ISO 11137-1:2006 | Standard for sterilizing healthcare products using radiation, detailing validation requirements. |
| AAMI TIR17:2008 | Technical report providing guidance on testing and qualifying materials for radiation sterilization. |
Mastering dose control and process precision in electron beam sterilization improves safety, efficiency, and regulatory readiness.
Key Takeaways
- Electron beam sterilization is crucial for medical device safety, effectively eliminating harmful microorganisms.
- Maintaining precise dose control (15-50 kGy) is essential for effective sterilization without damaging products.
- Regular monitoring of critical parameters like beam energy and conveyor speed ensures consistent sterilization outcomes.
- Automation and advanced electronics enhance process control, reduce human error, and support regulatory compliance.
- Continuous improvement strategies optimize sterilization processes, increasing efficiency and reducing operational costs.
Electron Beam Sterilization Parameters
Critical Variables
Medical device manufacturers depend on electron beam sterilization to achieve reliable results. Several critical variables influence the effectiveness of this process. The main parameters include dosimetry, energy levels, and the interaction of ionizing radiation with harmful microorganisms. Each variable requires careful monitoring to ensure consistent sterilization.
| Parameter | Description |
|---|---|
| Dosimetry | Various dosimeter systems are used for routine control of the electron beam. |
| Energy Levels | The energy of the electron beam is critical for effective sterilization. |
| Interaction with Microorganisms | The effectiveness of sterilization is influenced by how ionizing radiation interacts with different microorganisms. |
Monitoring systems play a vital role in process control. Mechanical monitoring checks sterilizer gauges for pressure, temperature, and exposure time. Chemical monitoring uses indicators that change color when exposed to ionizing radiation, confirming the penetration of the sterilizing agent. Biological monitoring evaluates the process using resistant microorganisms, verifying success through spore testing.
Tip: Consistent monitoring of these variables helps medical device manufacturers maintain compliance and product safety.
Dose (kGy) Importance
The dose, measured in kilograys (kGy), determines the level of ionizing radiation delivered to products. The standard sterilization dose for most single-use medical devices falls within the range of 15–50 kGy. This range ensures the destruction of a wide variety of microorganisms.
The effectiveness of electron beam sterilization equipment depends on both the dose and the rate at which ionizing radiation is applied. Studies show that lower dose rates of electron beam irradiation can be more effective for microbial reduction than higher rates. The required dose varies depending on the type of microorganism present. For example:
| Microorganism | D10 (kGy) | Effective Dose Required (kGy) |
|---|---|---|
| A. flavus | 2.0–2.5 | >5 |
| A. niger | 0.68 | >7.5 |
| A. versicolor | 0.282 | >15 |
| P. italicum | 0.234 | <5 |
Medical device manufacturers must select the appropriate dose to ensure complete sterilization without damaging the product. High-energy electrons from the electron beam deliver ionizing radiation that disrupts the DNA of harmful microorganisms, leading to their inactivation. Accurate dose management remains essential for effective and safe sterilization.
E Beam Sterilization Process Control
Beam Energy and Conveyor Speed
Linear accelerators generate high-energy electrons for the e-beam sterilization. Electron beam sterilizer allows operators to adjust beam energy, which directly affects penetration depth and dose distribution. Higher beam energy increases the ability to sterilize dense products and bulk packaging, while lower energy targets surface-level applications such as packaging materials.
| Beam Energy (MeV) | Material | Penetration Depth (mm) | Energy Deposition Influence |
|---|---|---|---|
| < 0.4 | Protein | < 1 | Significant |
| < 0.45 | Cellulose | < 1 | Significant |
| > 1 | Various | Varies | Less significant |
Operators select beam energy based on product composition and packaging. Low-energy beams suit surface sterilization, while medium and high-energy beams handle crosslinking plastics and sterilizing medical devices. Conveyor speed also plays a critical role in the e beam sterilization process. Faster conveyor speeds reduce exposure time, which can lower the delivered dose and affect dose uniformity.
| Conveyor Speed (m/min) | Rotation Speed (rps) | Inside Dose (mGy) |
|---|---|---|
| 2 | 1.7 | < 100 |

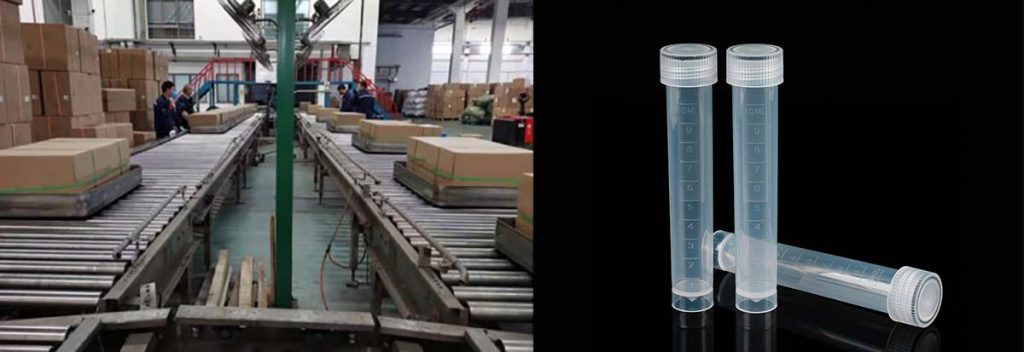

Precise control of conveyor speed ensures consistent dose delivery and maintains stability throughout the sterilization cycle. Operators monitor both beam energy and conveyor speed to achieve the required dose for eliminating harmful microorganisms and preserving product integrity.
Note: Adjusting beam energy and conveyor speed helps medical device manufacturers optimize the e beam sterilization process for different product types and packaging densities.
Product Density and Positioning
Product density and positioning influence dose distribution and stability during the e-beam sterilization. Dense products require higher beam energy for adequate penetration, while less dense items allow deeper electron penetration at lower energies.
| Average Density (g/cm³) | Penetration Depth (cm) |
|---|---|
| 0.1 – 0.2 | 40 – 75 |

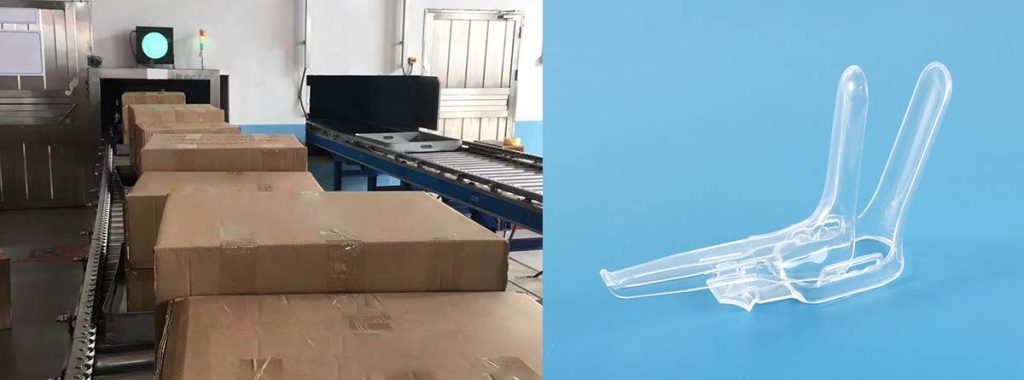

Operators must arrange products to maximize exposure and ensure uniform dose delivery. Proper packaging and consistent orientation help maintain stability and reproducibility across shipments.
| Best Practice | Description |
|---|---|
| Proper Packaging | Ensures products are protected and positioned for even exposure. |
| Correct Positioning | Arranges products to maximize exposure to the electron beam. |
| Dosimetry | Monitors and measures dose for consistency and effectiveness. |
| Appropriate Packaging | Allows acceptable dose distribution throughout the load. |
| Reproducibility | Maintains consistent product quantity, orientation, and placement. |
| Packaged Product | Uses sales units and shipper cartons for proper dose distribution. |
| Orientation and Placement | Ensures consistent orientation and placement for reproducibility. |
Operators use dosimetry systems to verify dose delivery and maintain stability in the e-beam sterilization. Consistent product positioning reduces the risk of under- or over-exposure, supporting regulatory compliance and product safety.
Advanced Electronics and Automation
Advanced electronics and automation systems enhance process control and stability in the e-beam sterilization. Robotics and automated material handling ensure precise routing and minimize human intervention, which preserves product integrity and reduces the risk of error.
| Evidence | Explanation |
|---|---|
| Robotics and automated material handling | Ensures precise routing and minimizes human intervention. |
| Reduced human error | Lowers the likelihood of mistakes, enhancing reliability. |
| Automated tracking and monitoring | Tracks products meticulously, streamlining inventory management. |
| Physical barriers in robotic work cells | Prevents cross-contamination and maintains regulatory compliance. |
Automated tracking and monitoring systems provide real-time feedback on dose delivery and product movement. These systems maintain stability by reducing variability and supporting consistent sterilization outcomes. Physical barriers in robotic work cells prevent cross-contamination, which is essential for regulatory compliance and safety.
Regulatory agencies evaluate process control in electron beam sterilization by focusing on minimum and maximum dose, induced radioactivity, and performance qualification.
| Key Areas of Focus | Description |
|---|---|
| Minimum Dose | Ensures the sterilization dose is adequate for efficacy. |
| Maximum Dose | Assesses product functionality post-sterilization. |
| Induced Radioactivity | Evaluates product safety concerning radiation exposure. |
| Performance Qualification | Validates routine processing to maintain quality. |
Risk assessments help facilities determine the impact of process changes on product quality and stability. Standards such as ANSI/AAMI/ISO 14971:2019 guide these assessments, ensuring that the e beam sterilization process remains effective and compliant.
Tip: Automation and advanced electronics support stability, reduce human error, and help maintain consistent dose delivery in the e-beam sterilization.
Electron Beam Radiation Dose Management
Dose Measurement Methods
Accurate measurement of dose is essential for electron beam sterilization. Medical device manufacturers rely on several methods to determine electron beam radiation dose. Ionization chambers serve as the gold standard for reference dosimetry. These devices provide real-time readings and offer high precision, although users must apply correction factors to convert charge readings into absorbed dose values. Film dosimeters change color when exposed to radiation doses, giving a visual map of dose distribution. Thermoluminescent dosimeters (TLDs) store radiation information and release it as light when heated, allowing for detailed analysis.
Operators also use electronic dosimeters to measure dose levels with electronic components. Energy monitoring devices, optimized with Monte Carlo simulations, track energy variations continuously. This continuous monitoring helps maintain dose accuracy during electron beam sterilization. Electron energy can be assessed using electron activation methods and depth dose curves in water, which are crucial for industrial settings.
| Method Used | Measurement Results | Safety Assessment |
|---|---|---|
| TLD-100™ rod-type dosimeters | 0.015 to 0.295 µSv/h | Below control limit of 0.5 µSv/h |
| RadEye™ B20-ER survey meter | Organ doses 0.01 to 0.08 mSv | Below annual dose limit of 1 mSv |
Tip: Placing dosimeters with sterilization items ensures precise dose readings and protects sensitive materials from excessive radiation doses.
Calibration and Validation
Routine calibration and validation protocols guarantee the reliability of dose delivery. Operators calibrate electron beam accelerators and dosimetry systems regularly to maintain dose accuracy within ±5%. Dosimetry involves measuring absorbed dose using devices like alanine, ceric-cerous sulfate, and radiochromic film. Validation follows recognized standards such as ISO 11137, confirming that the sterilization process meets safety and efficacy requirements.
| Calibration Protocols | Description |
|---|---|
| Dosimetry | Measurement of absorbed dose using various dosimeters. |
| Calibration | Regular calibration of equipment and dosimetry systems. |
| Validation | Process validation according to ISO 11137 and other standards. |
Operators perform periodic revalidations and document bioburden testing results to ensure process consistency. Monitoring activities continue throughout production, with dose audits conducted quarterly or more frequently. These audits include bioburden determination and verification dose experiments. If quarterly audits and bioburden results remain stable, annual testing may suffice.
| Frequency of Validation Procedures | Description |
|---|---|
| Quarterly (or more frequent) | Monitoring samples for bioburden and dose verification. |
| Once every twelve months | Allowed if quarterly audits and bioburden results are stable. |
| With every manufacturing run | Required for products manufactured less frequently. |
Statistical methods such as ANOVA and tolerance limits help analyze dose maps and process variability. These techniques support the establishment of process targets and qualification of sterilization processes. Consistent calibration and validation ensure that electron beam sterilization delivers the correct dose for effective sterilization and compliance.
Sterilization Quality and Optimization
Quality Assurance
Quality assurance in electron beam sterilization relies on a combination of monitoring techniques and process validation. Facilities use control charts to track process stability and establish control limits for dose delivery. Performance indices, based on processing parameters, allow for tighter control than standard dosimetry alone. Time-weighted control methods, such as CUSUM, help maintain consistent sterilization outcomes. Process parameter analysis ensures that product specifications are met, supporting parametric release.
| Quality Assurance Technique | Description |
|---|---|
| Control Charts | Demonstrate statistical control of the sterilization process, focusing on dose consistency. |
| Performance Index | Uses processing parameters for tighter control of dose and process outcomes. |
| Time-Weighted Control (CUSUM) | Maintains ongoing control of the sterilization process. |
| Process Parameter Analysis | Confirms that product specifications and dose requirements are met. |
Process validation protocols further improve reliability. Employee education ensures that staff understand sterilization procedures and dose measurement. Regular calibration of dosimeters and equipment guarantees accurate dose delivery. Facilities monitor bioburden to confirm effective sterilization. Audits of radiation doses and preventive maintenance of equipment support ongoing compliance.
| Component | Description |
|---|---|
| Employee education | Staff training on sterilization and dose protocols. |
| Calibration of dosimeters and equipment | Accurate measurement of dose during sterilization. |
| Monitoring of bioburden | Tracks microbial load for effective sterilization. |
| Regular audits of radiation doses | Confirms dose levels meet sterilization standards. |
| Preventive maintenance and equipment qualification | Ensures equipment reliability for dose delivery. |
Note: Accurate dose distribution and compliance with global standards, such as ISO 11137:2017, are essential for consistent sterilization outcomes and product safety.
Continuous Improvement
Continuous improvement strategies help optimize electron beam sterilization equipment for safety and efficiency. Facilities enhance productivity by increasing throughput, which allows for faster processing of large volumes. Streamlined processes reduce operational costs and material requirements. Energy-efficient practices support compliance with environmental standards and sustainability goals.
| Strategy | Benefit |
|---|---|
| Enhancing productivity | Faster processing and higher throughput for large batches. |
| Reducing operational costs | Lower labor and material costs through process optimization. |
| Compliance with environmental standards | Energy efficiency reduces utility expenses and supports sustainability. |
Facilities can also adjust the sequence of testing to a parallel approach, which reduces validation time. Ongoing optimization shortens sterilization cycles and improves dose management. The interaction of radiation with microorganisms, including the generation of free radicals, increases the effectiveness of sterilization and safety for end users.
- Accurate dose management ensures reliable sterilization.
- Compliance with standards like ANSI/AAMI/ISO 14937:2009 supports process reliability.
- Electron beam sterilization offers unmatched speed and cost-effectiveness for high-volume production.
Tip: Regular review and optimization of dose delivery and process parameters lead to improved safety, efficiency, and regulatory readiness.
Conclusion
Precise control in electron beam sterilization depends on careful management of dose, process parameters, and validation. Facilities achieve compliance by monitoring critical factors such as beam current, energy, and conveyor speed. Regular review of these parameters supports ongoing safety and product quality.
| Critical Process Parameters | Importance in Compliance |
|---|---|
| Beam current | Ensures proper dosage of radiation for effective sterilization |
| Energy | Maintains the required energy levels for effective sterilization |
| Conveyor speed | Ensures consistent exposure time for all items being sterilized |
Facilities that follow best practices and review their processes regularly maintain high standards and improve outcomes.
FAQ
What Is the Standard Dose Range for Electron Beam Sterilization?
Most medical devices require a dose between 15 and 50 kGy. This range destroys microorganisms while protecting product integrity. Operators select the dose based on product type and regulatory standards.
How Do Facilities Measure the Electron Beam Dose?
Facilities use dosimeters such as ionization chambers, film dosimeters, and thermoluminescent dosimeters. These devices provide accurate readings and help maintain consistent dose delivery.
Why Is Conveyor Speed Important in the Sterilization Process?
Conveyor speed controls exposure time. Faster speeds reduce dose, while slower speeds increase it. Operators adjust speed to ensure every product receives the correct amount of radiation.
What Role Does Automation Play in Electron Beam Sterilization?
Automation improves process control and reduces human error. Robotics and automated tracking systems help maintain consistent dose delivery and support regulatory compliance.
How Often Should Facilities Validate the Sterilization Process?
Facilities perform quarterly dose audits and bioburden tests. If results remain stable, annual validation may be sufficient. Regular validation ensures safety and compliance.
Tip: Consistent validation supports reliable sterilization and regulatory readiness.
